Power Steering Pump Disassembled View (Regular)

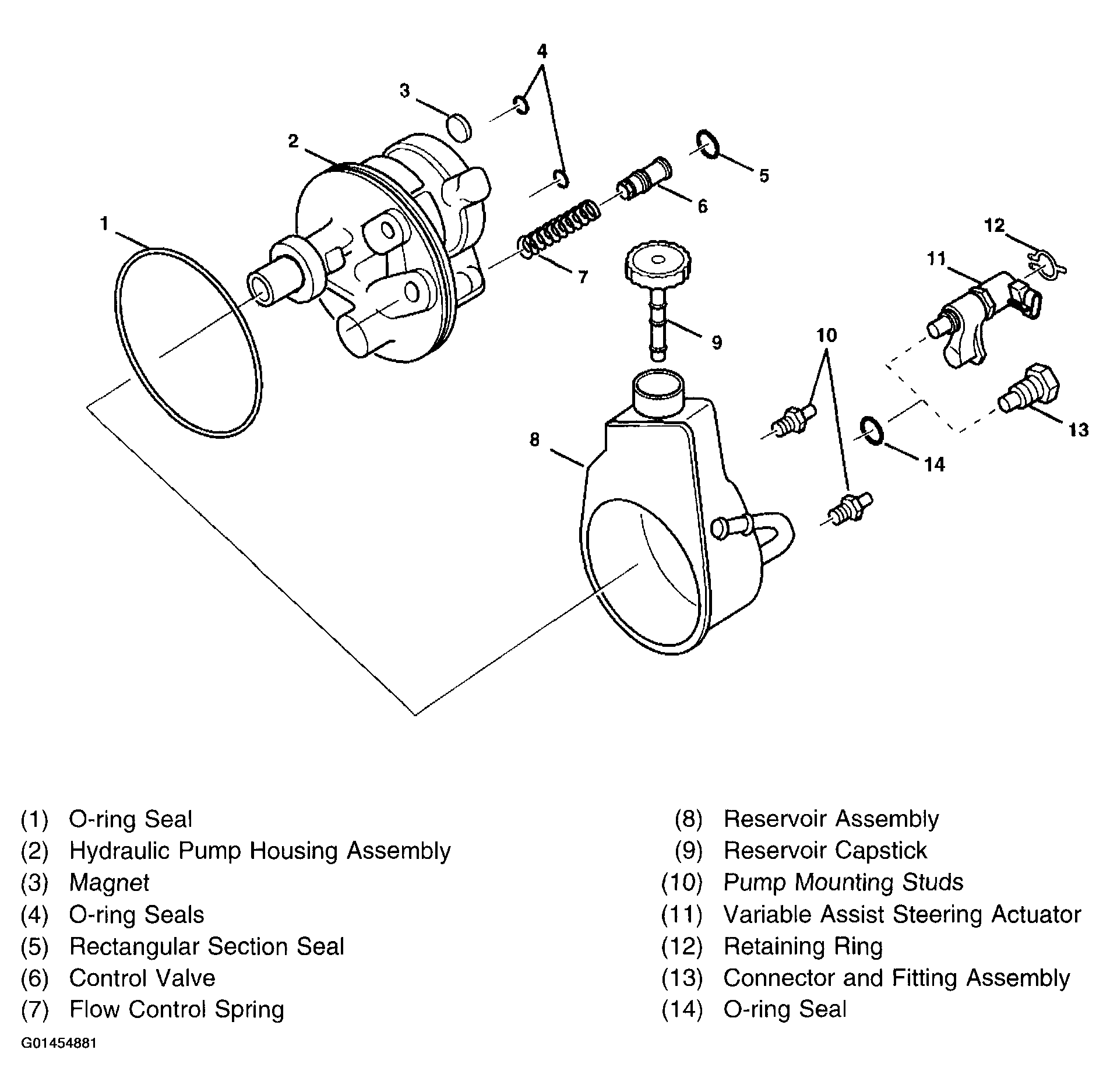

Fig 1: Exploded View Of Power Steering Pump Components (Regular)

G01454881

Courtesy of GENERAL MOTORS CORP.
