Power Steering Gear Disassembled View (700 Gear)

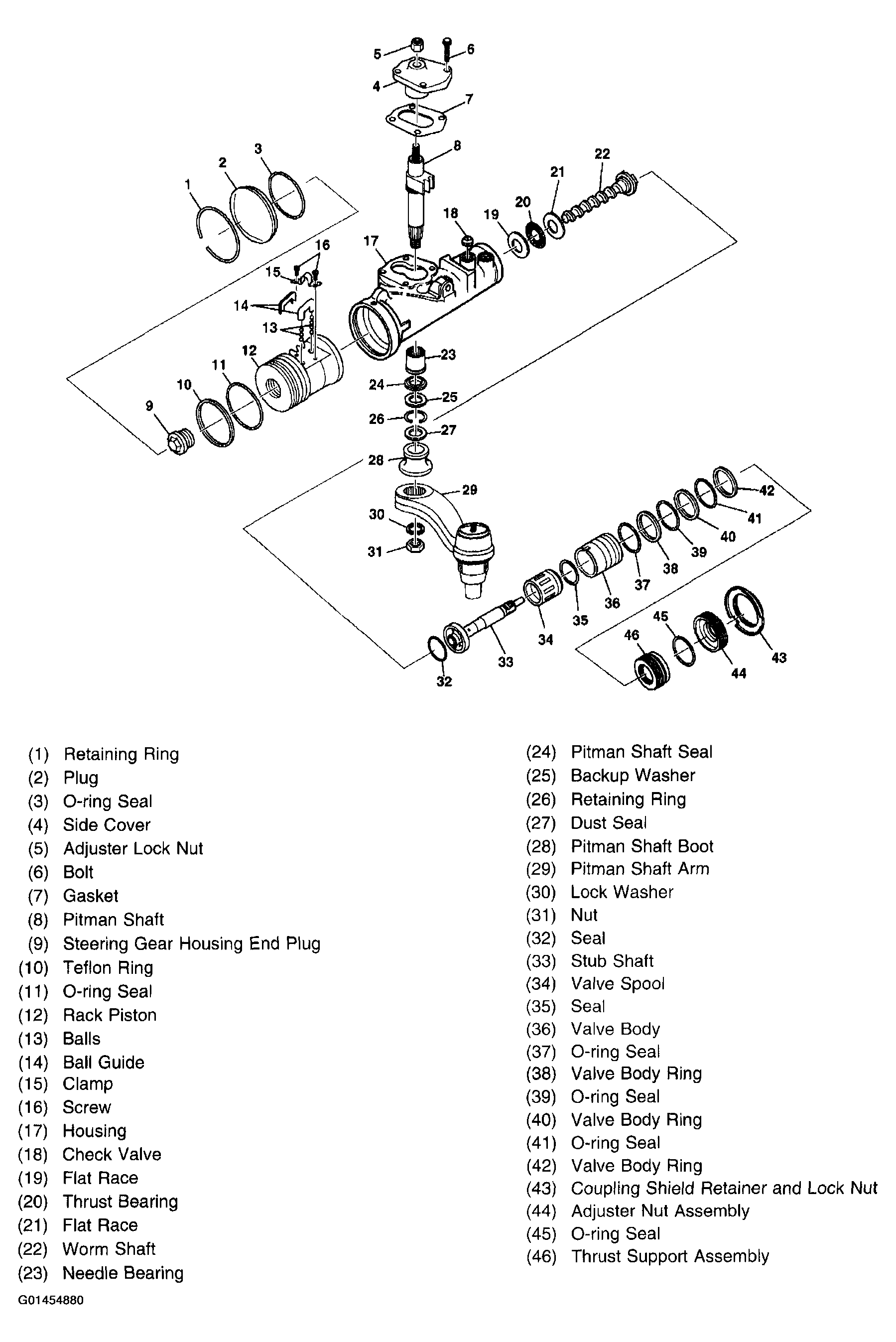

Fig 1: Exploded View Of Power Steering Gear Components (700 Gear)

G01454880

Courtesy of GENERAL MOTORS CORP.
