Traction Control Switch (w/JL4) Connector End View

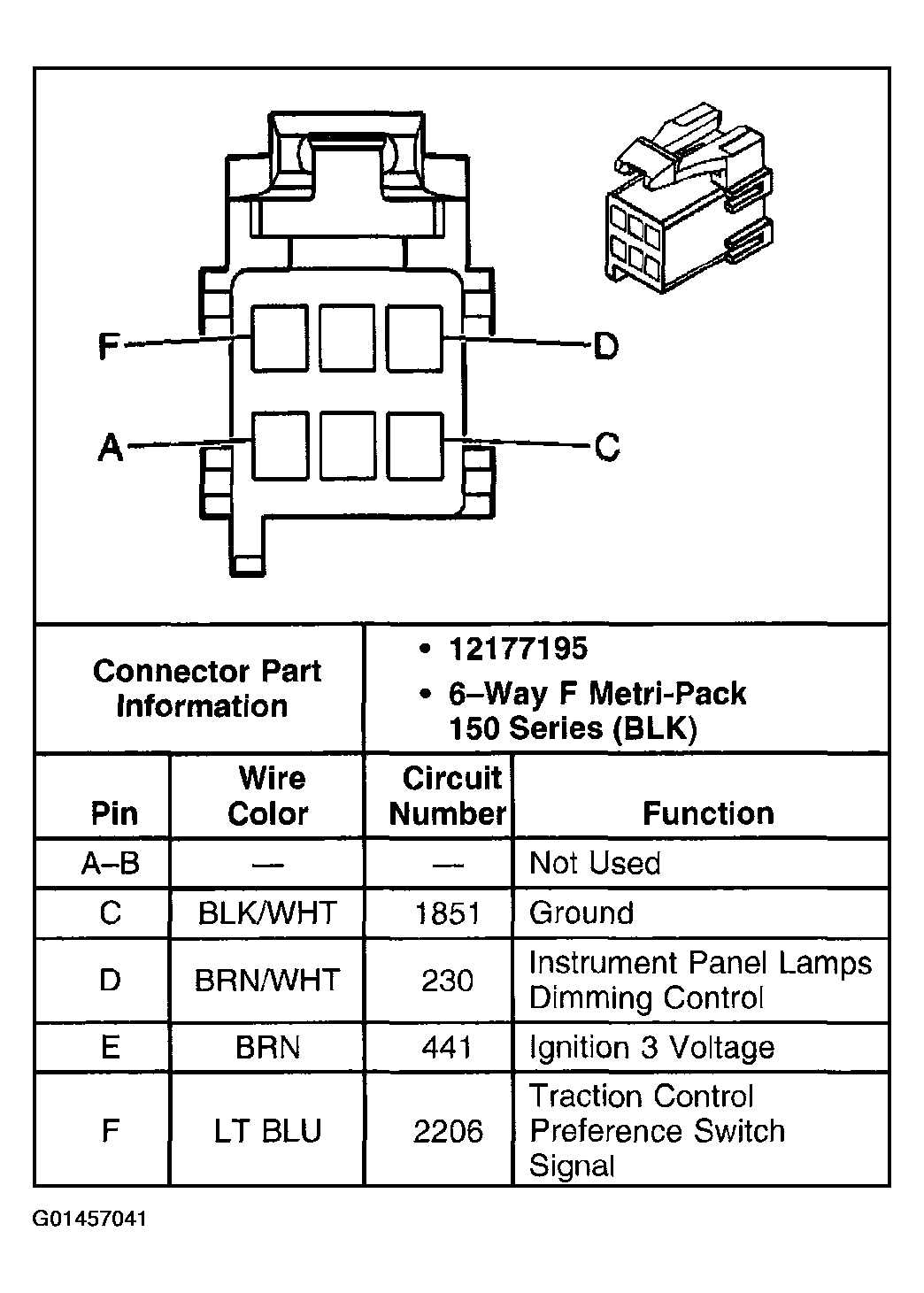

Fig 1: Traction Control Switch (w/JL4) Connector End View

G01457041

Courtesy of GENERAL MOTORS CORP.
