Remote Playback Device Connector End View - CD Player

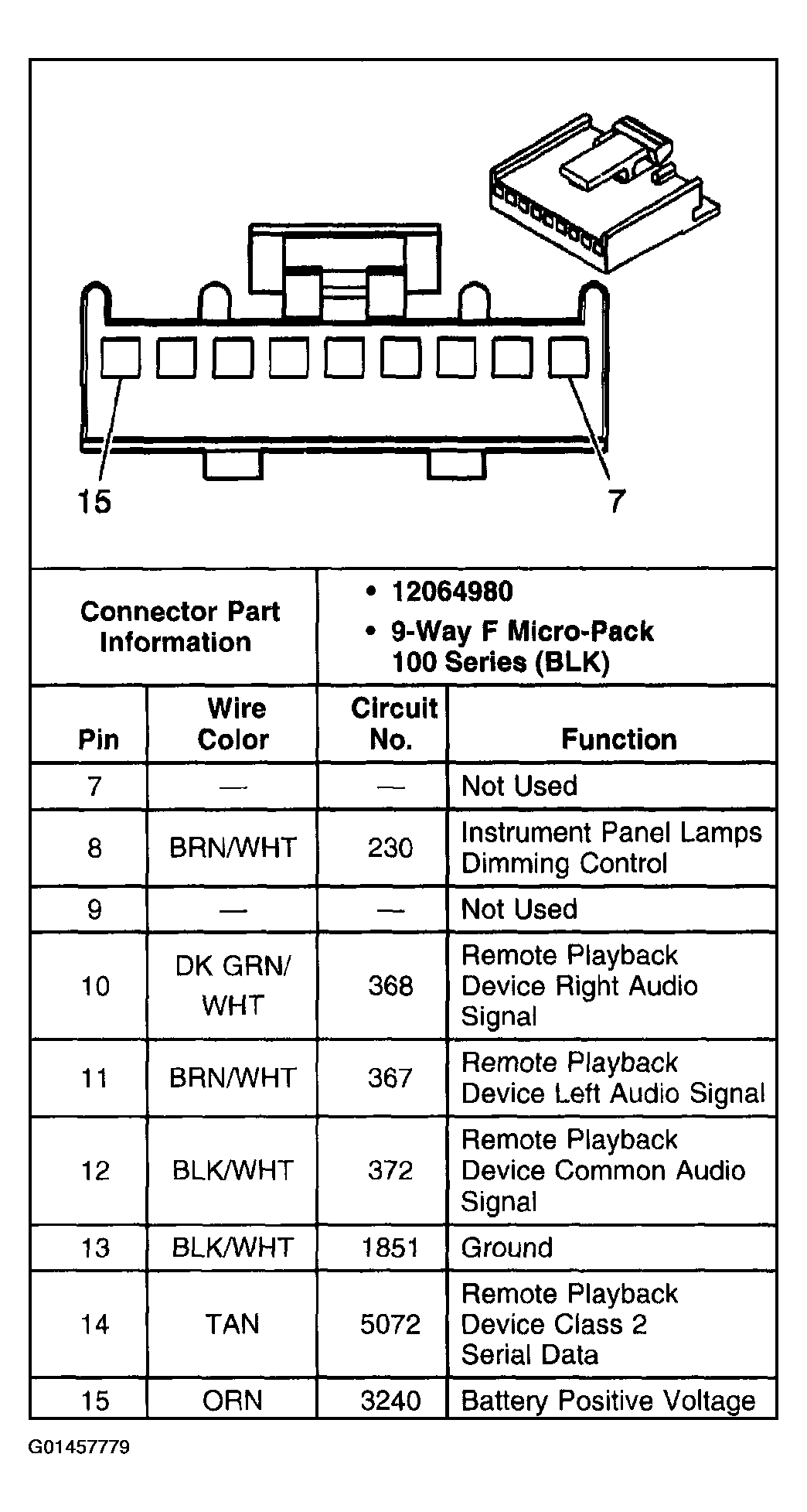

Fig 1: Remote Playback Device Connector End View - CD Player

G01457779

Courtesy of GENERAL MOTORS CORP.
