Rear Wheel Position Sensor Connector End View

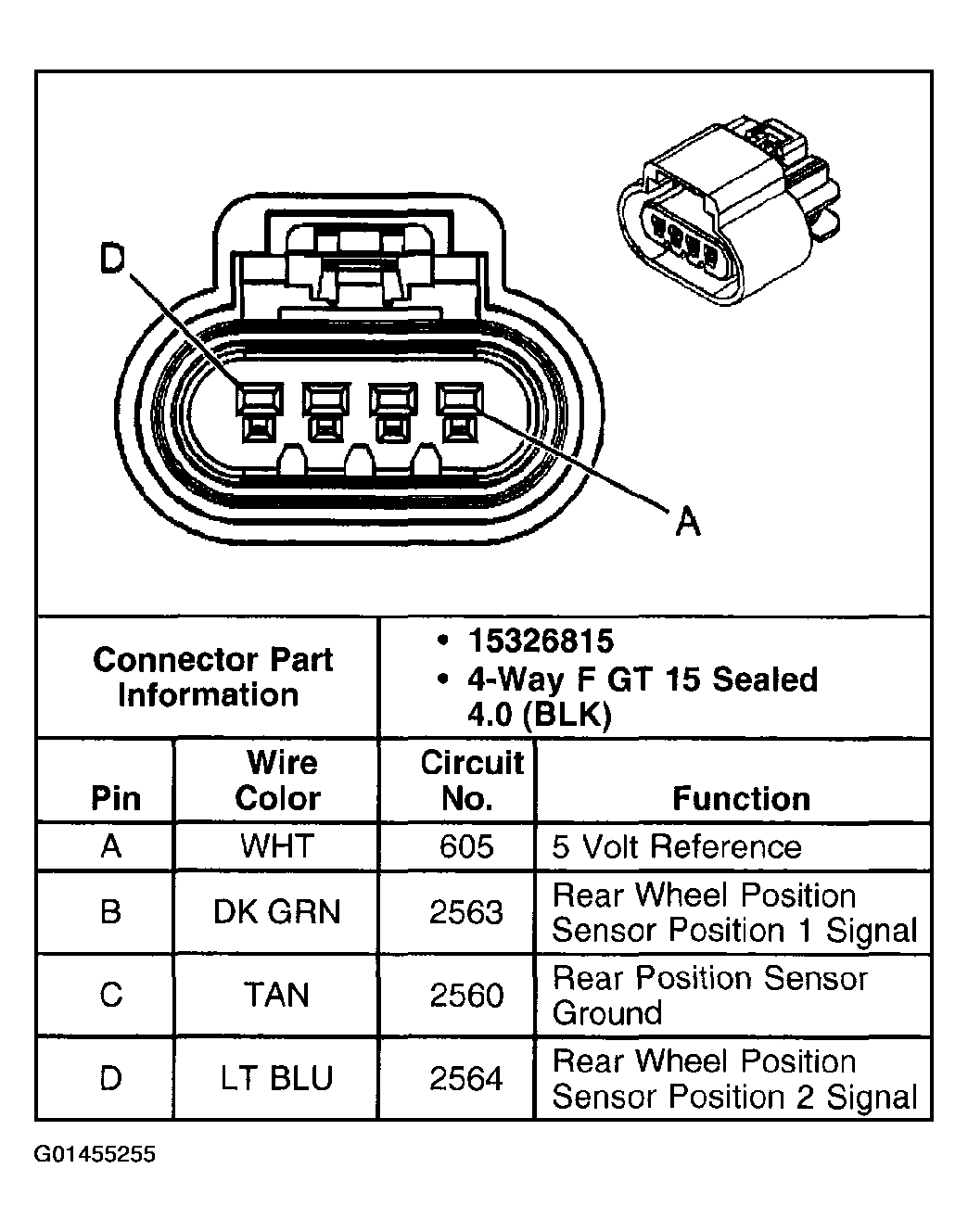

Fig 1: Rear Wheel Position Sensor Connector End View

G01455255

Courtesy of GENERAL MOTORS CORP.
