LR Suspension Position Sensor Connector End View

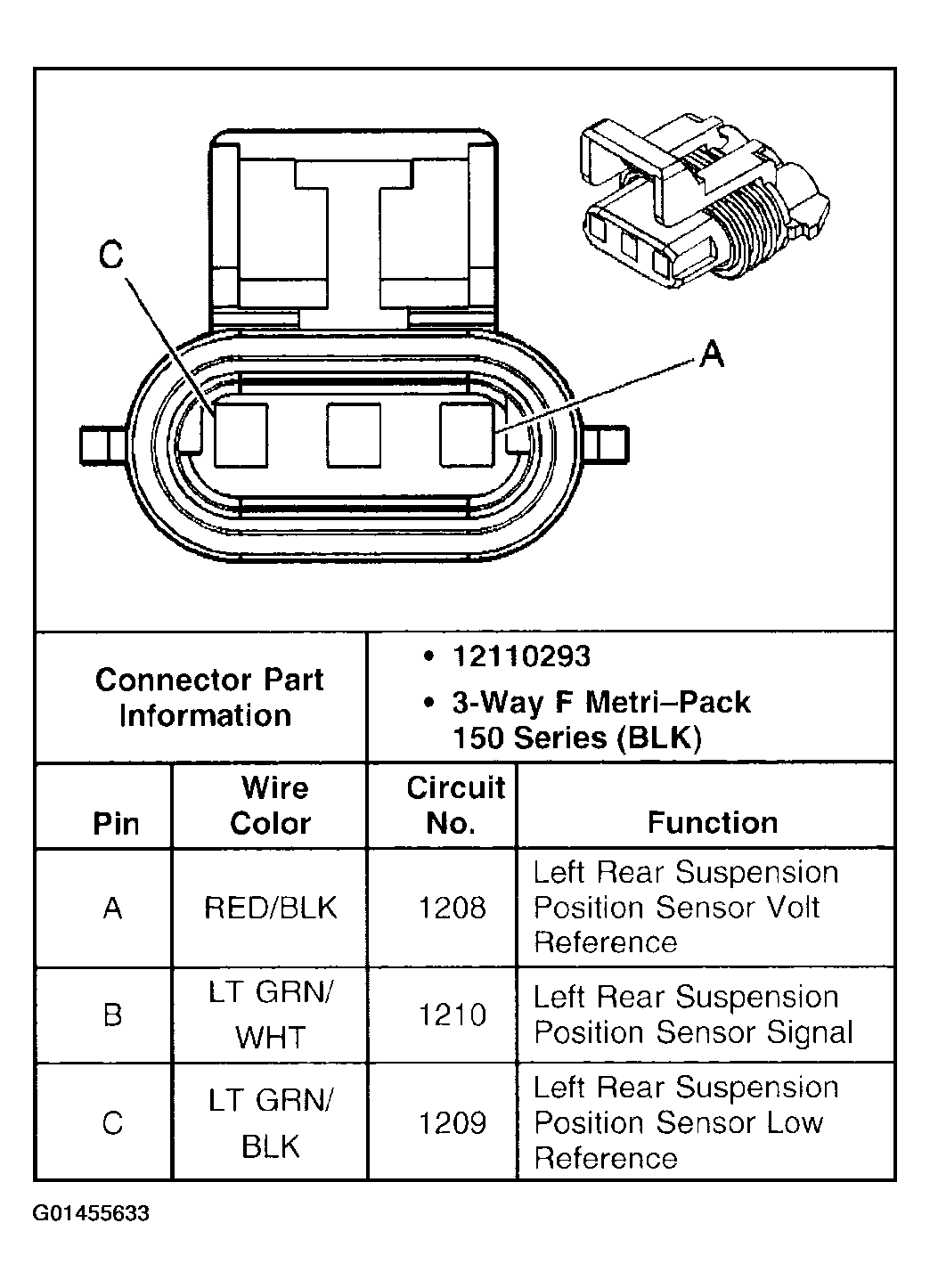

Fig 1: LR Suspension Position Sensor Connector End View

G01455633

Courtesy of GENERAL MOTORS CORP.
