LF Suspension Position Sensor Connector End View

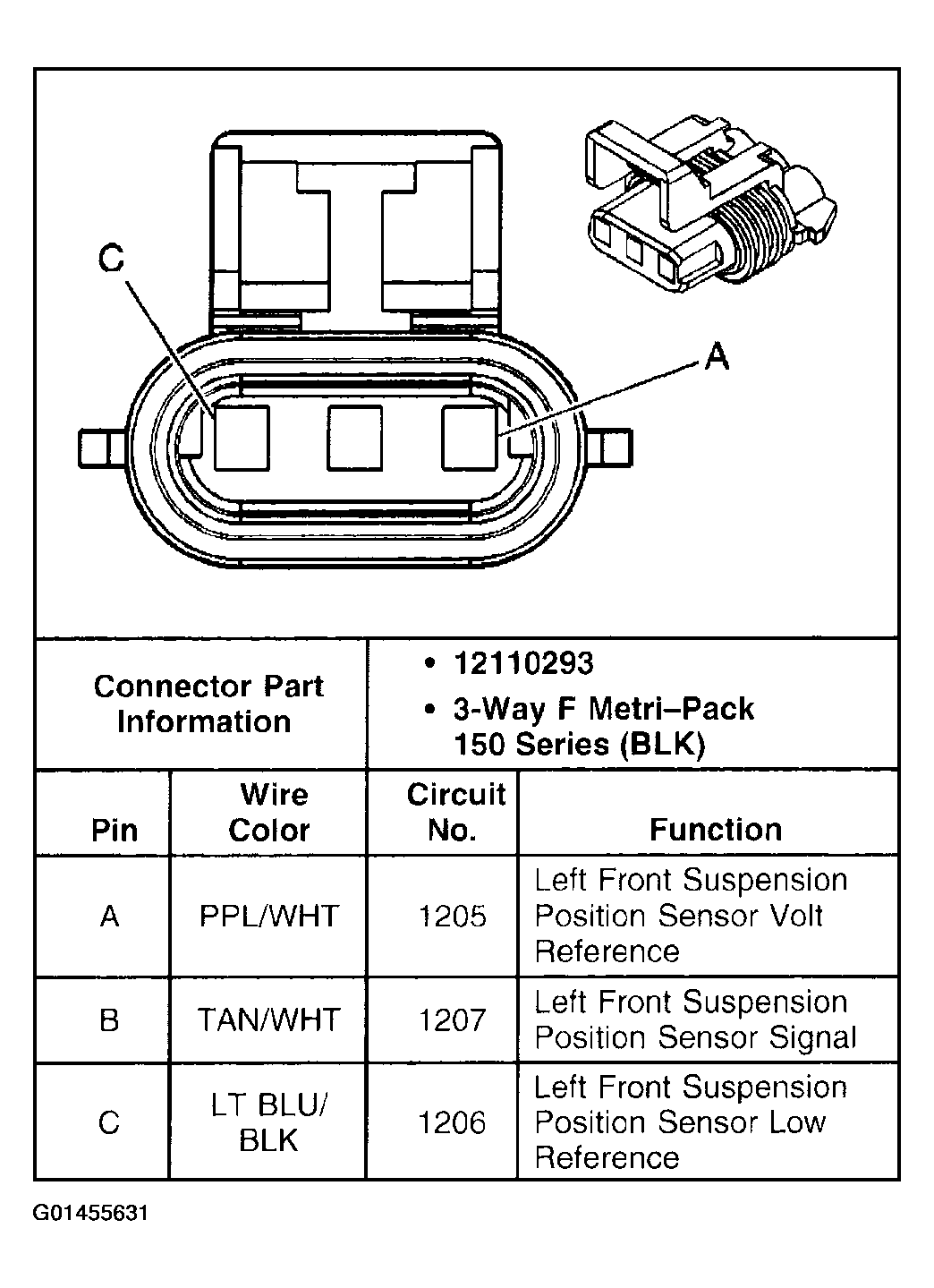

Fig 1: LF Suspension Position Sensor Connector End View

G01455631

Courtesy of GENERAL MOTORS CORP.
