Automatic Level Control Air Compressor Connector End View (2 Of 2)

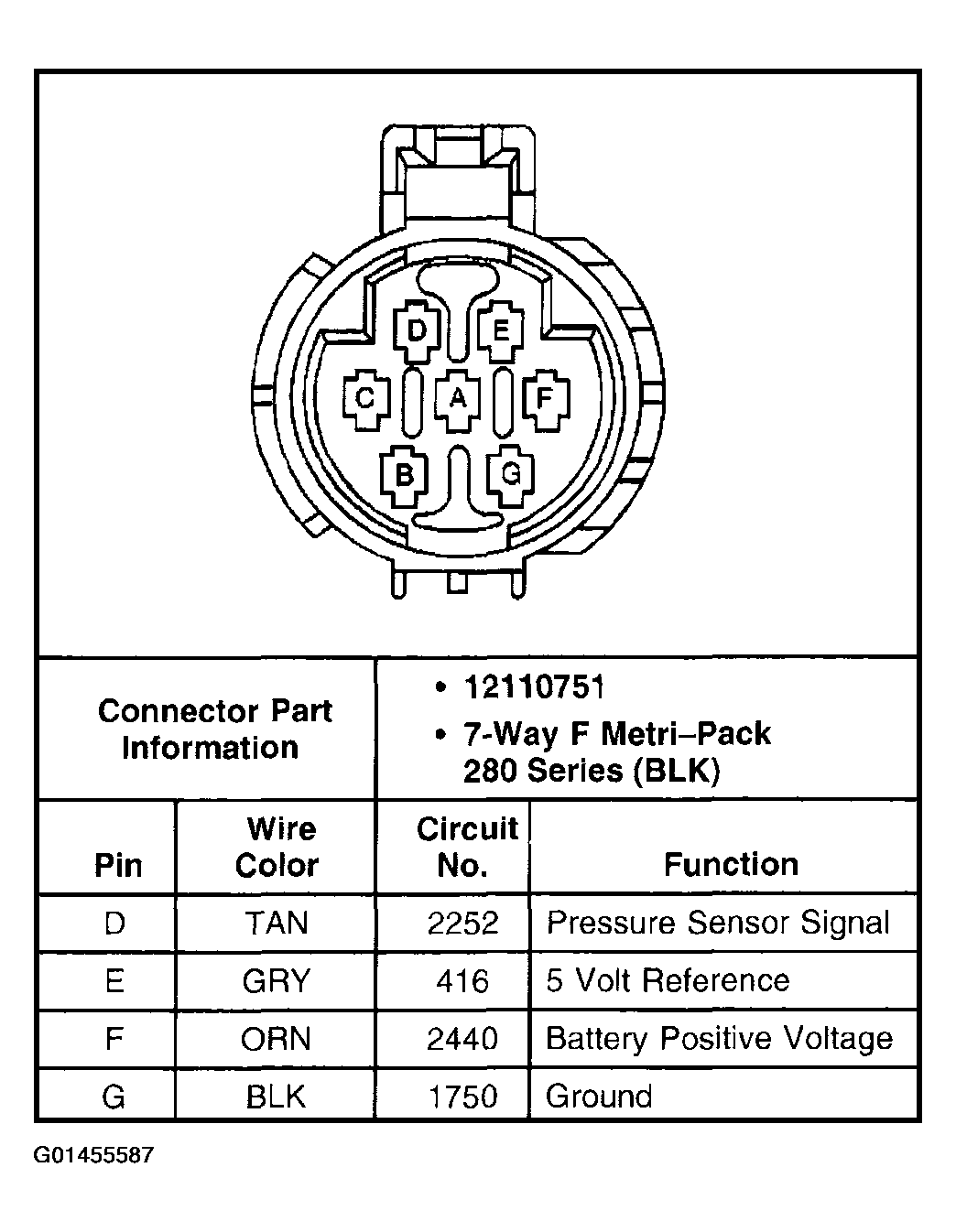

Fig 1: Automatic Level Control Air Compressor Connector End View (2 Of 2)

G01455587

Courtesy of GENERAL MOTORS CORP.
