Automatic Level Control Air Compressor Connector End View (1 Of 2)

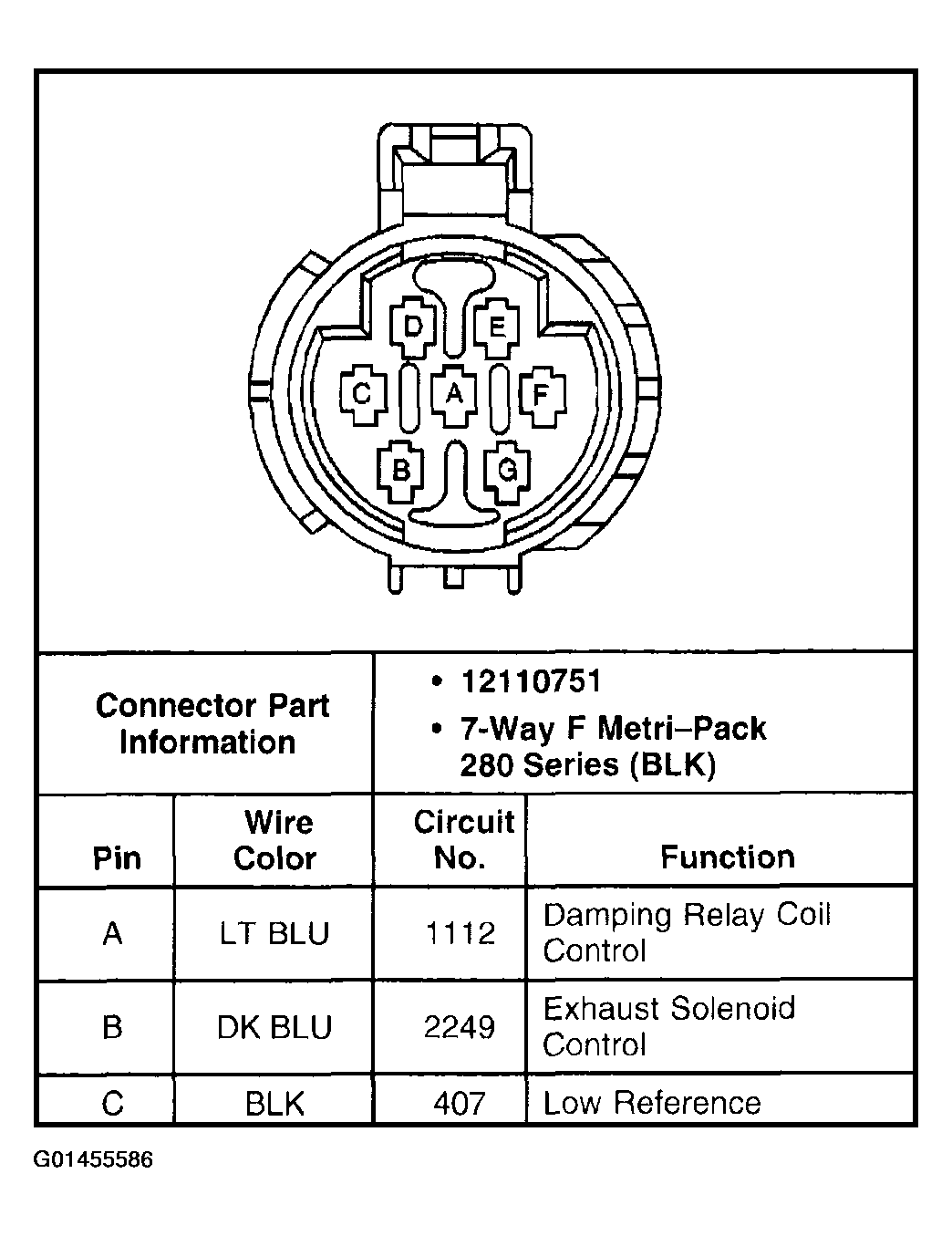

Fig 1: Automatic Level Control Air Compressor Connector End View (1 Of 2)

G01455586

Courtesy of GENERAL MOTORS CORP.
