Ambient Light Sensor Connector End View

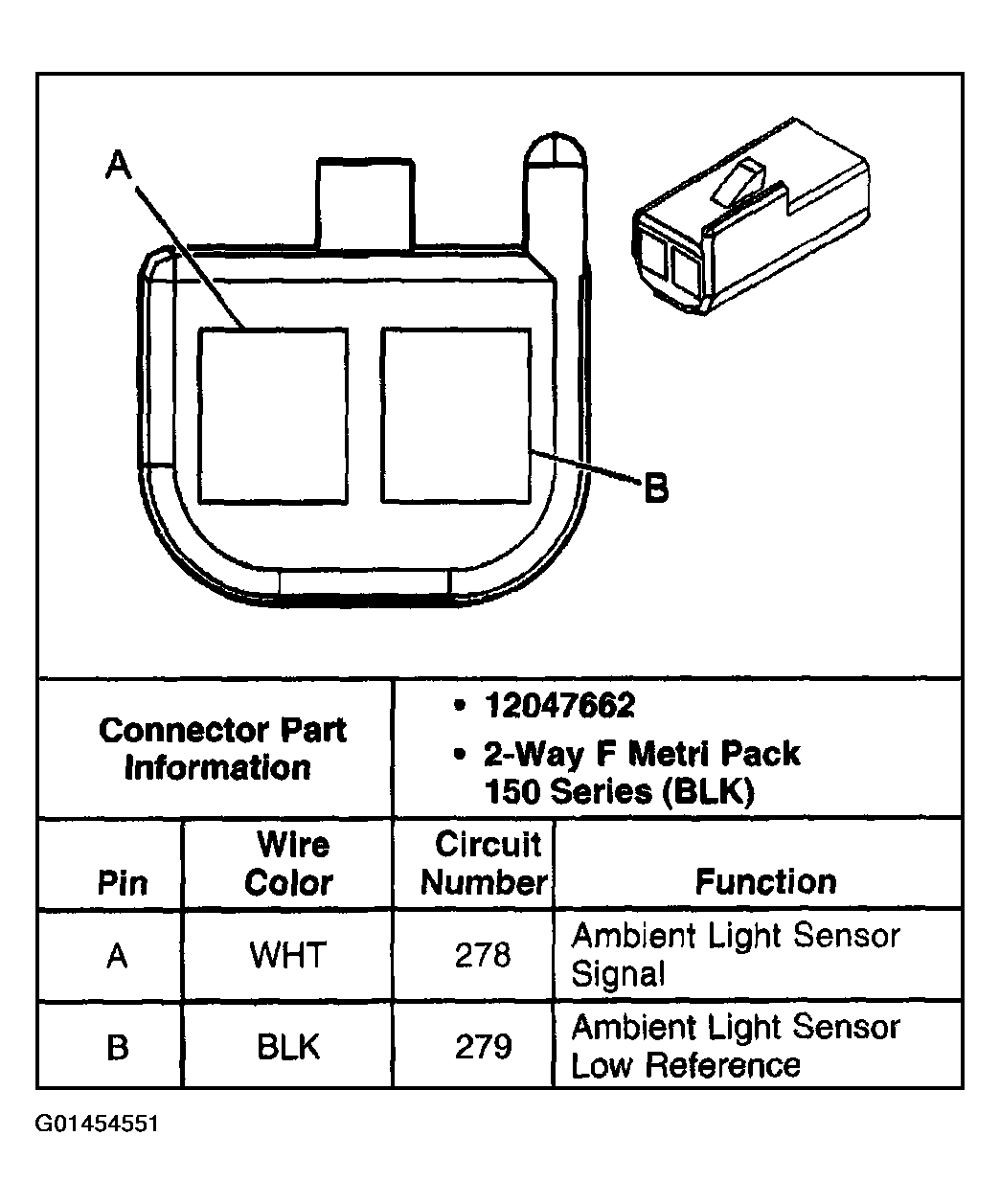

Fig 1: Ambient Light Sensor Connector End View

G01454551

Courtesy of GENERAL MOTORS CORP.
