Ambient Air Temperature Sensor Connector End View

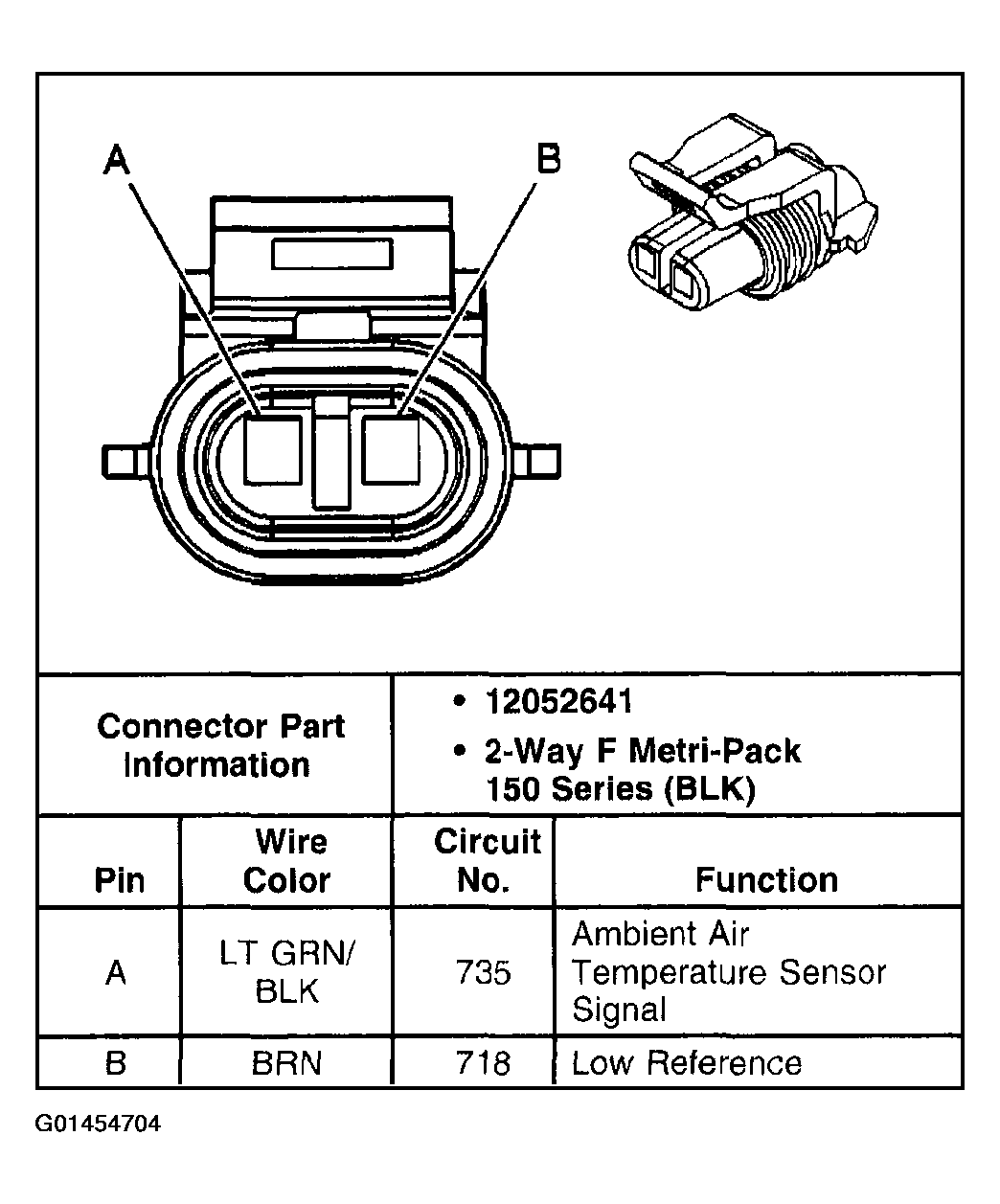

Fig 1: Ambient Air Temperature Sensor Connector End View

G01454704

Courtesy of GENERAL MOTORS CORP.
