Ignition Lock Cylinder Bulb Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

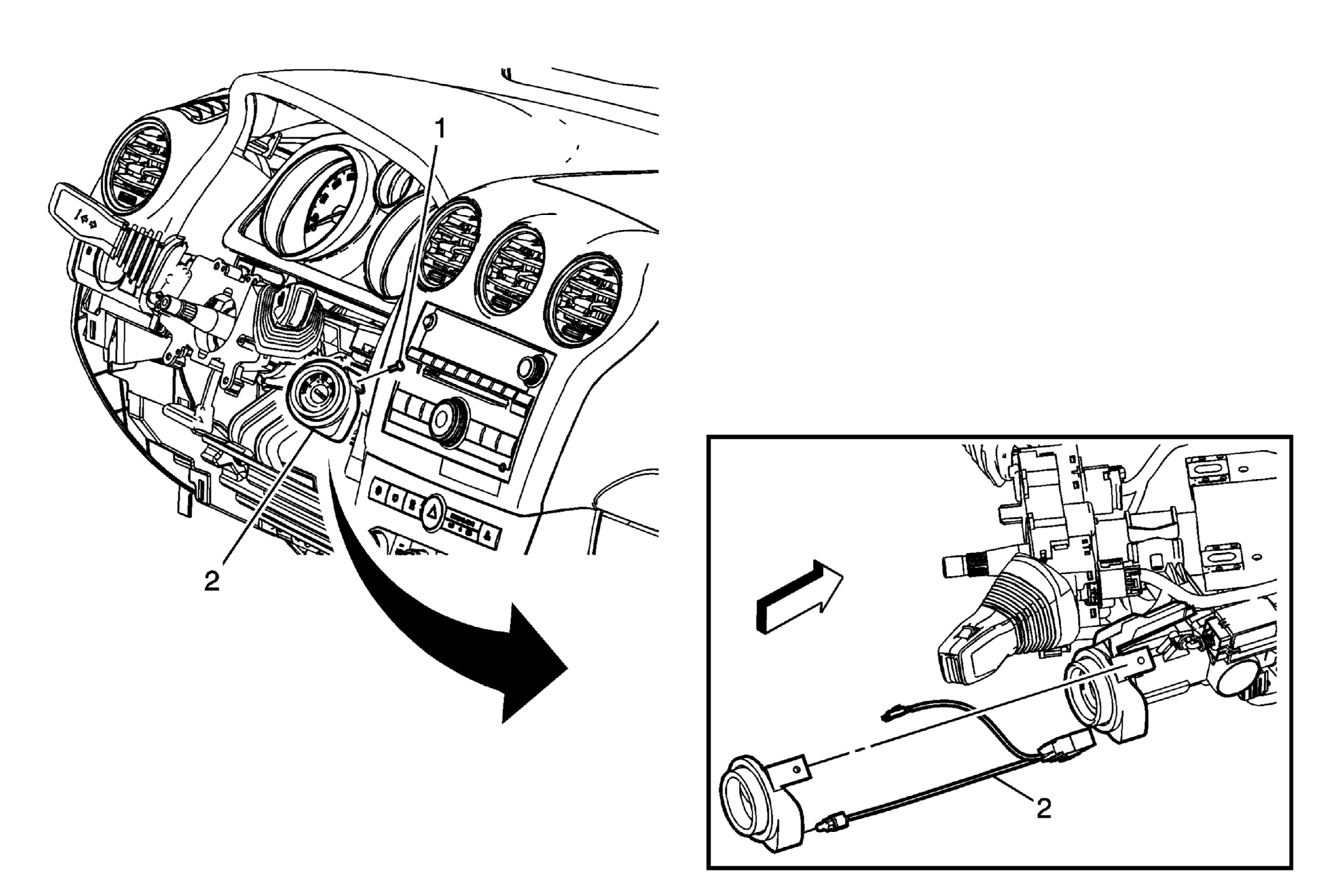

Fig 1: Ignition Lock Cylinder Bulb

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the steering column upper trim cover. Refer to Steering Column Upper Trim Cover Replacement .
1	Key Hole Lamp Retaining Screw CAUTION: Refer to Fastener Caution . Tighten: 2.5 N.m (22 lb ft)
2	Ignition Key Alarm Switch Assembly Procedure Disconnect the electrical connectors. Twist to release the key hole lamp bulb.

Callout

Component Name

Preliminary Procedure:
Remove the steering column upper trim cover. Refer to Steering Column Upper Trim Cover Replacement .

Key Hole Lamp Retaining Screw

CAUTION: Refer to Fastener Caution .

Tighten: 2.5 N.m (22 lb ft)

Ignition Key Alarm Switch Assembly

Procedure

Disconnect the electrical connectors.
Twist to release the key hole lamp bulb.
