Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument cluster bezel. Refer to INSTRUMENT PANEL CLUSTER (IPC) REPLACEMENT .
  2. Unsnap the switch from the housing.
  3. Disconnect the electrical connectors.

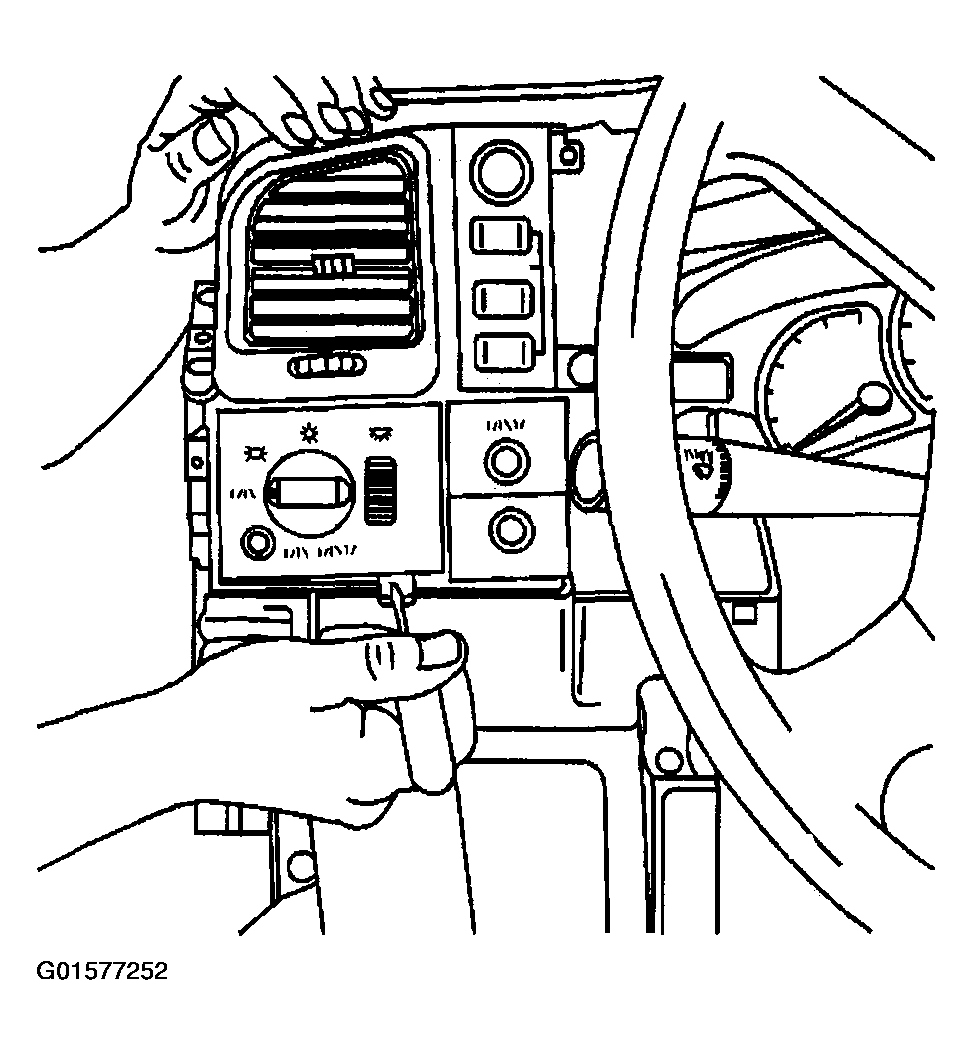

    Fig 1: Disconnecting Headlamp Switch Electrical Connectors
    G01577252Courtesy of GENERAL MOTORS CORP.
  4. Remove the switch.

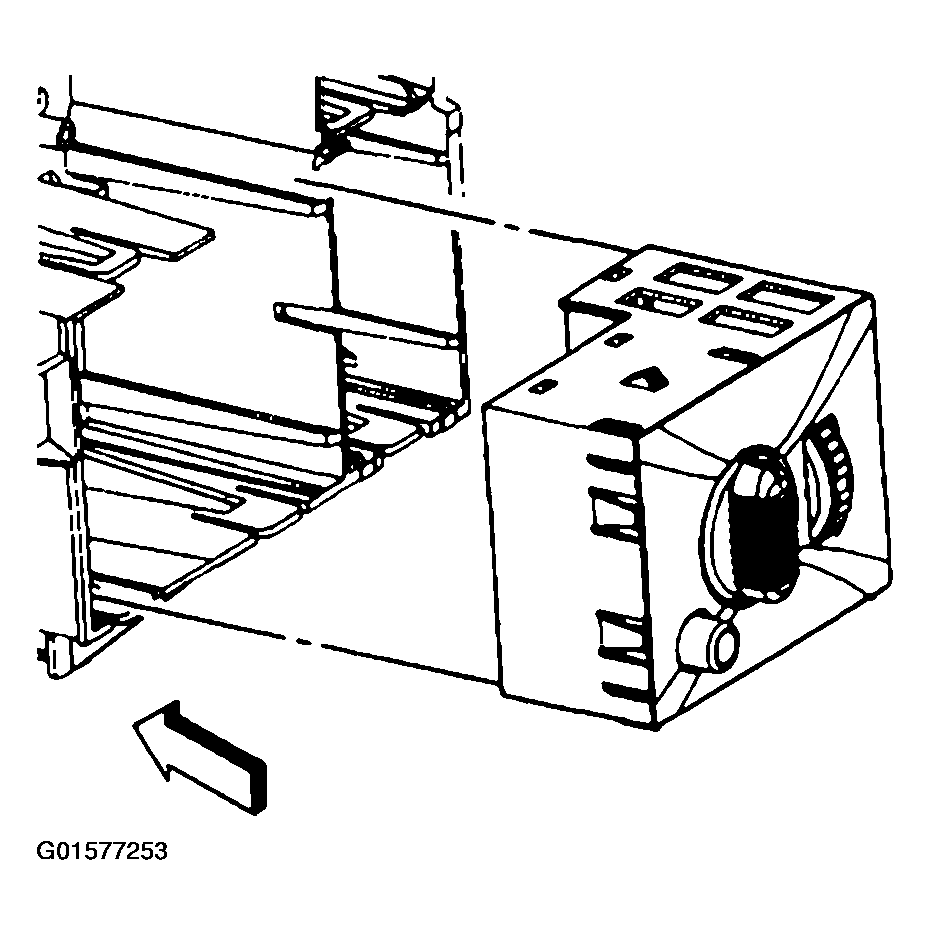

    Fig 2: Removing Headlamp Switch
    G01577253Courtesy of GENERAL MOTORS CORP.
