Installation Procedure

WARNING: This page is about a different car, the 2004 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

Install the radiator support brackets (2).

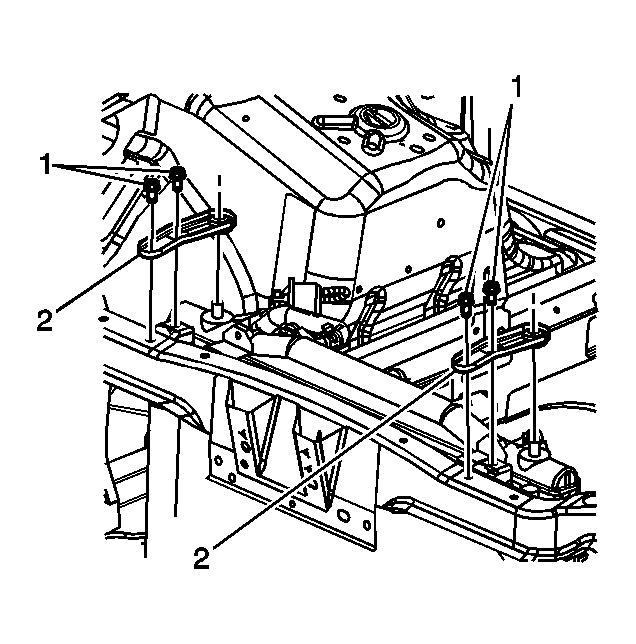

Fig 1: Locating Radiator Support Bolts

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the radiator support bolts (1).
Tighten: Tighten the bolts to 9 N.m (80 lb in).

Fig 2: View Of Condenser Seal

Courtesy of GENERAL MOTORS CORP.

Install the condenser seal.
