Rear Axle Disassembled Views
WARNING: This page is about a different car, the 2004 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

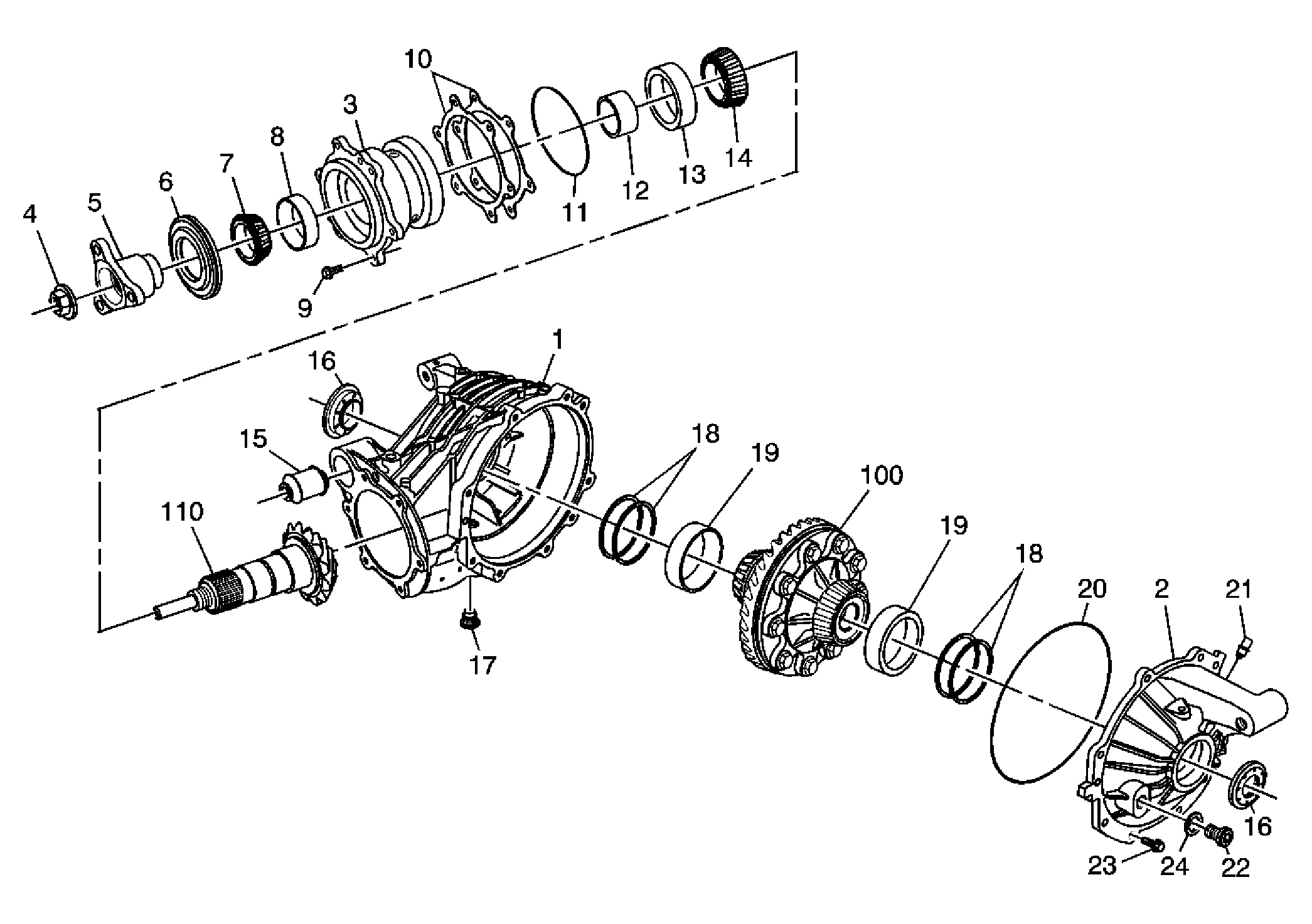

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Differential Carrier |
| 2 |
Carrier Cover |
| 3 |
Pinion Bearing Cage |
| 4 |
Nut |
| 5 |
Flange |
| 6 |
Pinion Oil Seal |
| 7 |
Bearing |
| 8 |
Cup |
| 9 |
Bolt |
| 10 |
Shim |
| 11 |
O-ring Seal |
| 12 |
Pinion Bearing Spacer |
| 13 |
Cup |
| 14 |
Bearing |
| 15 |
Support Bushing |
| 16 |
Axle Oil Seal |
| 16 |
Axle Oil Seal |
| 17 |
Drain Plug |
| 18 |
Shim |
| 18 |
Shim |
| 19 |
Cup |
| 19 |
Cup |
| 20 |
O-ring Seal |
| 21 |
Vent |
| 22 |
Fill Plug |
| 23 |
Bolt |
| 24 |
Fill Plug Washer |
| 100 |
Differential Assembly |
| 110 |
Pinion Gear |

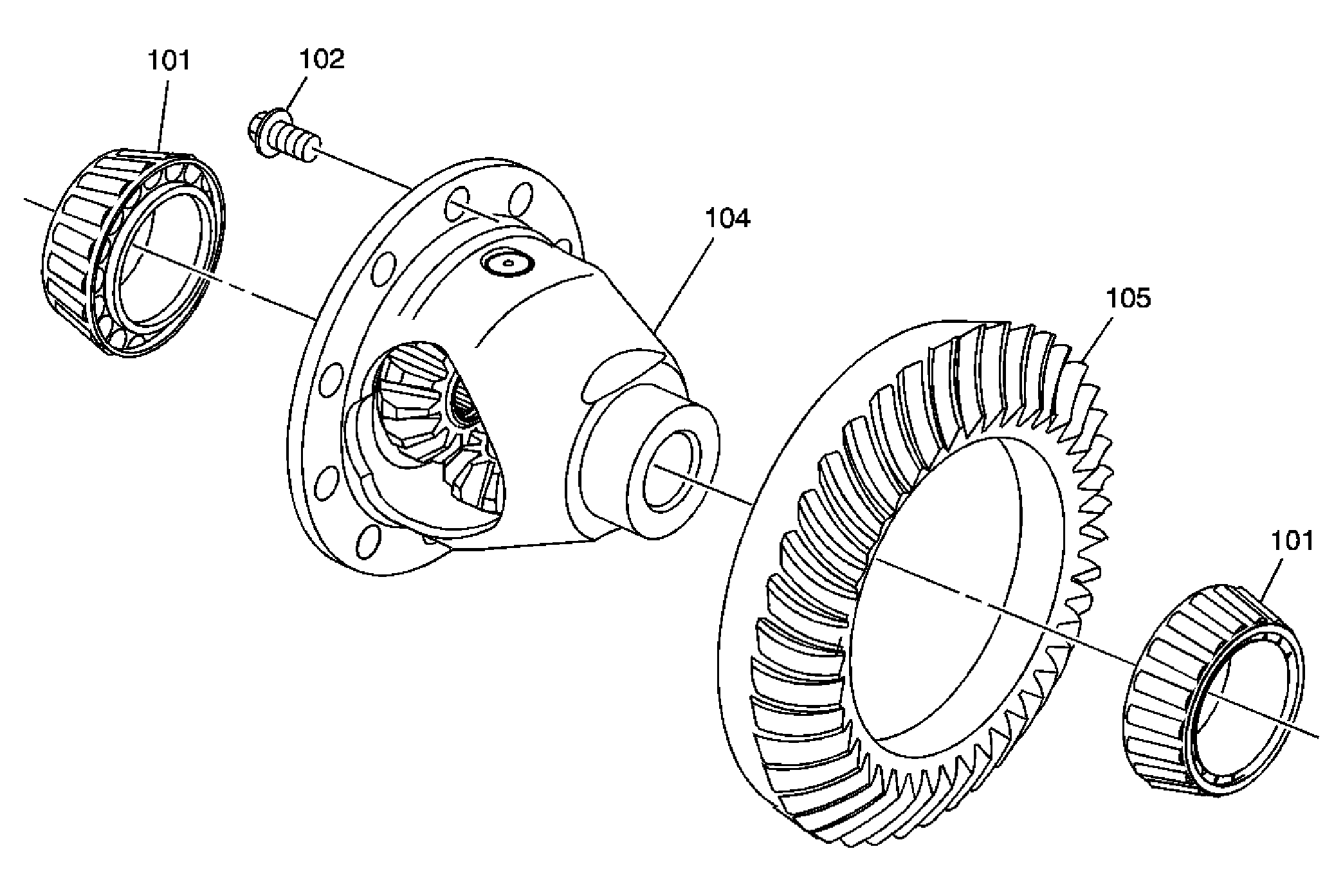

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 101 |
Bearing |
| 101 |
Bearing |
| 102 |
Bolt |
| 104 |
Differential Case |
| 105 |
Ring Gear |
