Removal Procedure

WARNING: This page is about a different car, the 2004 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
  2. Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
  3. Remove the brake rotor. Refer to Brake Rotor Replacement - Front in Disc Brakes.

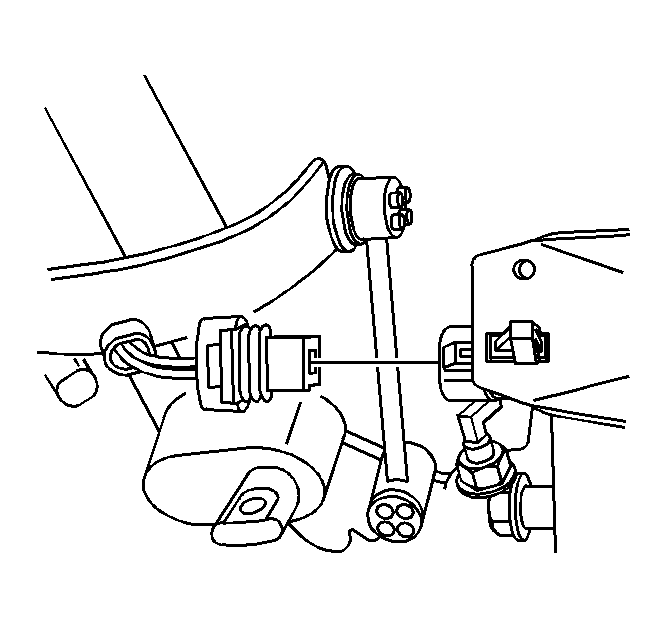

    4. Fig 1: Disconnecting ABS Electrical Connector
    GM750896Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the ABS electrical connector.
  5. Remove the electrical connector from the splash shield.

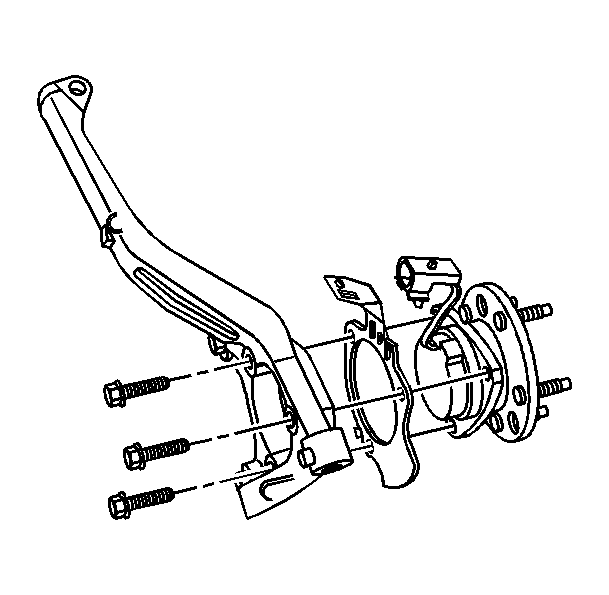

    6. Fig 2: Removing Wheel Bearing/Hub Mounting Bolts
    GM809008Courtesy of GENERAL MOTORS CORP.
  6. Remove the wheel bearing/hub mounting bolts.
  7. Remove the wheel bearing/hub.
