Installation Procedure

WARNING: This page is about a different car, the 2004 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

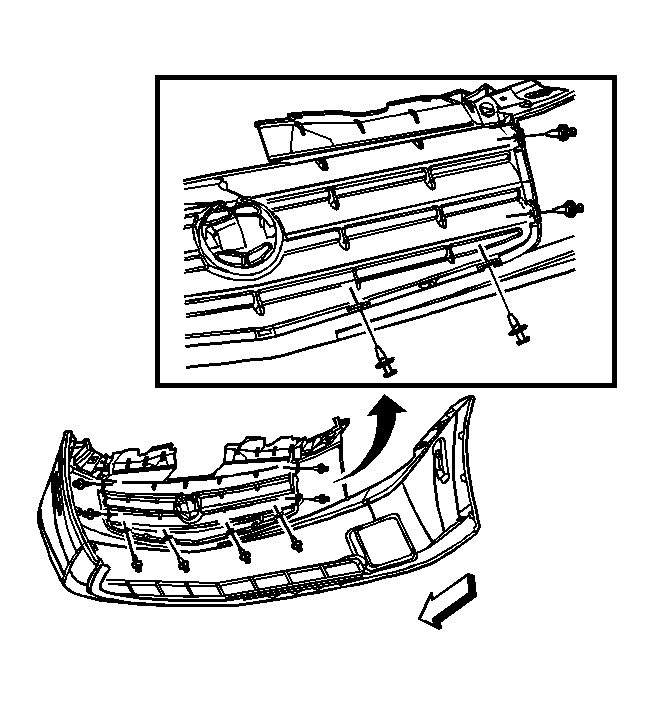

    Fig 1: Removing & Installing Grille
    GM802657Courtesy of GENERAL MOTORS CORP.
  1. Position the grille to the fascia.
  2. Install the push-in retainers that hold the grille to the fascia.
  3. Install the fascia to the vehicle. Refer to Fascia Replacement - Front Bumper in Bumpers.
