Engine Verification Label

WARNING: This page is about a different car, the 2004 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

The engine verification label is placed in two locations on the engine.

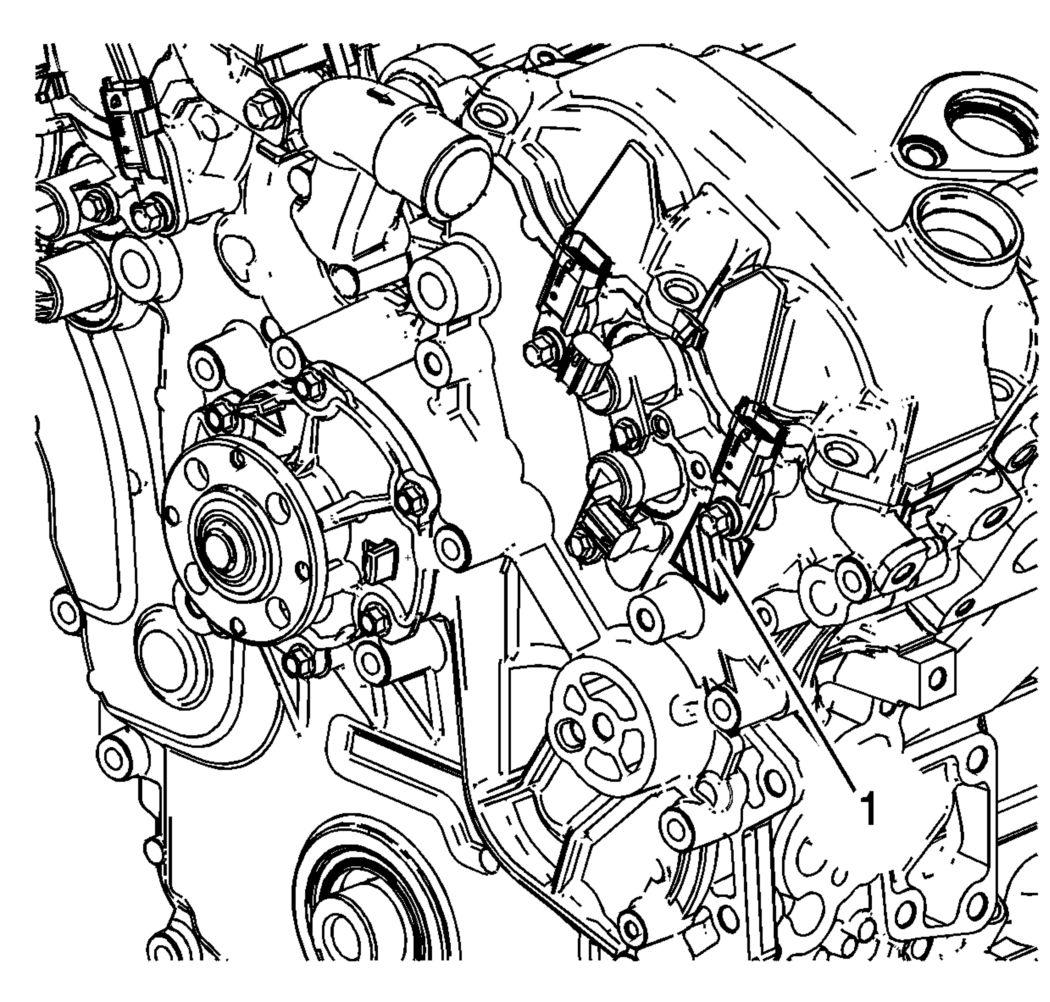

Fig 1: Engine Verification Label (Left Side)

Courtesy of GENERAL MOTORS CORP.

One label is located on the left side of the engine front cover below the exhaust camshaft position sensor.

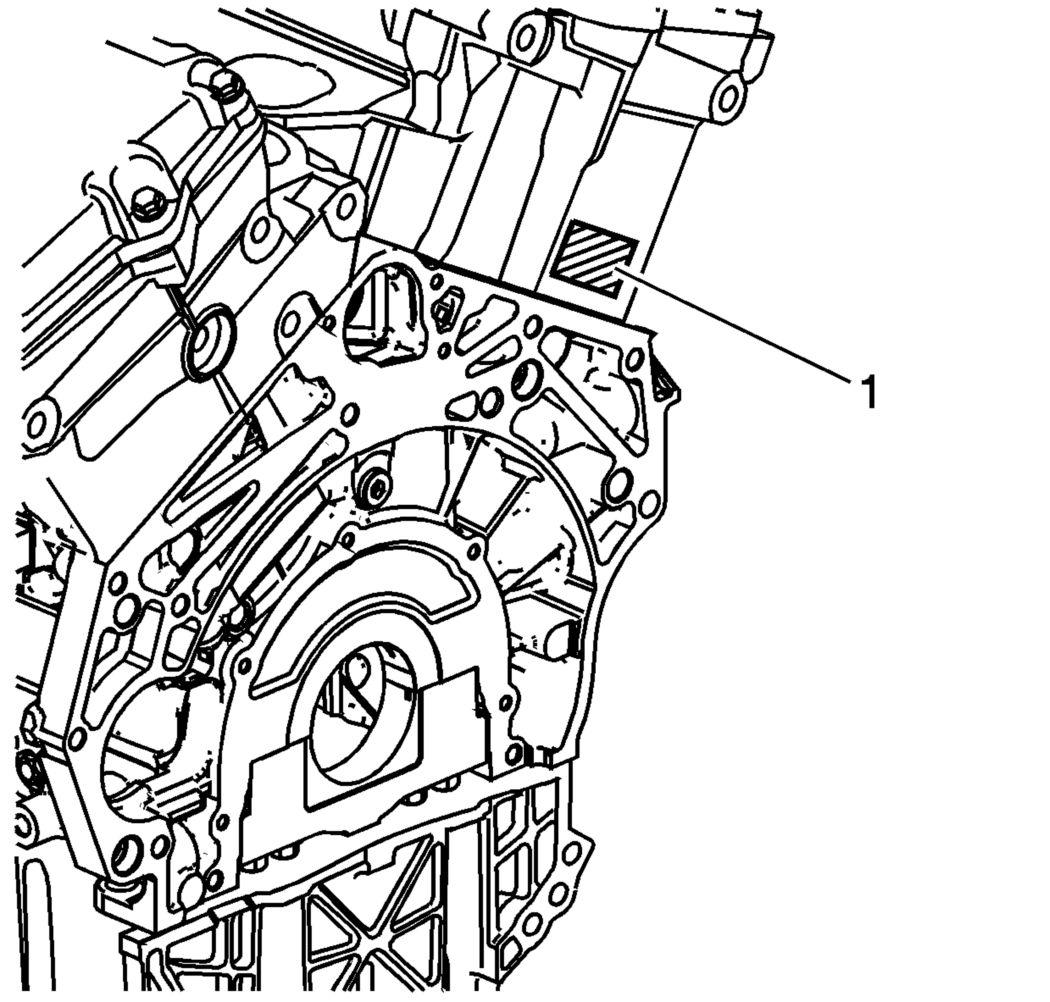

Fig 2: Engine Verification Label (Rear Of The Right Cylinder Head)

Courtesy of GENERAL MOTORS CORP.

Another label is located on the rear of the right cylinder head.
