Installation Procedure

WARNING: This page is about a different car, the 2004 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

Position the transmission drive links (4) to the pivot arms (3,5).

Fig 1: Transmission Drive Links And Pivot Arms
Courtesy of GENERAL MOTORS CORP.

Fig 2: Installing Wiper Transmission To Wiper Motor Crank Arm

Courtesy of GENERAL MOTORS CORP.

Install the drive links onto the wiper motor crank arm and the wiper transmission drive shafts with the J 39529 . See Special Tools and Equipment .

Fig 3: Wiper Transmission View

Courtesy of GENERAL MOTORS CORP.

Install the wiper motor module assembly Refer to Wiper Motor Module Replacement (LHD) or Wiper Motor Module Replacement (RHD) .

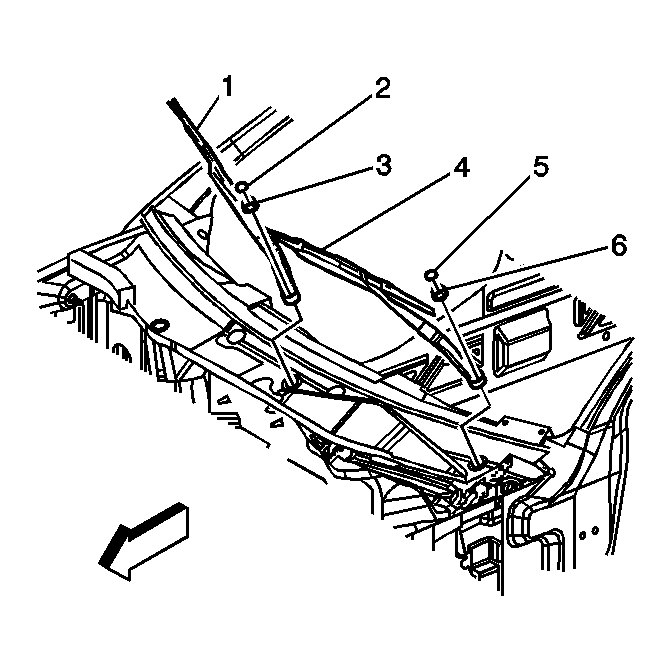

Fig 4: Removing & Installing Wiper Arms

Courtesy of GENERAL MOTORS CORP.

Install the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement (LHD) or Air Inlet Grille Panel Replacement (RHD) in Body Front End.
Install the wiper arms (1,4). Refer to Wiper Arm Replacement (LHD) or Wiper Arm Replacement (RHD) .
Operate the wipers and check for proper operation.
