Installation Procedure

WARNING: This page is about a different car, the 2004 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Identifying Washer Solvent Container
    GM777928Courtesy of GENERAL MOTORS CORP.
  1. Lubricate the washer pump intake nozzle with washer solvent to aid in the installation of the washer pump (7) into the washer container.
  2. Secure the washer pump in the washer solvent container.
  3. Ensure the washer pump is secure to the washer solvent container.
  4. Connect the electrical connector (4) to the washer pump.
  5. Connect the washer hose (8) to the washer pump.

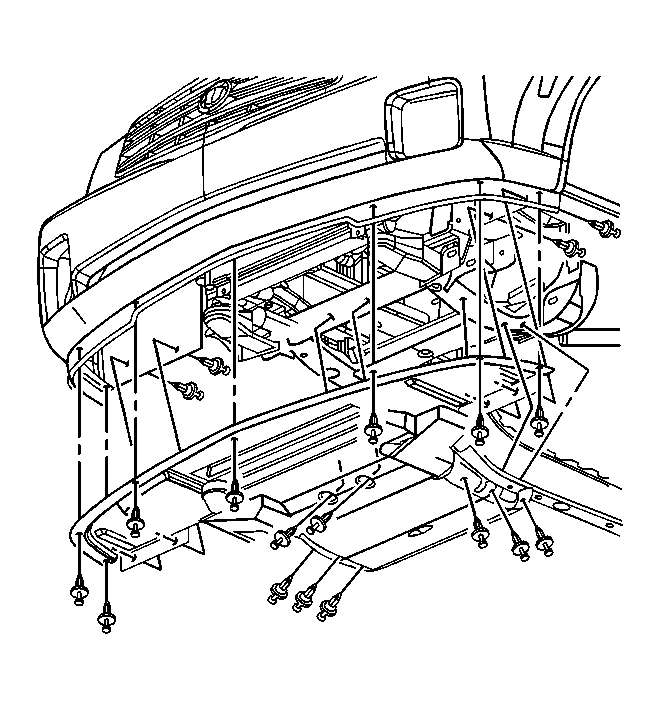

    6. Fig 2: Removing/Installing Lower Air Deflector
    GM738140Courtesy of GENERAL MOTORS CORP.
  6. Install the lower air deflector. Refer to Air Deflector Replacement - Front in Body Front End.
  7. Open the hood.
  8. Fill the washer solvent container with new washer solvent.
  9. Verify operation of the pump.
  10. Close the hood.
