Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

Position the battery tray (1) to the vehicle, locating the alignment datums (2) with the holes in the inner fender.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the battery tray bolts to the following:
- The inner fender panel
- The shock tower
- The lower air inlet panel assembly
  Tighten

  Tighten the battery tray bolts to 6 N.m (53 lb in).

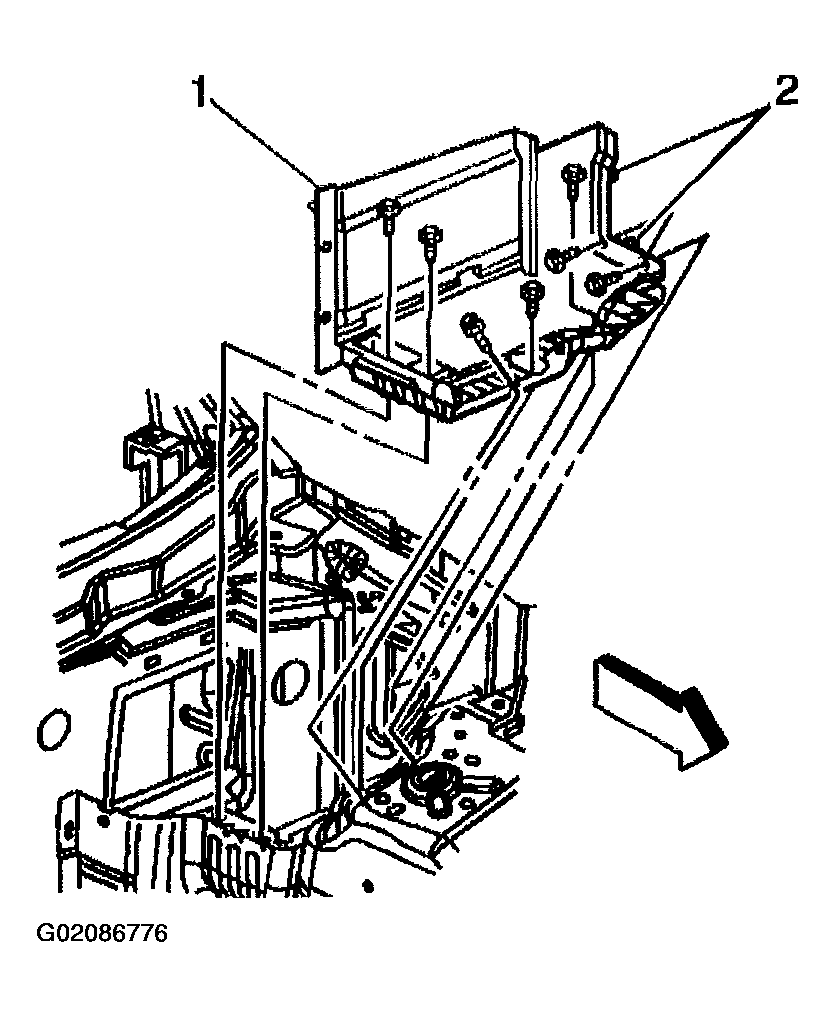

  Fig 1: Installing Battery Tray Bolts
  Courtesy of GENERAL MOTORS CORP.
Install the 2 bolts securing the front air inlet panel assembly to the battery tray.
Tighten

Tighten the front air inlet panel assembly bolts to 6 N.m (53 lb in).

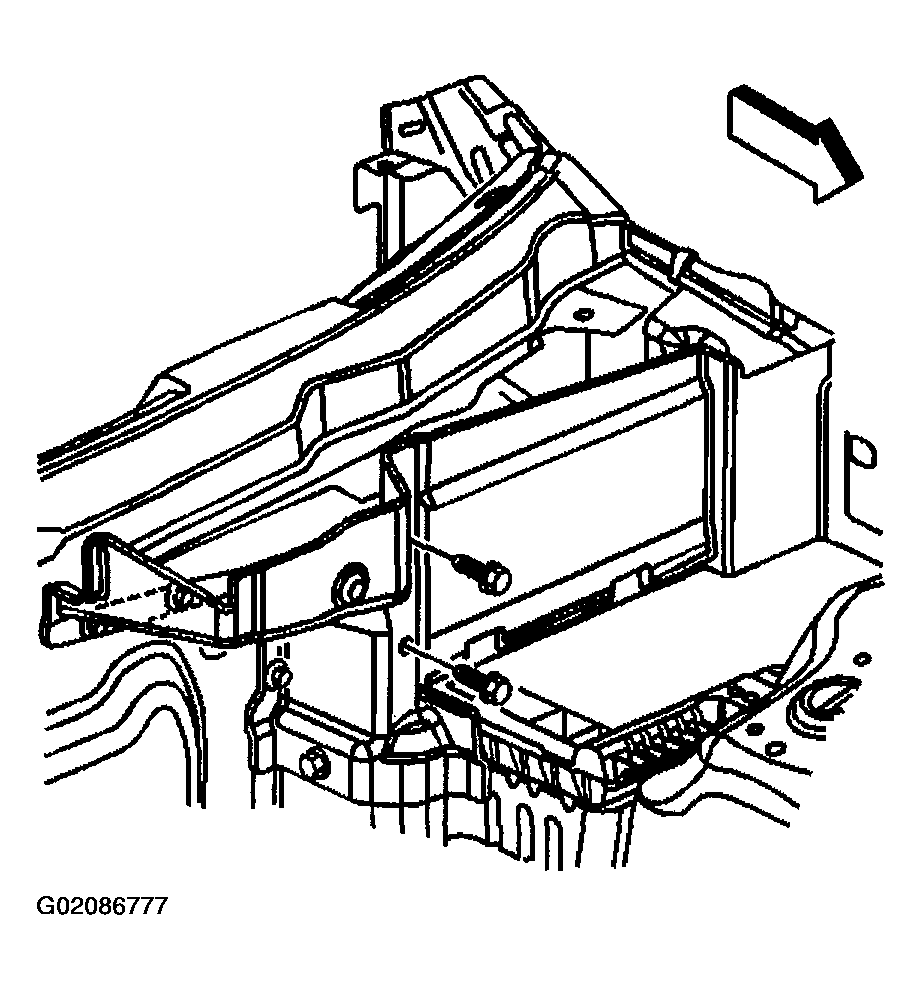

Fig 2: Installing Bolts Securing Front Air Inlet Panel Assembly To Battery Tray
Courtesy of GENERAL MOTORS CORP.
Install the left air inlet grill panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT (LHD) or AIR INLET GRILLE PANEL REPLACEMENT (RHD) in Body Front End.
Install the battery. Refer to BATTERY REPLACEMENT (LHD) or BATTERY REPLACEMENT (RHD) .
