Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the battery heat shield. Refer to BATTERY HEAT SHIELD REPLACEMENT  .
  2. Install the battery into the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the battery retainer and bolt.

    Tighten

    Tighten the battery retainer bolt to 25 N.m (18 lb ft).

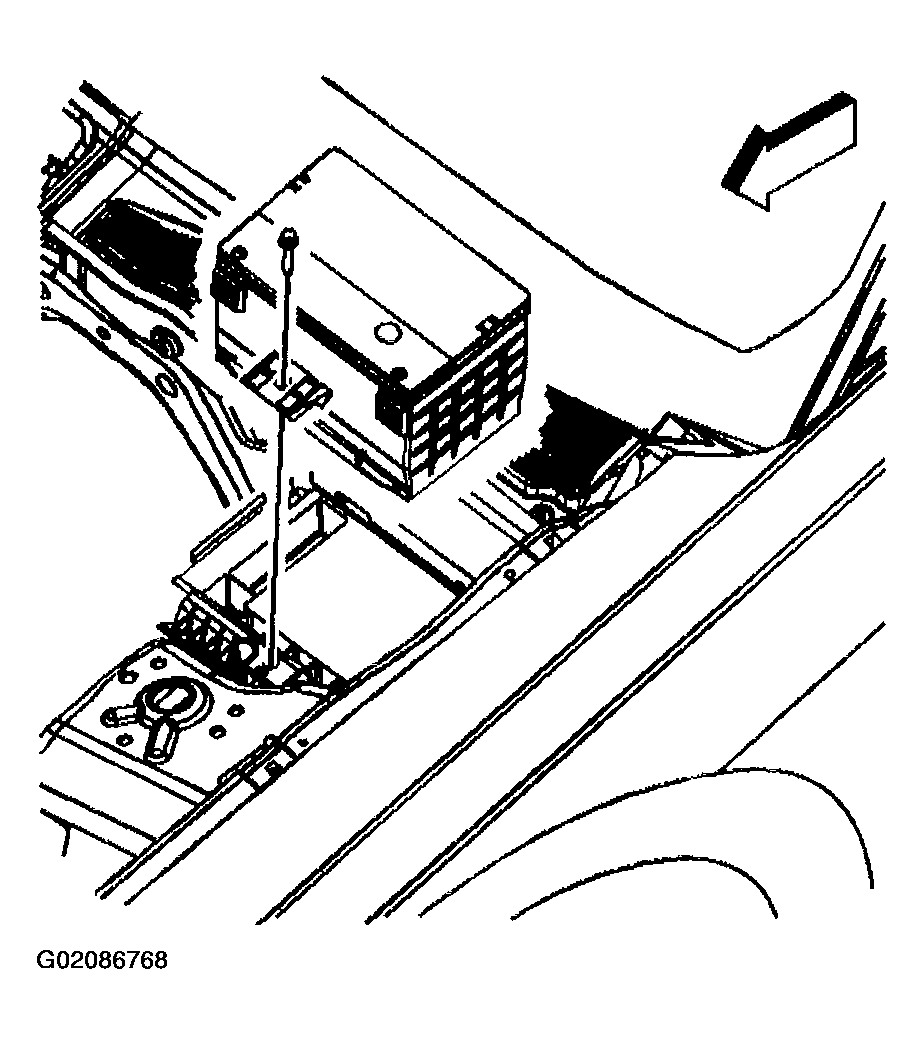

    Fig 1: Installing Battery Retainer Bolt & Battery Retainer
    G02086768Courtesy of GENERAL MOTORS CORP.
  4. Connect the battery positive cable to the battery.

    Tighten

    Tighten the battery cable bolt to 17 N.m (13 lb ft).

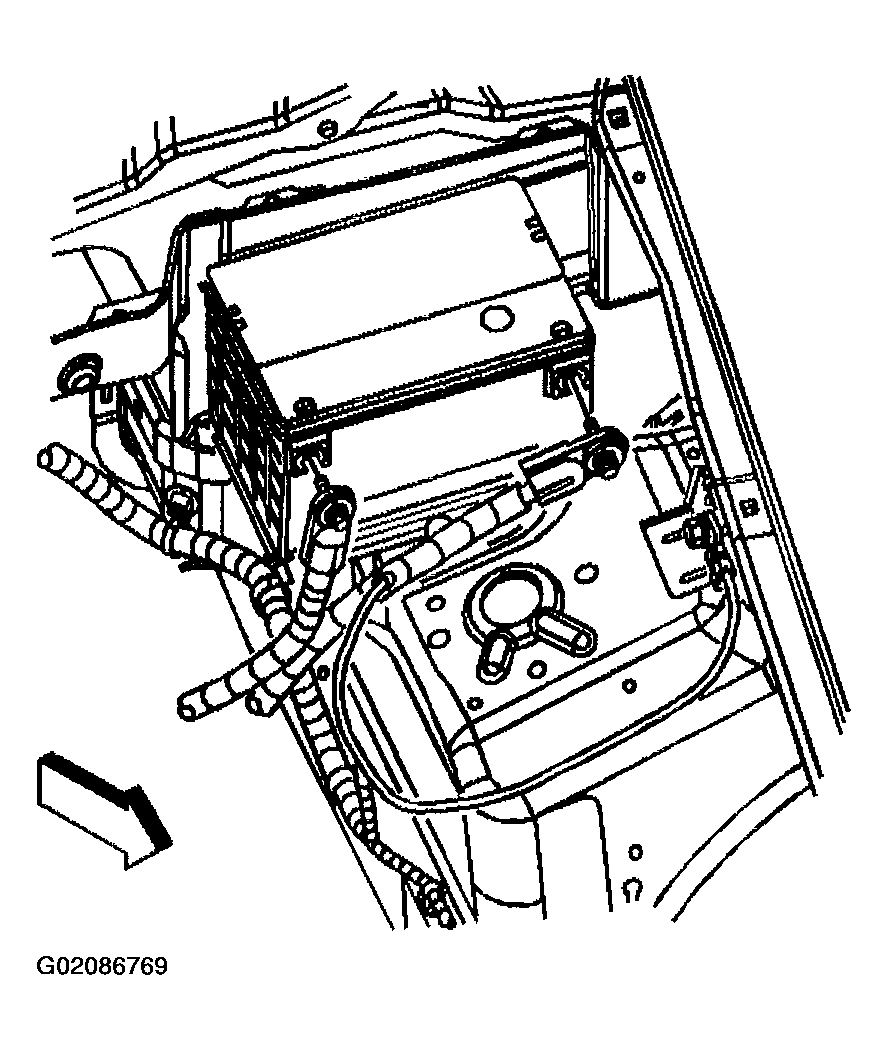

    Fig 2: Connecting Battery Positive Cable To Battery
    G02086769Courtesy of GENERAL MOTORS CORP.
  5. Connect the battery negative cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE  .
