Removal Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE  .
  2. Disconnect the battery positive cable from the battery.

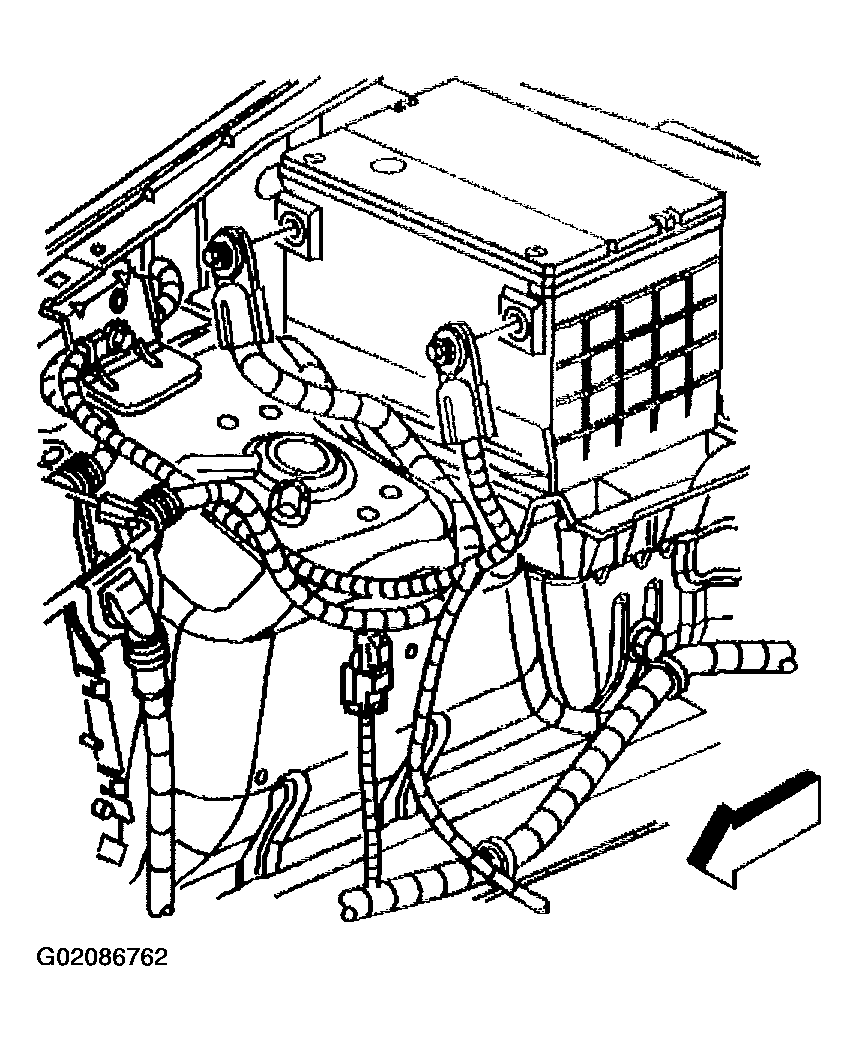

    Fig 1: Disconnecting Battery Positive Cable From Battery
    G02086762Courtesy of GENERAL MOTORS CORP.
  3. Remove the battery retainer bolt and battery retainer.

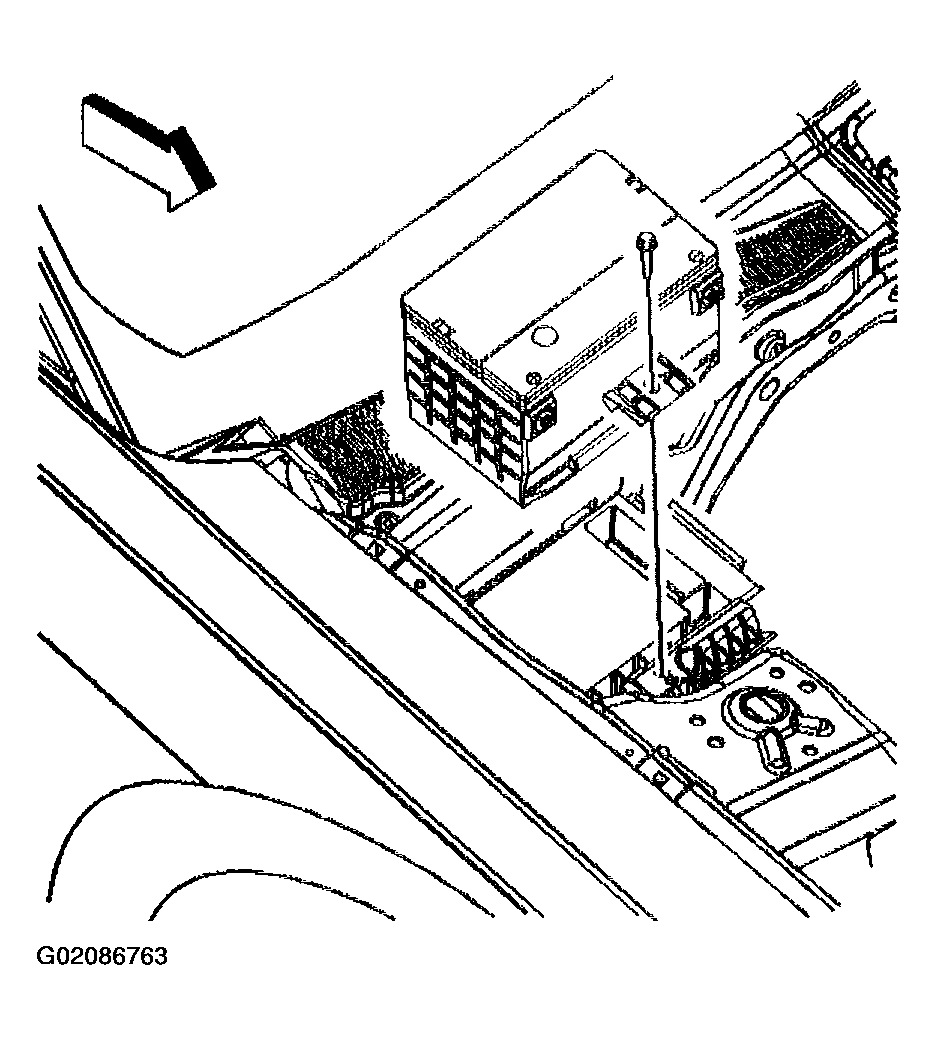

    Fig 2: Removing Battery Retainer Bolt & Battery Retainer
    G02086763Courtesy of GENERAL MOTORS CORP.
  4. Remove the battery from the vehicle.
  5. Remove the battery heat shield. Refer to BATTERY HEAT SHIELD REPLACEMENT  .
