Removal Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

Important:

Always use replacement cables that are of the same type, diameter and length of the cables that you are replacing.
Always route the replacement cable the same way as the original cable.

Disconnect the battery negative cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .
Remove the bolt (1) securing the battery negative cable to the side rail.

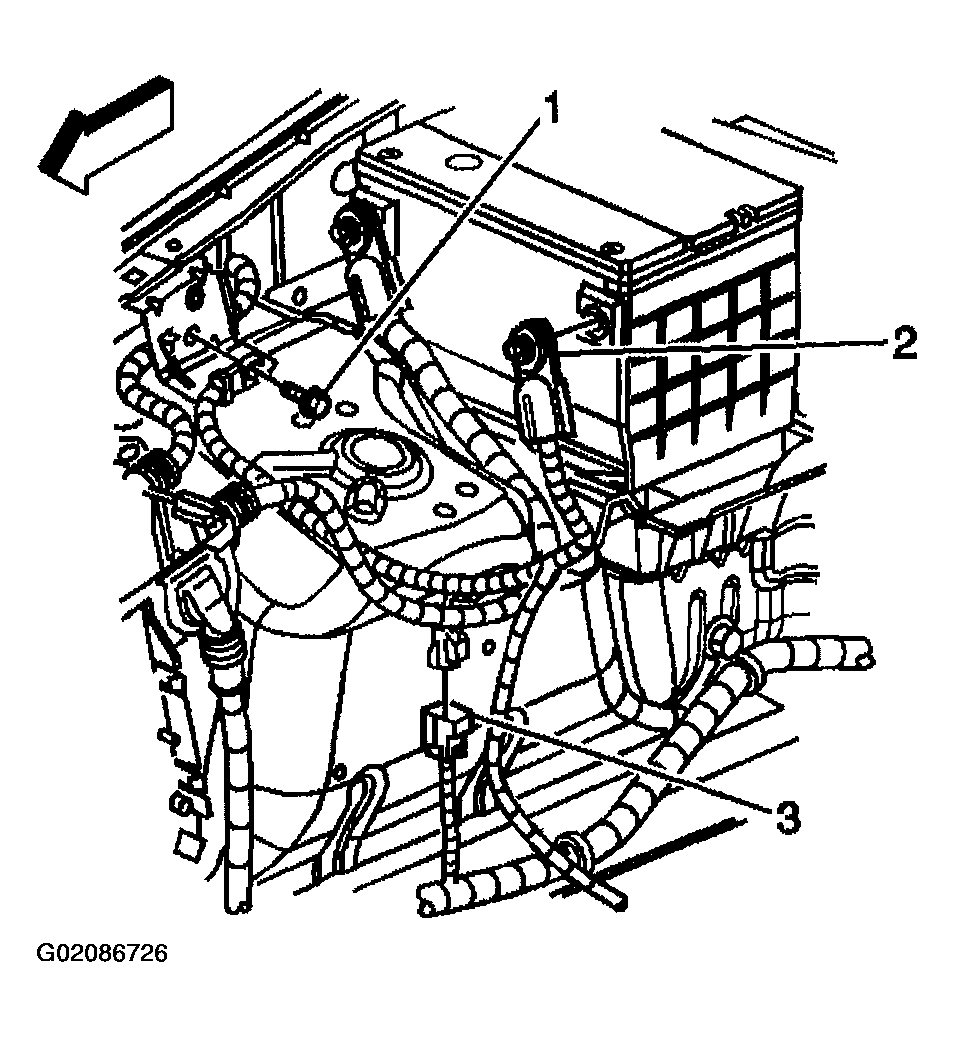

Fig 1: Disconnecting Battery Negative Cable & Retaining Bolt (LHD)
Courtesy of GENERAL MOTORS CORP.
Disconnect the body harness connector (3) from the battery negative cable.
Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
Remove the starter shield. Refer to STARTER SHIELD in Starters. .
Disconnect the cable harness clip from the coolant inlet pipe.
Remove the bolt securing the battery negative cable to the engine block.

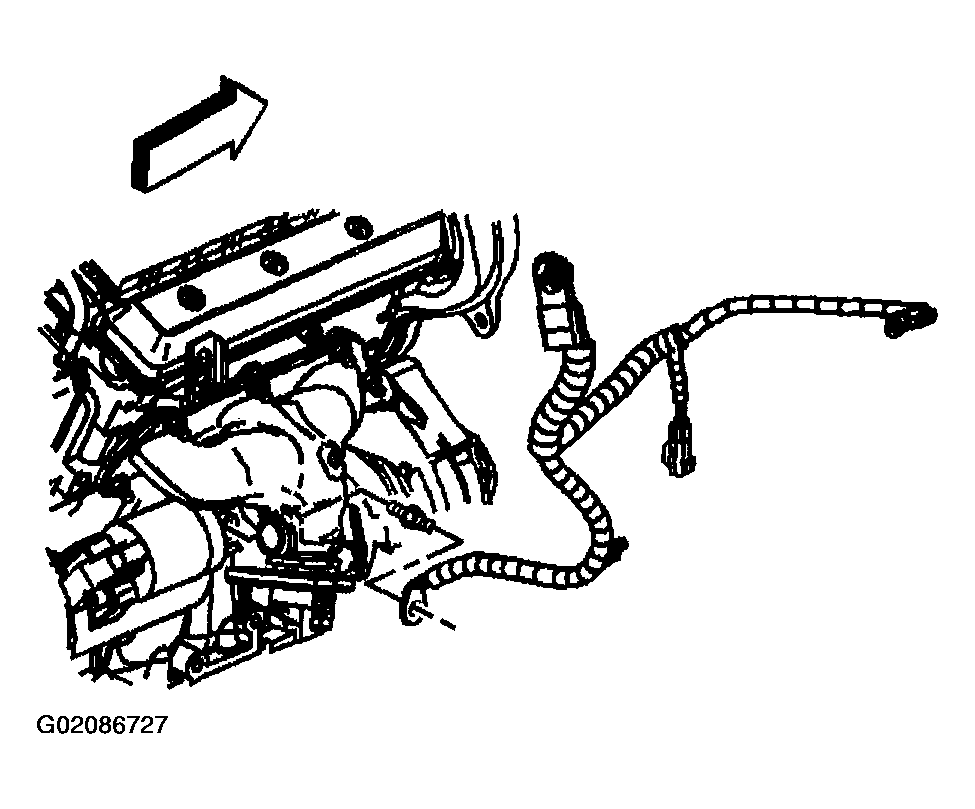

Fig 2: Removing Bolt Securing Battery Negative Cable To Engine Block
Courtesy of GENERAL MOTORS CORP.
Lower the vehicle.
Remove the battery negative cable from the engine.
