Removal Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to BATTERY DISCONNECT CAUTION in Cautions and Notices.
  1. Turn off all the lamps and accessories.
  2. Turn the ignition OFF.
  3. Disconnect the battery negative cable (2) from the battery.

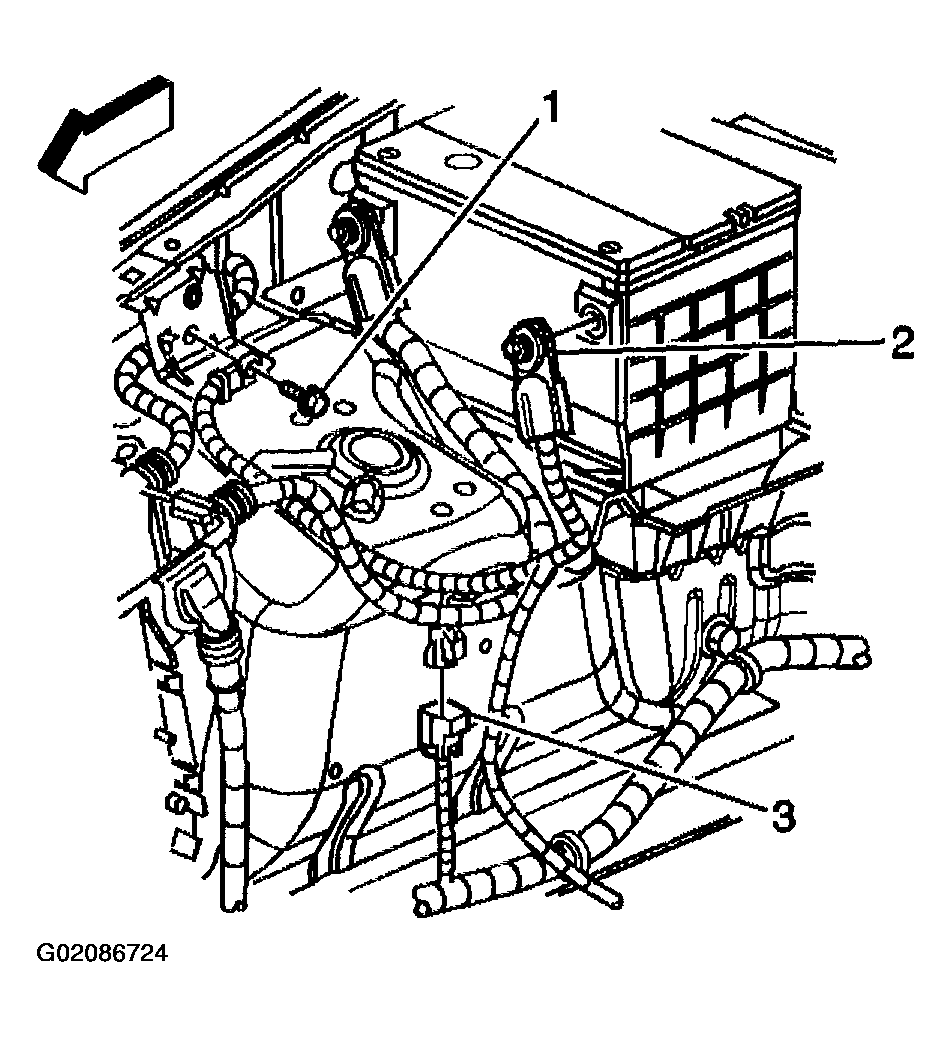

    Fig 1: Disconnecting Battery Negative Cable From Battery
    G02086724Courtesy of GENERAL MOTORS CORP.
