Removal Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery. Refer to BATTERY REPLACEMENT (LHD)  or BATTERY REPLACEMENT (RHD)  .
  2. Lift the battery heat shield upward from the battery.

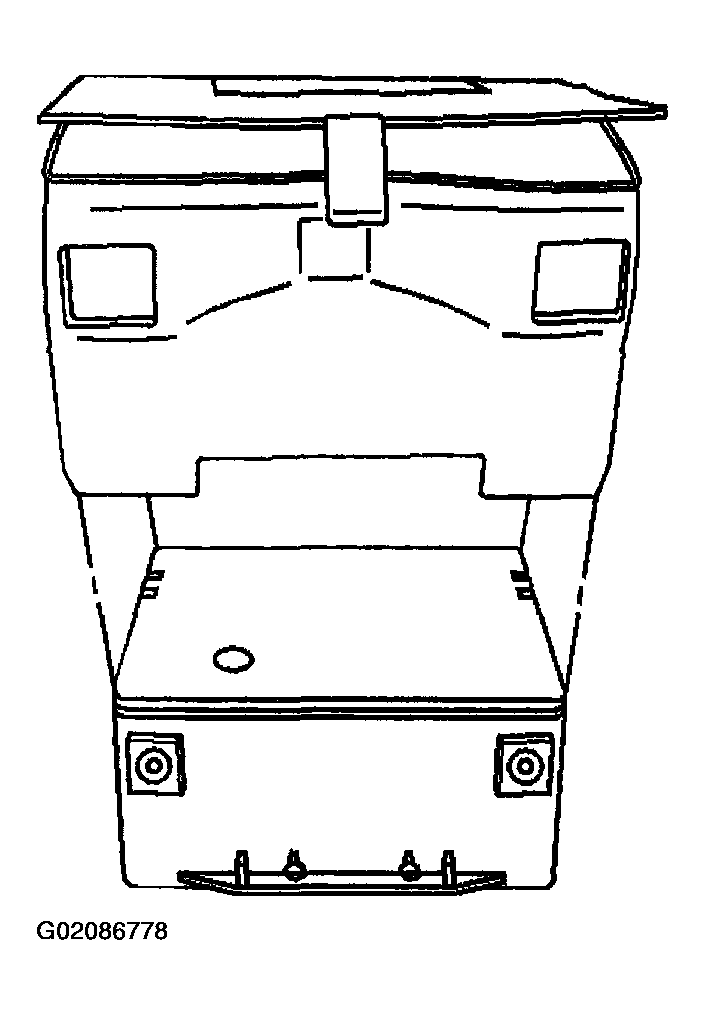

    Fig 1: Removing Battery Heat Shield From Battery
    G02086778Courtesy of GENERAL MOTORS CORP.
