Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to COMPONENT FASTENER TIGHTENING NOTICE in Cautions and Notices.

Install the following components to the water crossover (1) if previously removed:
- The ECT sensor (4) and gasket (5)
  Tighten

  Tighten the ECT sensor to 18 N.m (13 lb ft).
- The throttle body inlet heater hose fitting (3)
  Tighten

  Tighten the throttle body inlet heater hose fitting to 20 N.m (15 lb ft).
- The water crossover pipe plug (2)
  Tighten

  Tighten the water crossover pipe plug to 5 N.m (44 lb in).
- The heater hose

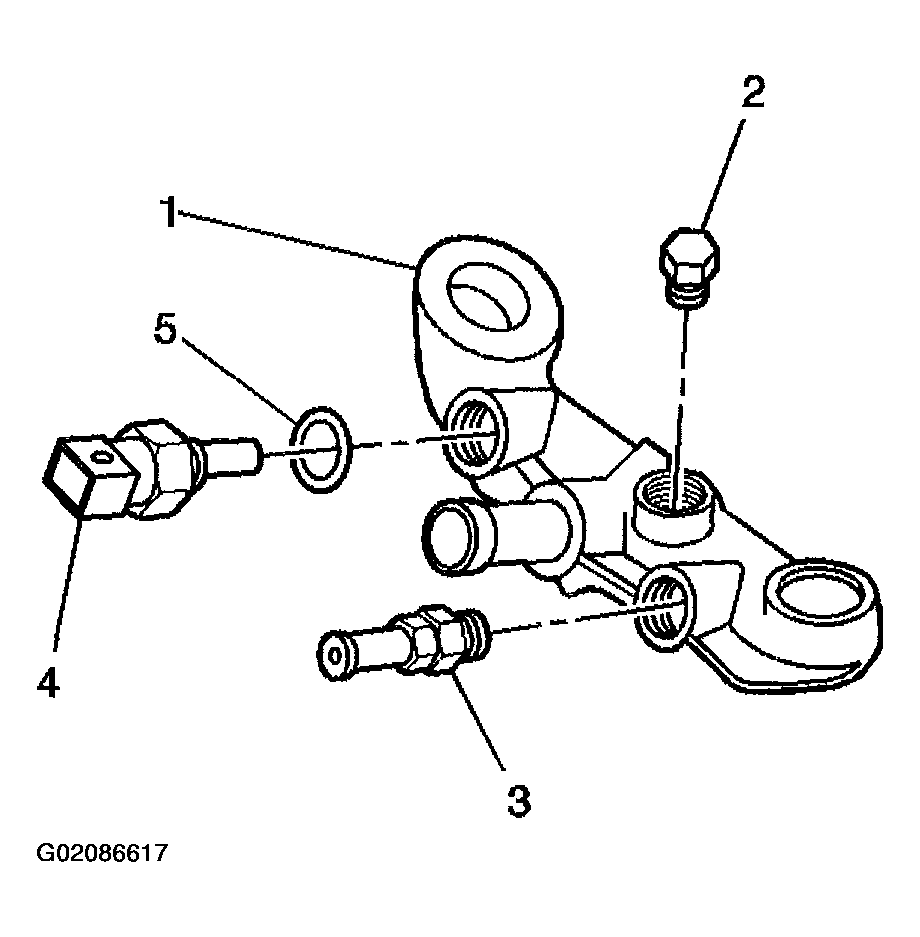

  Fig 1: Installing ECT Sensor, Gasket & Throttle Body Inlet Heater Hose Fitting
  Courtesy of GENERAL MOTORS CORP.
Install the following to the cylinder heads:
- The upper and lower seals (1)
- The water crossover (4)
- The water crossover fittings (2)
  Tighten

  Tighten the water crossover fittings to 20 N.m (15 lb ft).

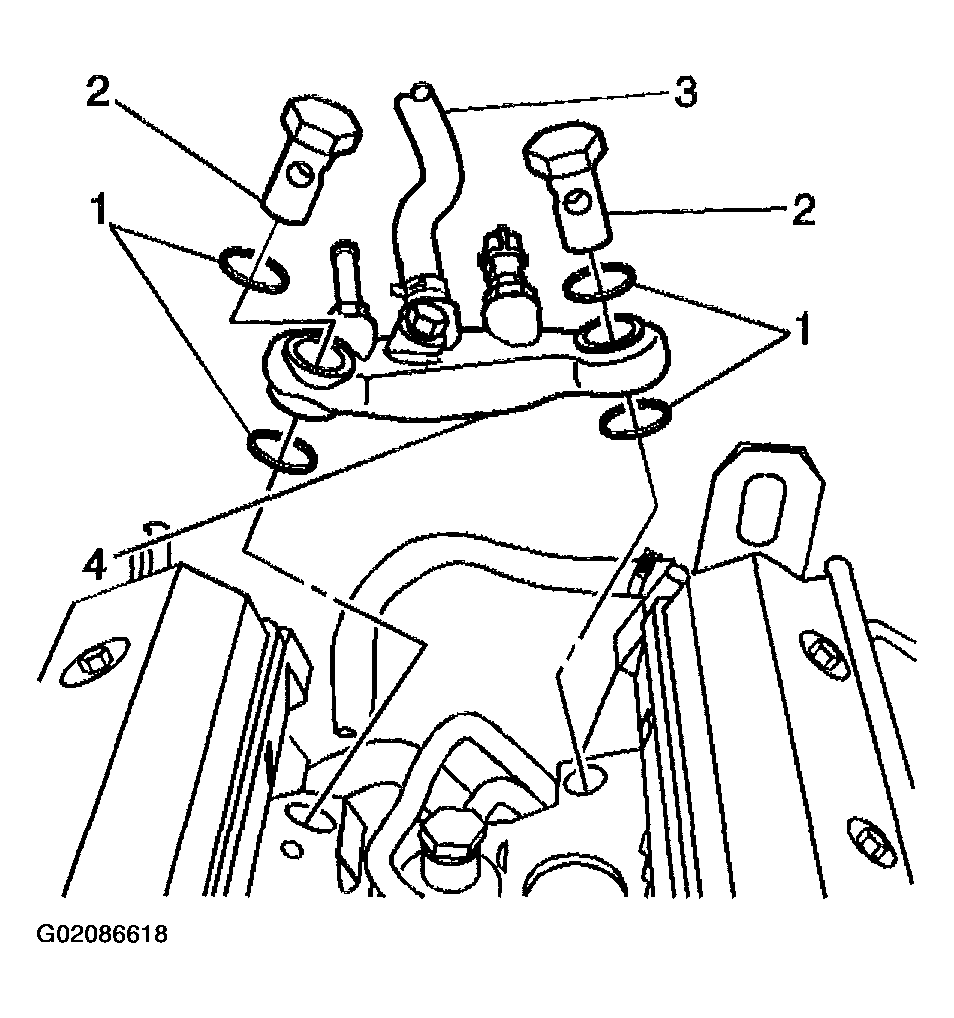

  Fig 2: Installing Water Crossover
  Courtesy of GENERAL MOTORS CORP.
Connect the electrical connector (3) to the ECT sensor.

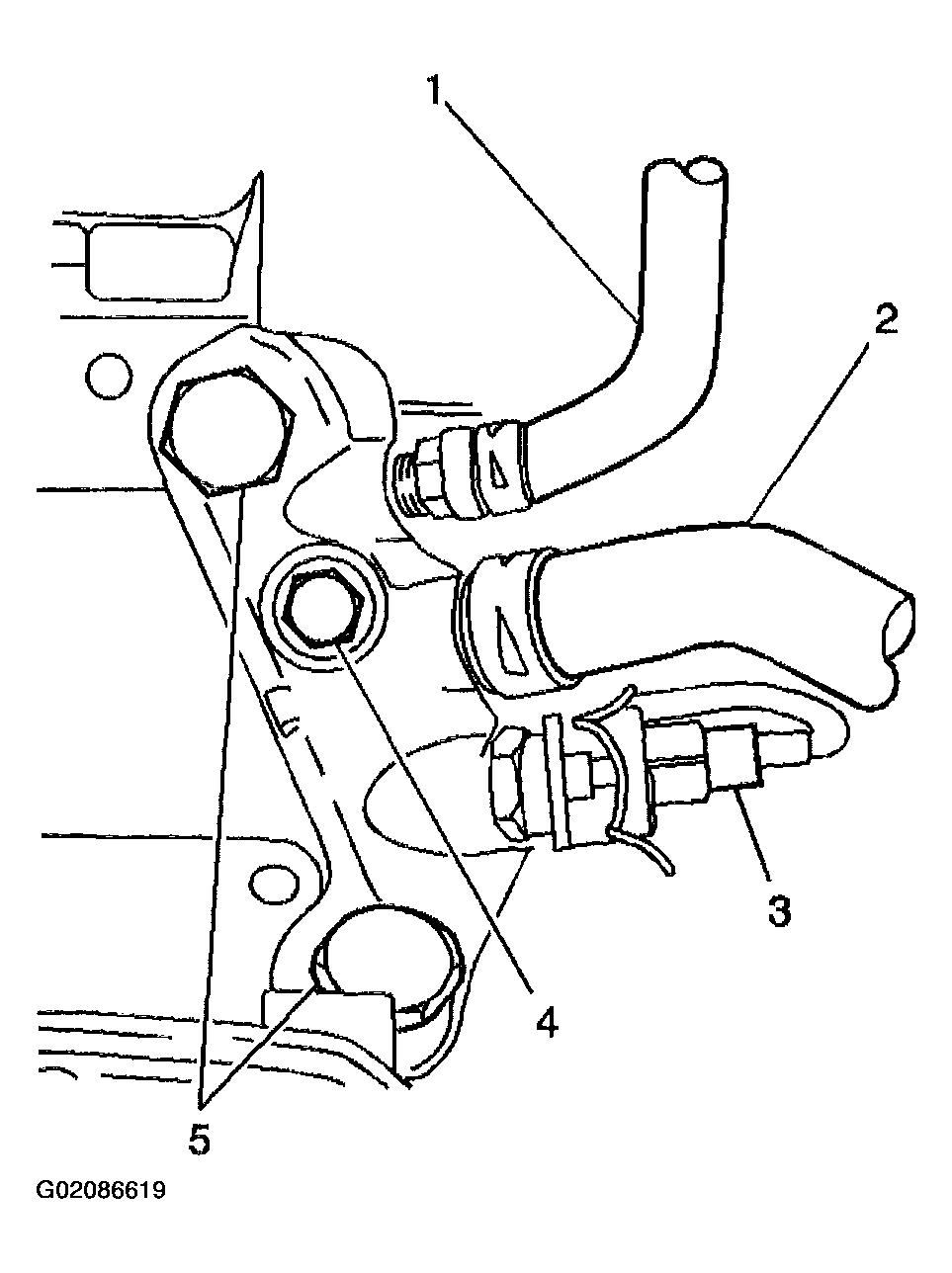

Fig 3: Connecting Engine Coolant Temperature (ECT) Sensor Electrical Connector
Courtesy of GENERAL MOTORS CORP.
Connect the throttle body heater hose (1) to the fitting.
Install the intake manifold. Refer to INTAKE MANIFOLD REPLACEMENT .
Fill the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM .
