Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Complete the following in order to Install the thermostat into the thermostat housing:
    1. 1.1. Align the thermostat pin to the thermostat housing orifice.
    2. 1.2. Depress the ears on both sides of the thermostat.
    3. 1.3. Rotate the thermostat until it aligns with the retaining feature of the housing.
    4. 1.4. Release the pressure from the thermostat.

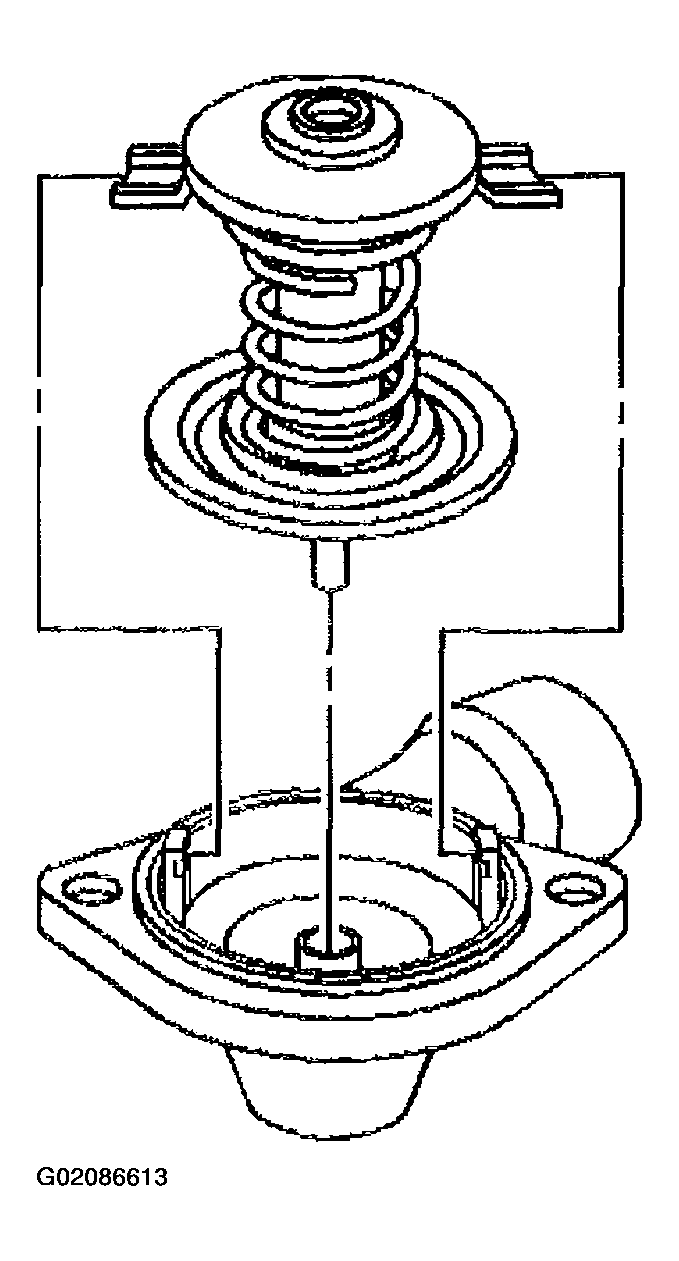

    Fig 1: Installing Thermostat
    G02086613Courtesy of GENERAL MOTORS CORP.
  2. Install the thermostat housing. Refer to THERMOSTAT HOUSING REPLACEMENT  .
