Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the radiator support brackets (2).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the radiator support bolts (1).

    Tighten

    Tighten the bolts to 9 N.m (80 lb in).

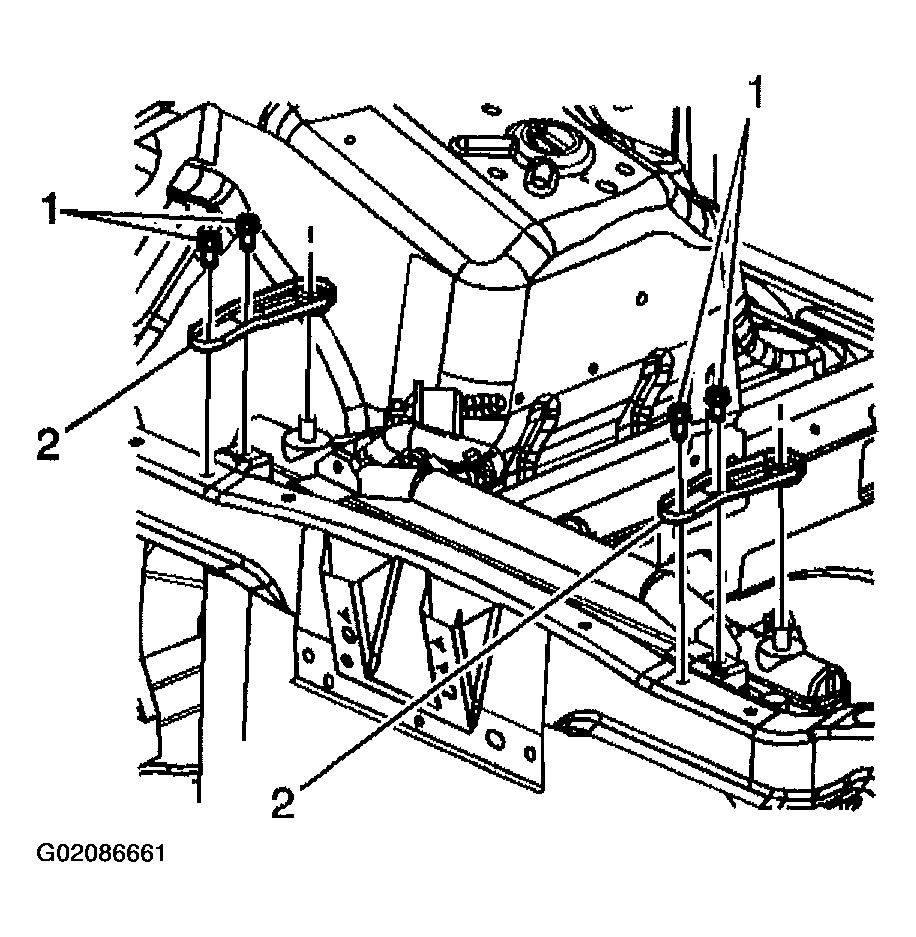

    Fig 1: Installing Radiator Support Bracket & Bolts
    G02086661Courtesy of GENERAL MOTORS CORP.
  3. Install the condenser seal (1).

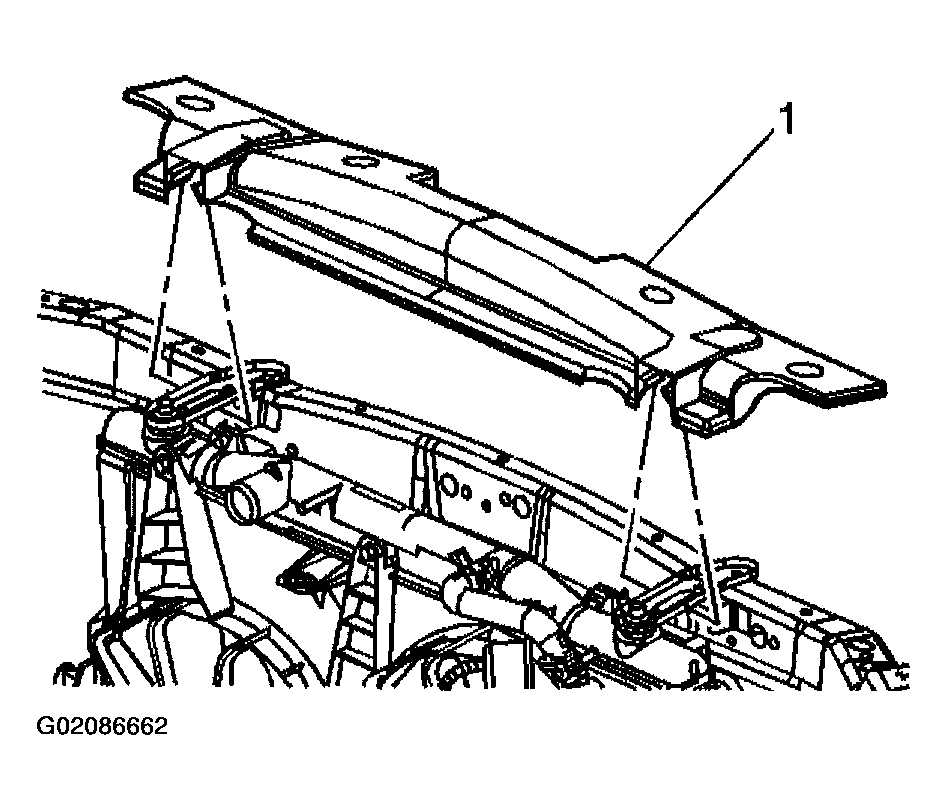

    Fig 2: Installing Condenser Seal
    G02086662Courtesy of GENERAL MOTORS CORP.
