Removal Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the coolant. Refer to DRAINING AND FILLING COOLING SYSTEM  .
  2. Remove the radiator support brackets. Refer to RADIATOR SUPPORT BRACKET REPLACEMENT  .
  3. Remove the cooling fans. Refer to COOLING FAN REPLACEMENT - ELECTRIC  .
  4. Remove the 2 upper condenser mounting bolts.

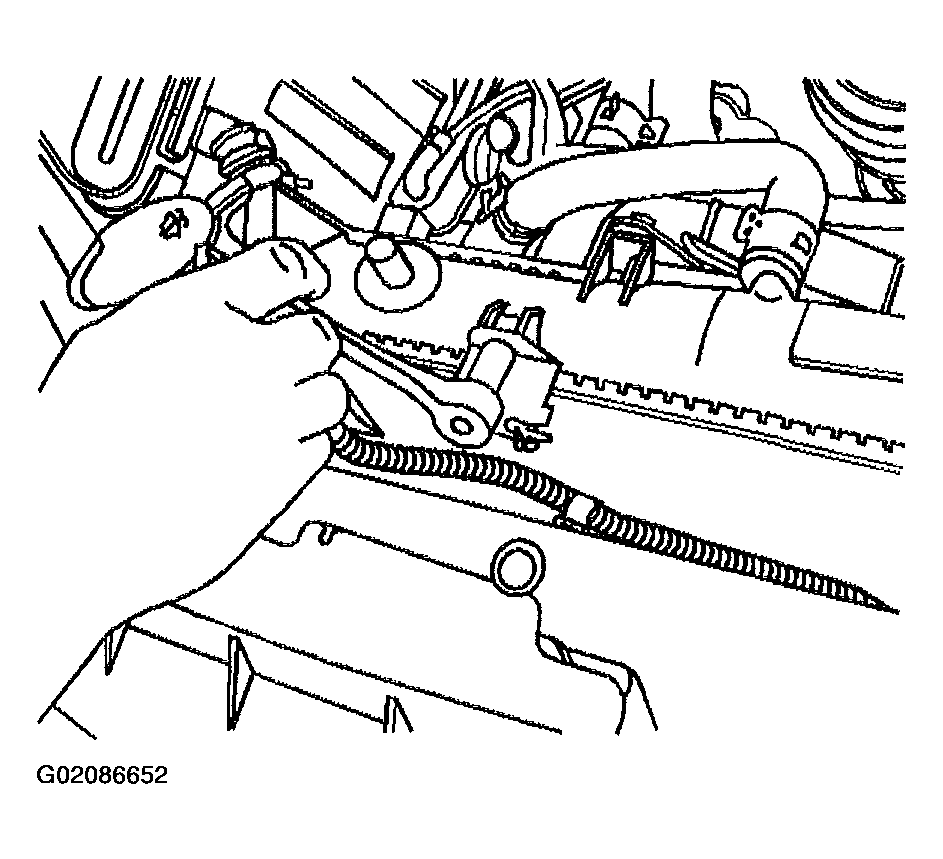

    Fig 1: Removing Upper Condenser Mounting Bolts
    G02086652Courtesy of GENERAL MOTORS CORP.
  5. Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
    NOTE: The transmission oil cooler lines use a quick connect fitting at the radiator. The quick connect fitting must be removed using a special tool. Removing the transmission oil cooler lines without the tool will result in damage to the radiator and the transmission oil cooler, and may damage the transmission due to mixing of the transmission oil and coolant.
  6. Using the J 44827  (2) disconnect the lower transaxle oil cooler line from the radiator.

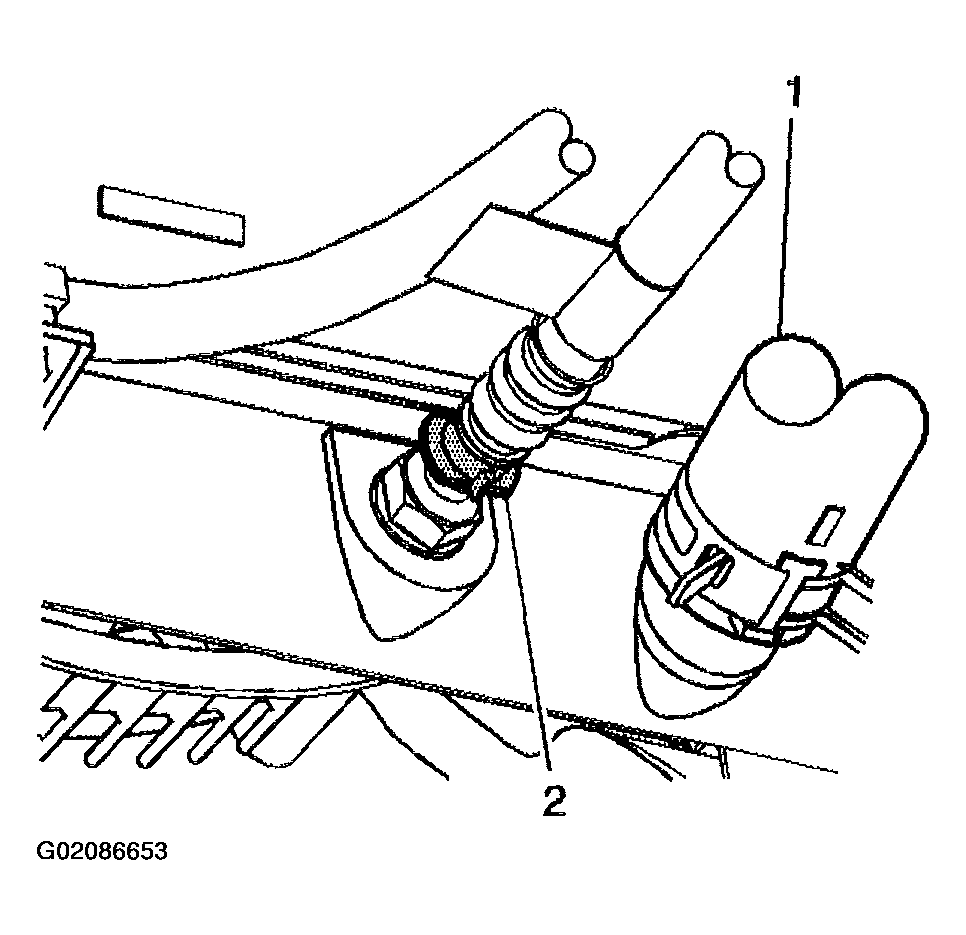

    Fig 2: Identifying Lower Transaxle Oil Cooler Line From Radiator
    G02086653Courtesy of GENERAL MOTORS CORP.
  7. Using the J 38185  disconnect the lower radiator hose (1) from the radiator.

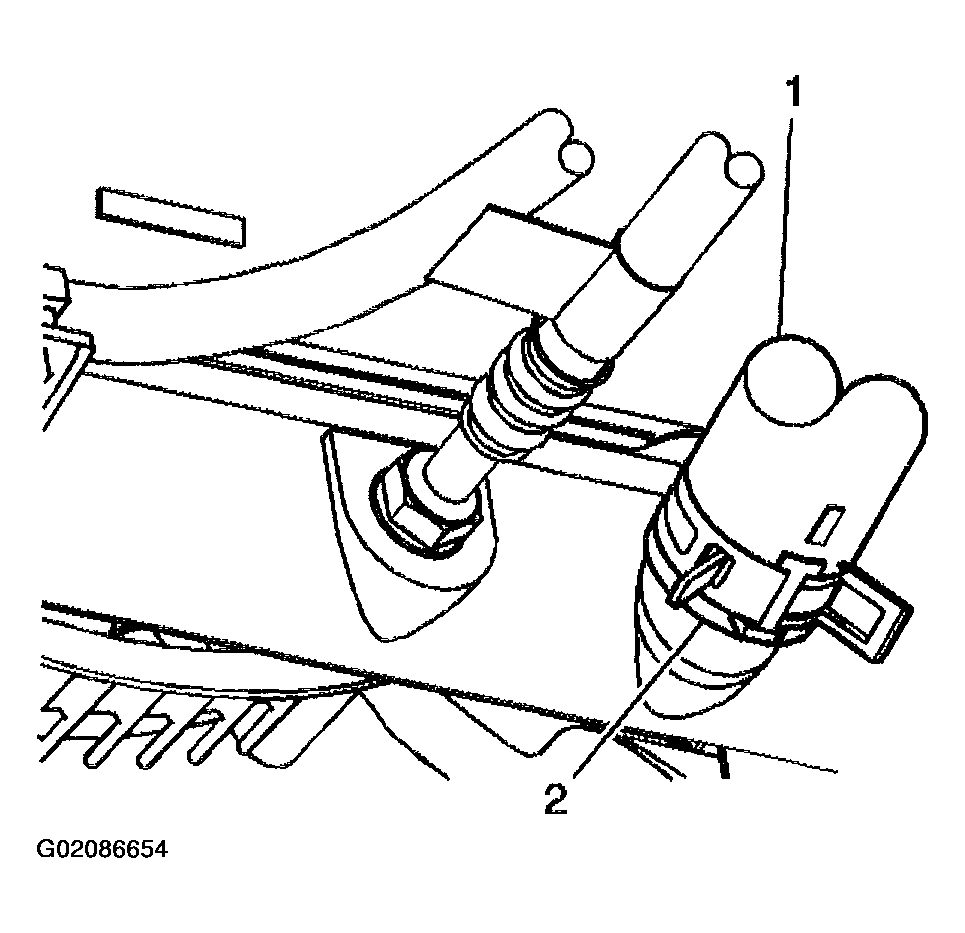

    Fig 3: View Of Lower Radiator Hose From Radiator
    G02086654Courtesy of GENERAL MOTORS CORP.
  8. Remove the lower condenser mounting bolts.

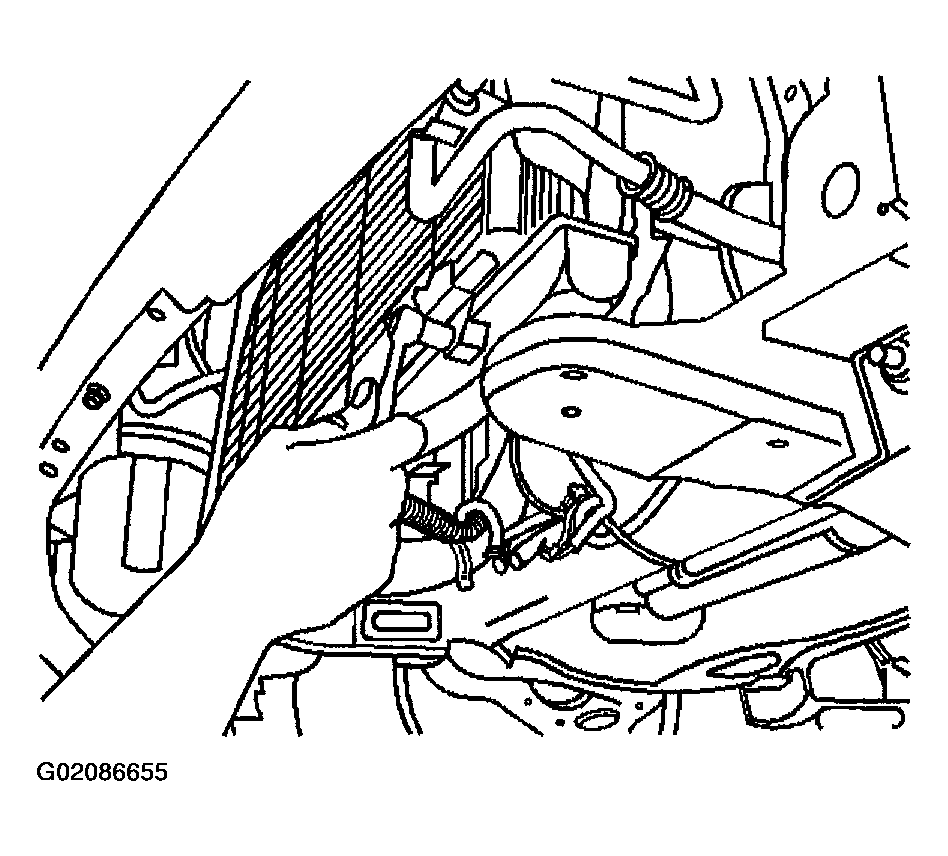

    Fig 4: Removing Lower Condenser Mounting Bolts
    G02086655Courtesy of GENERAL MOTORS CORP.
  9. Remove the radiator side seal push pins.
  10. Separate the side seals from the radiator.
  11. Lower the vehicle.
  12. Remove the radiator.
