Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

Position the radiator hose into the vehicle.
Position the J 38185 to the clamp (2) in order to connect the outlet radiator hose (1) to the radiator.

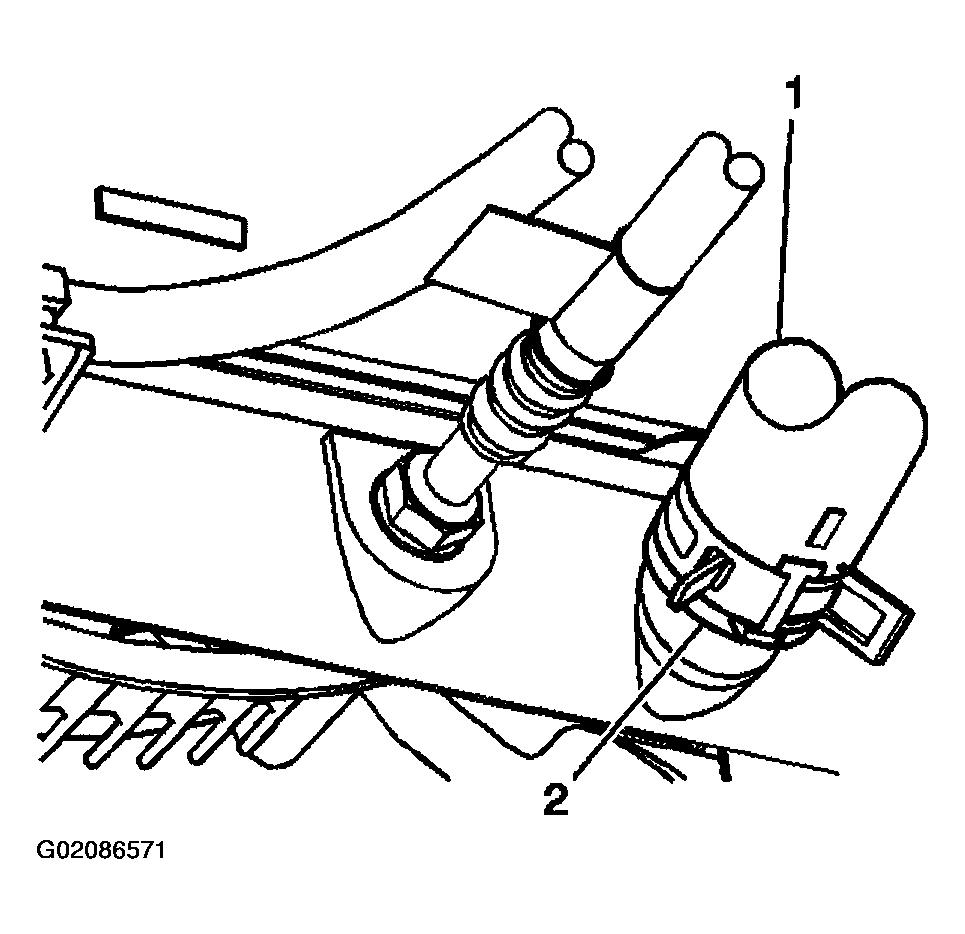

Fig 1: Connecting Outlet Radiator Hose To Radiator
Courtesy of GENERAL MOTORS CORP.
Install the air deflector. Refer to AIR DEFLECTOR REPLACEMENT -- FRONT .
Position the J 38185 to the clamp in order to connect the outlet radiator hose (1) to the cooling pipe.

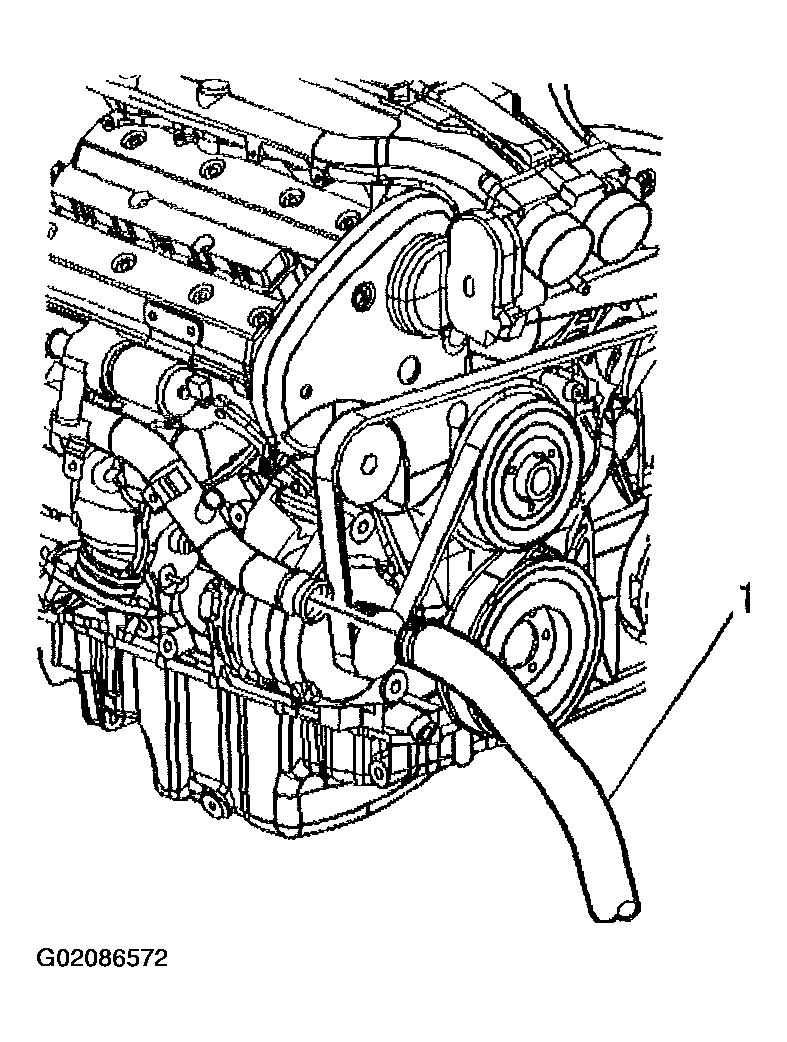

Fig 2: Connecting Outlet Radiator Hose To Cooling Pipe
Courtesy of GENERAL MOTORS CORP.
Fill the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM .
