Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the inlet radiator hose into the vehicle with the mark in the top position.
  2. Position the J 38185  to the clamp in order to connect the inlet radiator hose (2) to the engine.
  3. Position the J 37097-A  to the clamp in order to connect the inlet radiator hose (1) to the radiator.
  4. Fill the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM  .

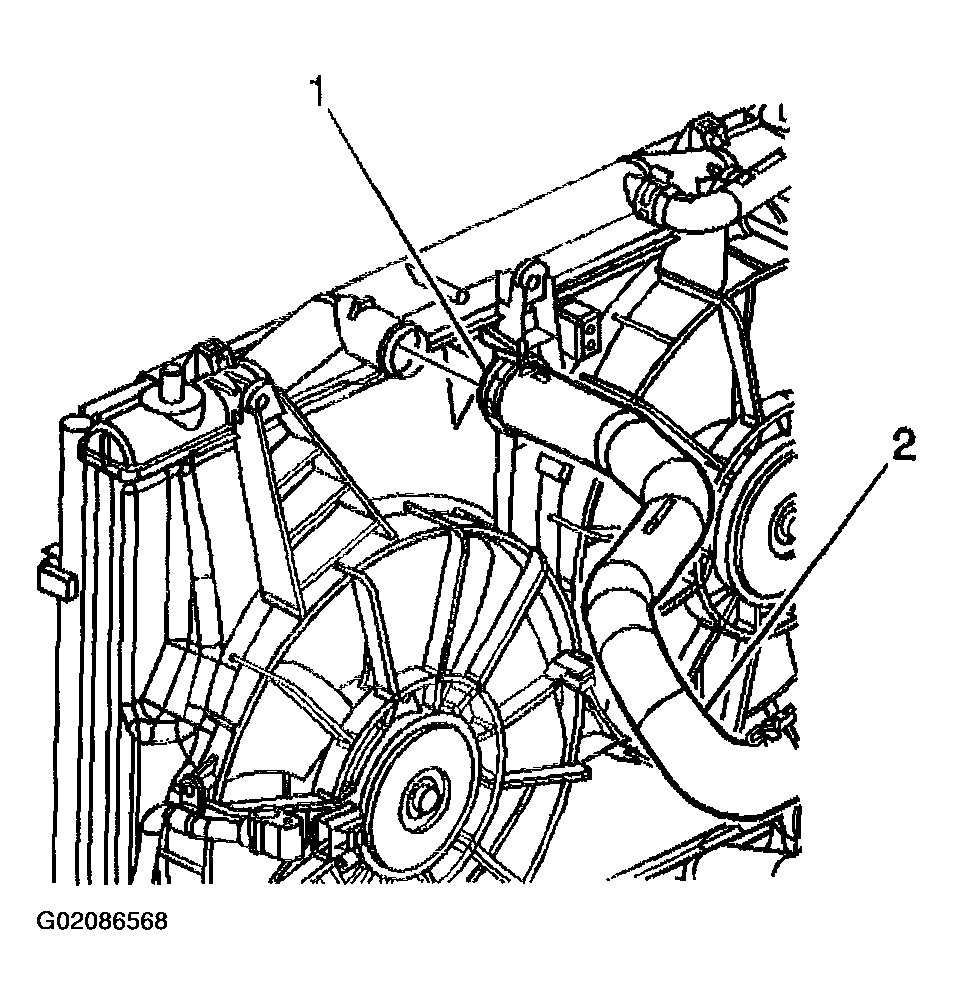

    Fig 1: Connecting Inlet Radiator Hose To Radiator
    G02086568Courtesy of GENERAL MOTORS CORP.
