Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the coolant bypass solenoid into slot and engage.
  2. Connect the vacuum hose (2) to the valve coolant bypass solenoid.
  3. Connect the electrical connector (1) to the coolant bypass solenoid.

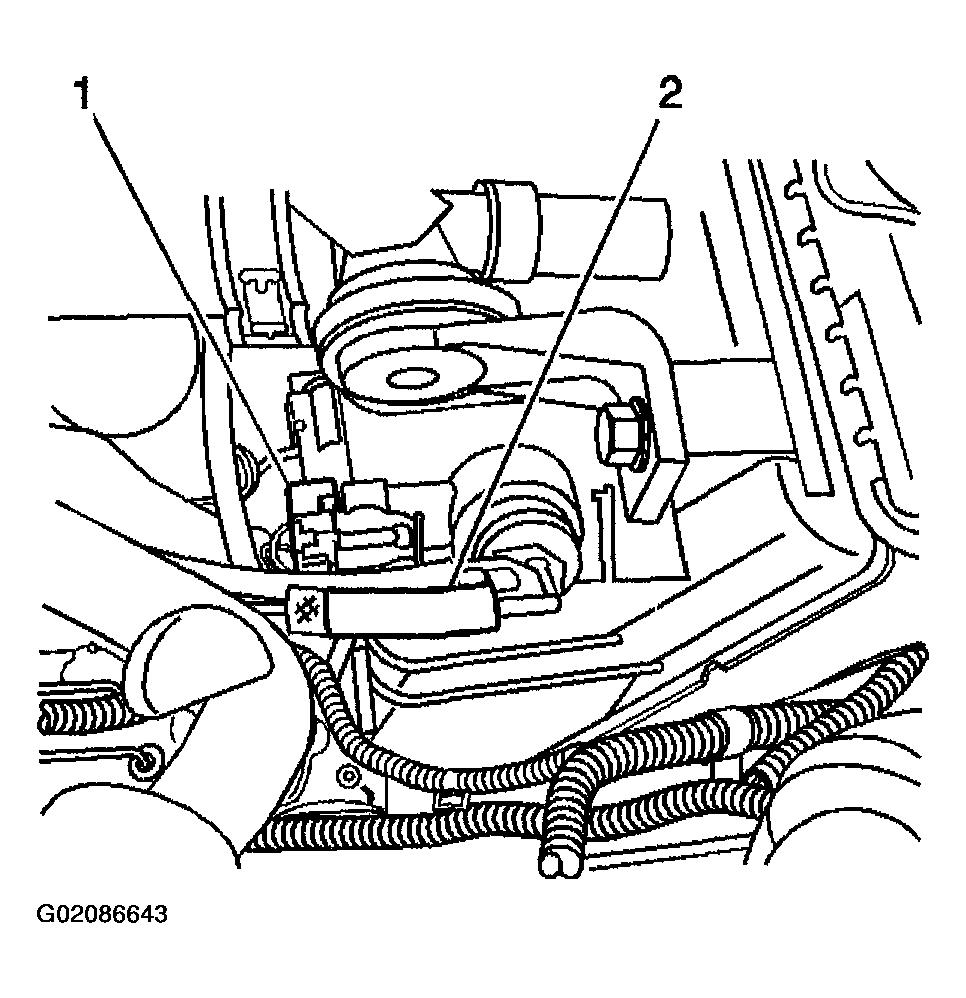

    Fig 1: Connecting Coolant Bypass Solenoid Electrical Connector
    G02086643Courtesy of GENERAL MOTORS CORP.
