Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

Install the afterboil coolant pump.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the afterboil coolant pump bolts (1).
Tighten

Tighten the bolts to 10 N.m (89 lb in).
Connect the afterboil coolant pump electrical connector (2) to the afterboil coolant pump (3).

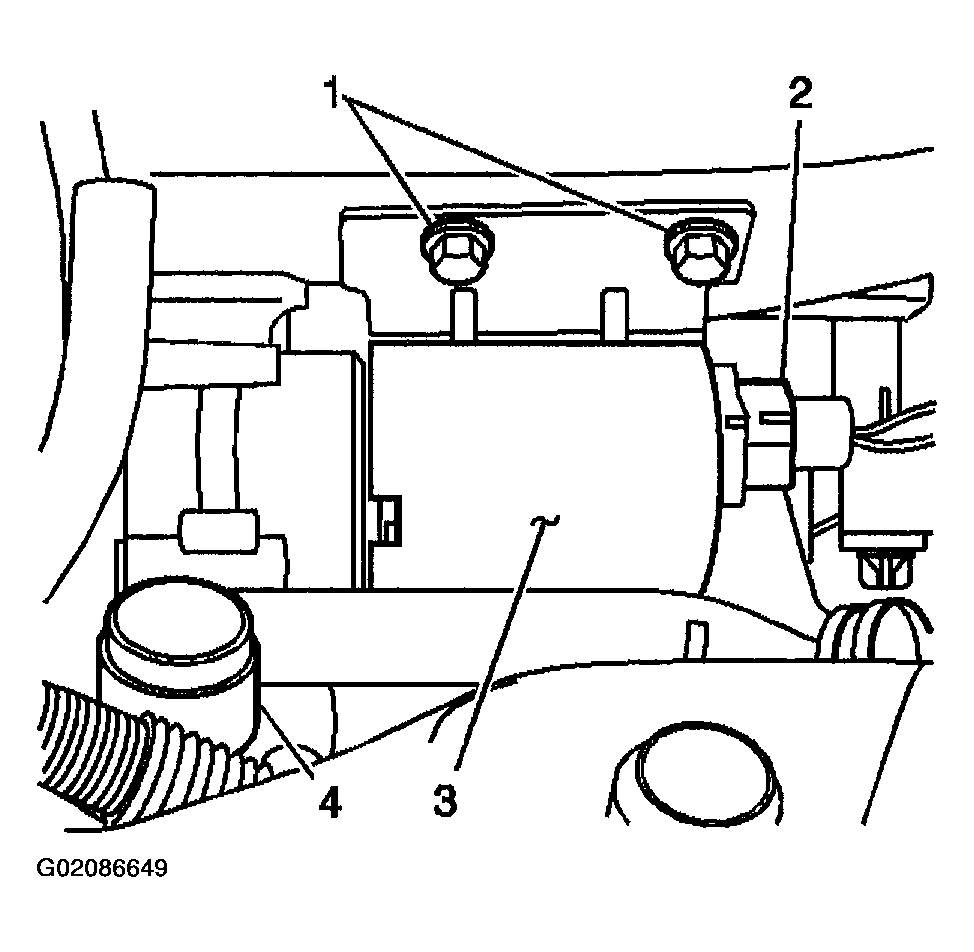

Fig 1: Connecting Afterboil Coolant Pump Electrical Connector
Courtesy of GENERAL MOTORS CORP.
Connect the hose to the afterboil coolant pump.
Using the J 38185 slide the hose clamp (1) back into the original position on the hose.

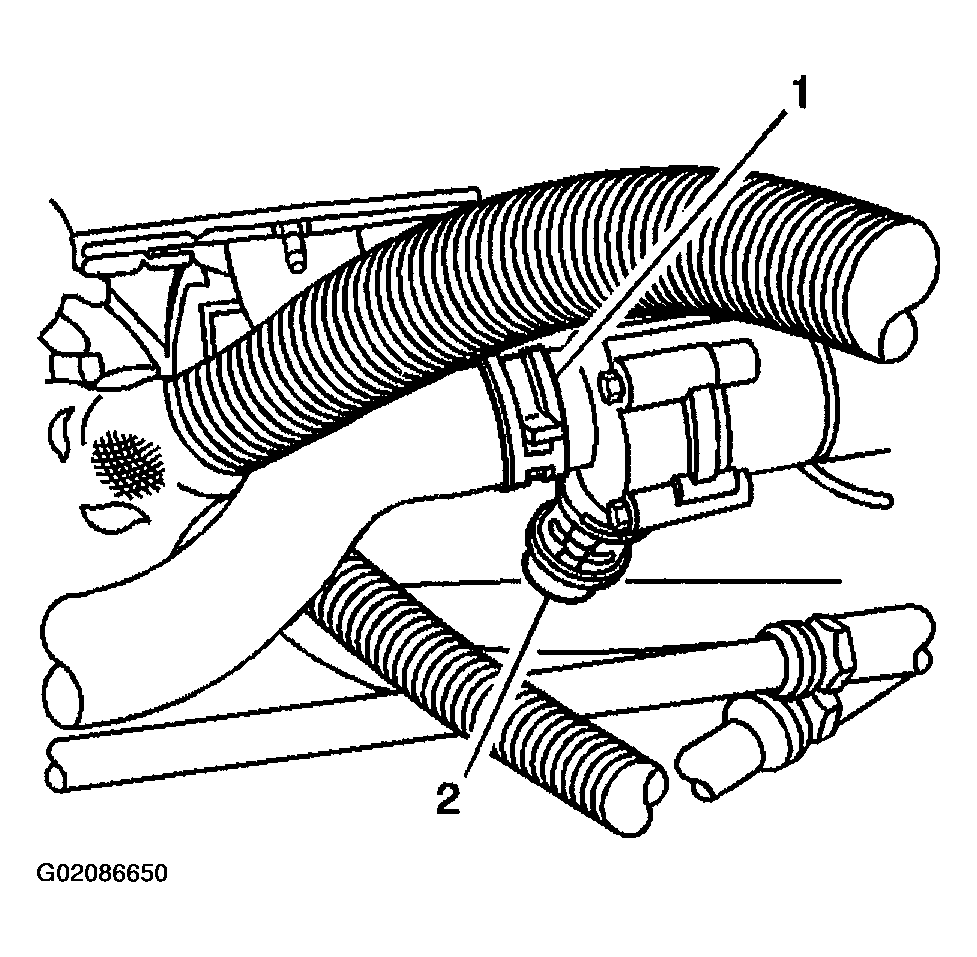

Fig 2: View Of Afterboil Coolant Pump Hose & Clamp
Courtesy of GENERAL MOTORS CORP.
Connect the hose to the afterboil coolant pump.
Using the J 38185 slide the hose clamp (1) back to the original position on the hose.

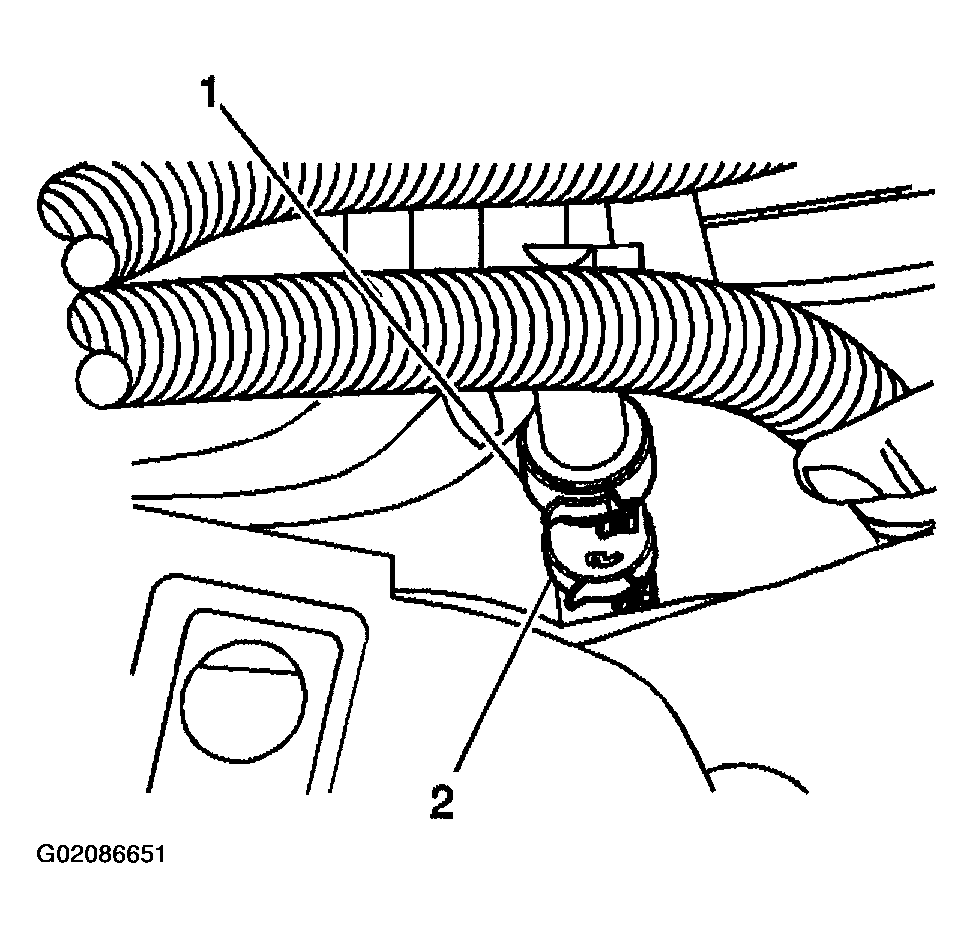

Fig 3: Locating Afterboil Coolant Pump Hose & Clamp
Courtesy of GENERAL MOTORS CORP.
Fill the coolant. Refer to DRAINING AND FILLING COOLING SYSTEM .
