Removal Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the defroster grille. Refer to DEFROSTER GRILLE REPLACEMENT in Instrument Panel, Gages and Console.
  2. Remove the sunload sensor from the defroster grill by twisting the sensor 1/4 turn counter clockwise.
  3. Disconnect the sunload sensor electrical connector.
  4. Remove the sunload sensor.

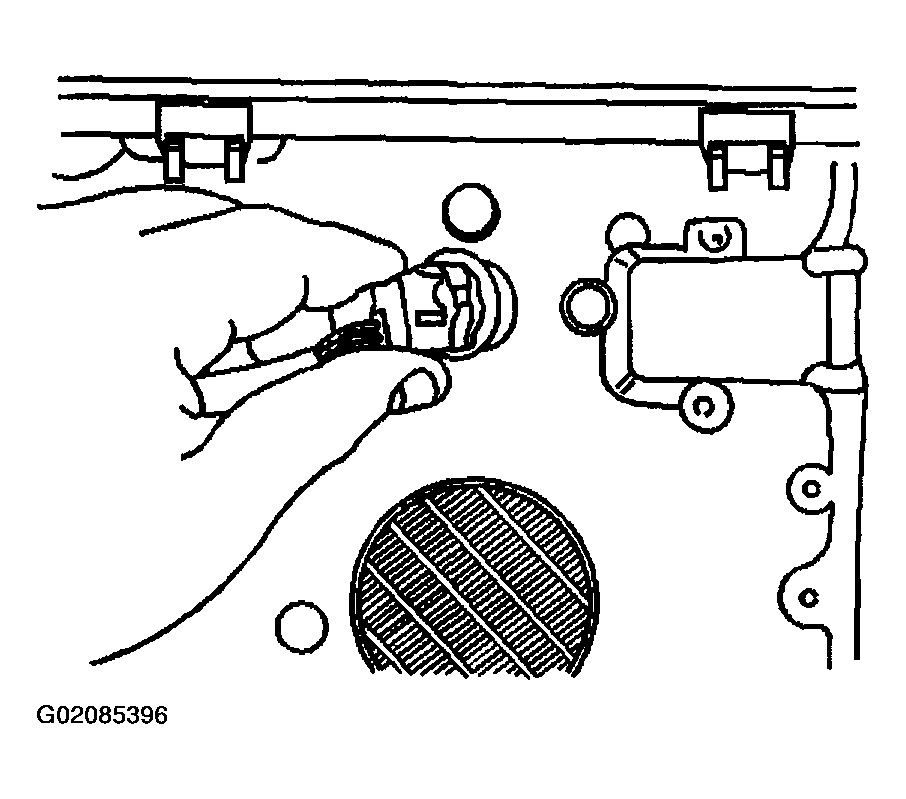

    Fig 1: Sunload Sensor Electrical Connector
    G02085396Courtesy of GENERAL MOTORS CORP.
