Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to the rear compartment lid switch.
  2. Position the rear compartment lid switch (1) into the opening in the door trim panel.
  3. Push downward on the rear compartment lid switch (1) to engage the retainer tabs.

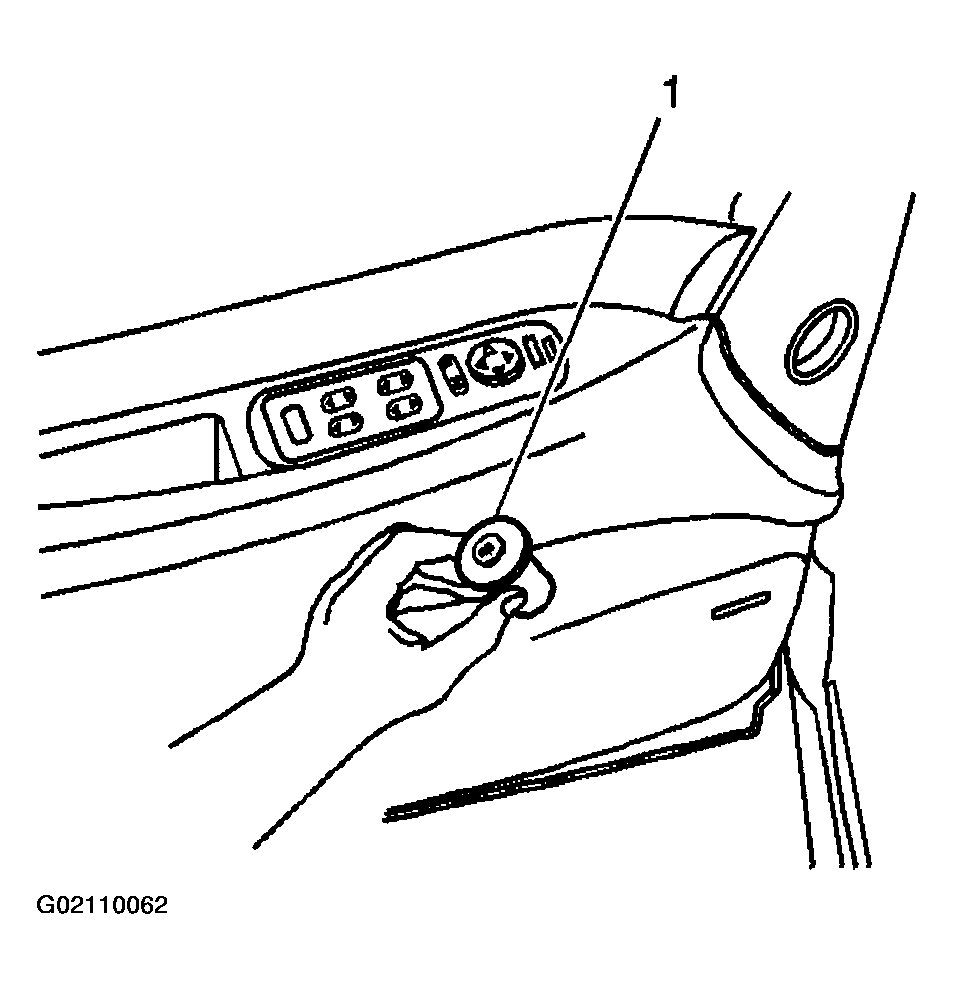

    Fig 1: Rear Compartment Lid Switch At Door Trim Panel
    G02110062Courtesy of GENERAL MOTORS CORP.
