Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the sunshade to the headliner.
  2. Push the electrical connector and the wiring through the hole in the headliner.
  3. Connect the electrical connector (1).
  4. Position the plastic retainer (2) over the top of the electrical harness.
  5. Align the fasteners to the holes in the sunshade metal integral clip (2).

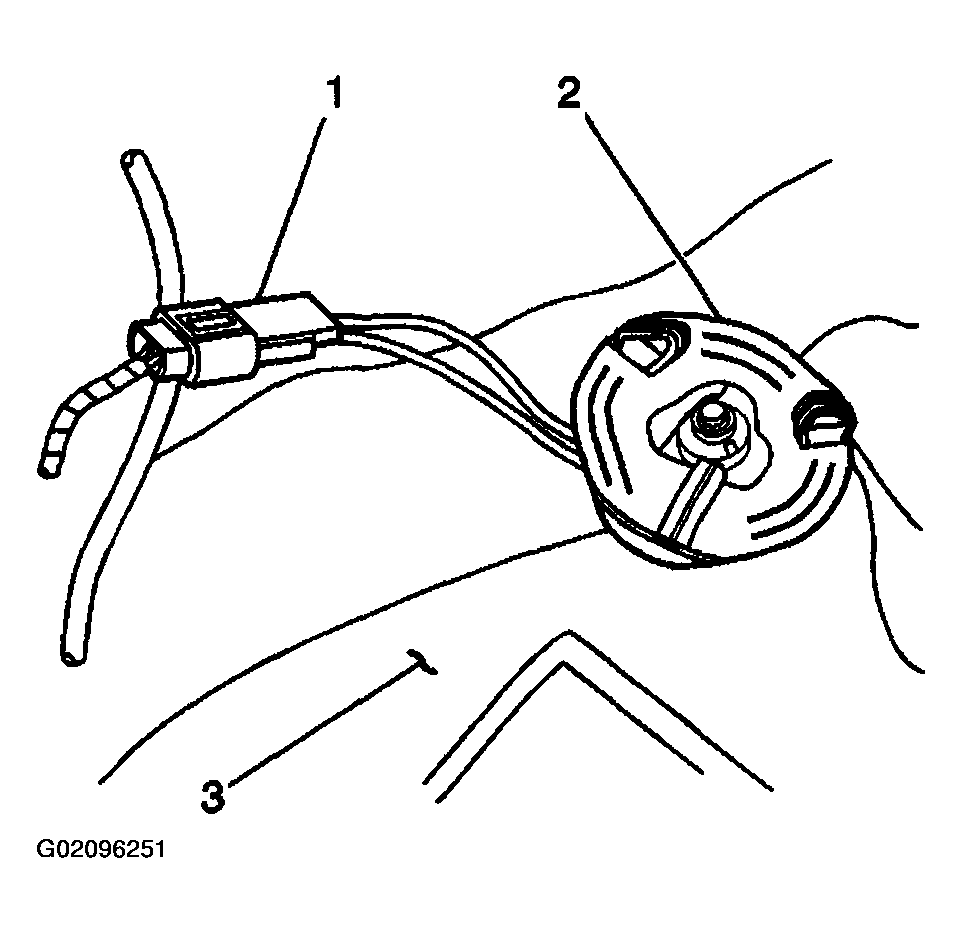

    Fig 1: Connecting Electrical Connector
    G02096251Courtesy of GENERAL MOTORS CORP.

    Important:  Do not pinch the wiring (3) when you install the fasteners.

    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  6. Install the fasteners that secure the bezel (2) to the headliner.

    Tighten

    Tighten the fasteners to 2 N.m (18 lb in).

  7. Install the windshield pillar garnish molding. Refer to GARNISH MOLDING REPLACEMENT - WINDSHIELD PILLAR  .
  8. Secure the sunshade to the sunshade rod retainer.
    Fig 2: Installing Fasteners That Secure Bezel To Headliner
    G02096252Courtesy of GENERAL MOTORS CORP.
