Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the front upper retainer to the holes in the hinge pillar.
  2. Align the front carpet retainer with the slots in the rocker panel.
  3. Apply pressure along the entire length of the molding in order to secure the retainers.
  4. Ensure the fit at the lower center pillar garnish molding is secure to the front carpet retainer.

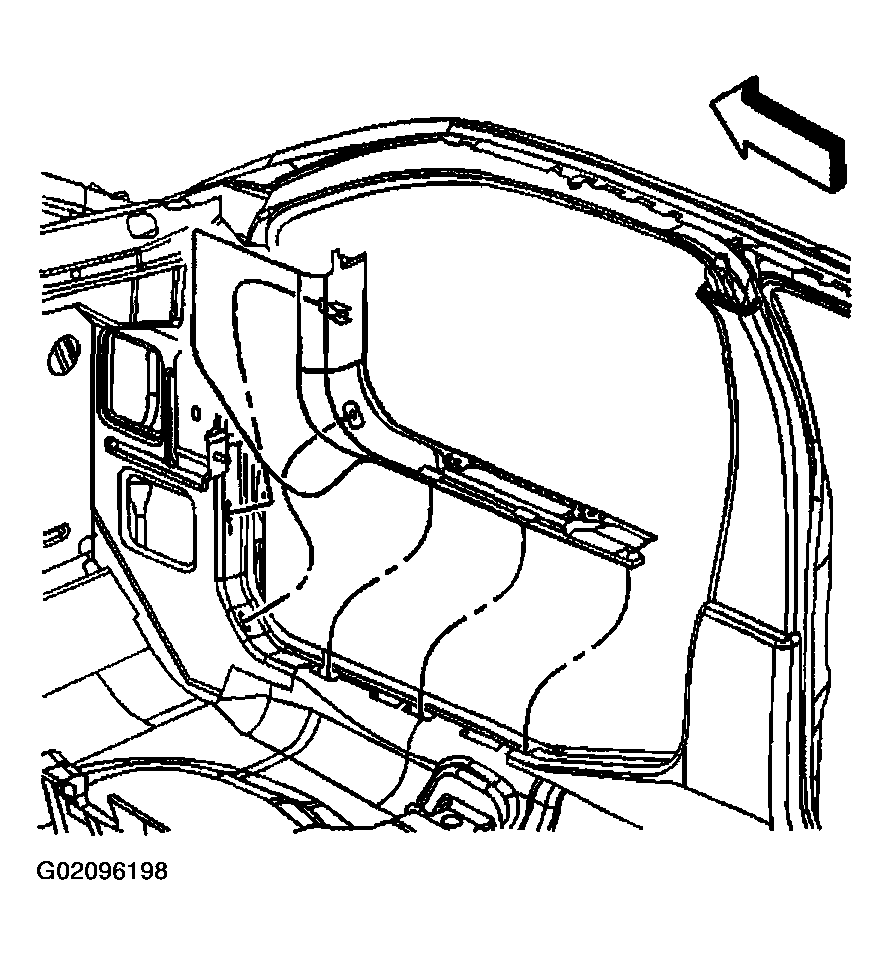

    Fig 1: Identifying Front Carpet Retainer
    G02096198Courtesy of GENERAL MOTORS CORP.
