Removal Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Grasp the top portion of the seat back trim panel and pull out to release the push-in fasteners.
  2. Firmly lift upwards to remove the seat back trim from the seat assembly.

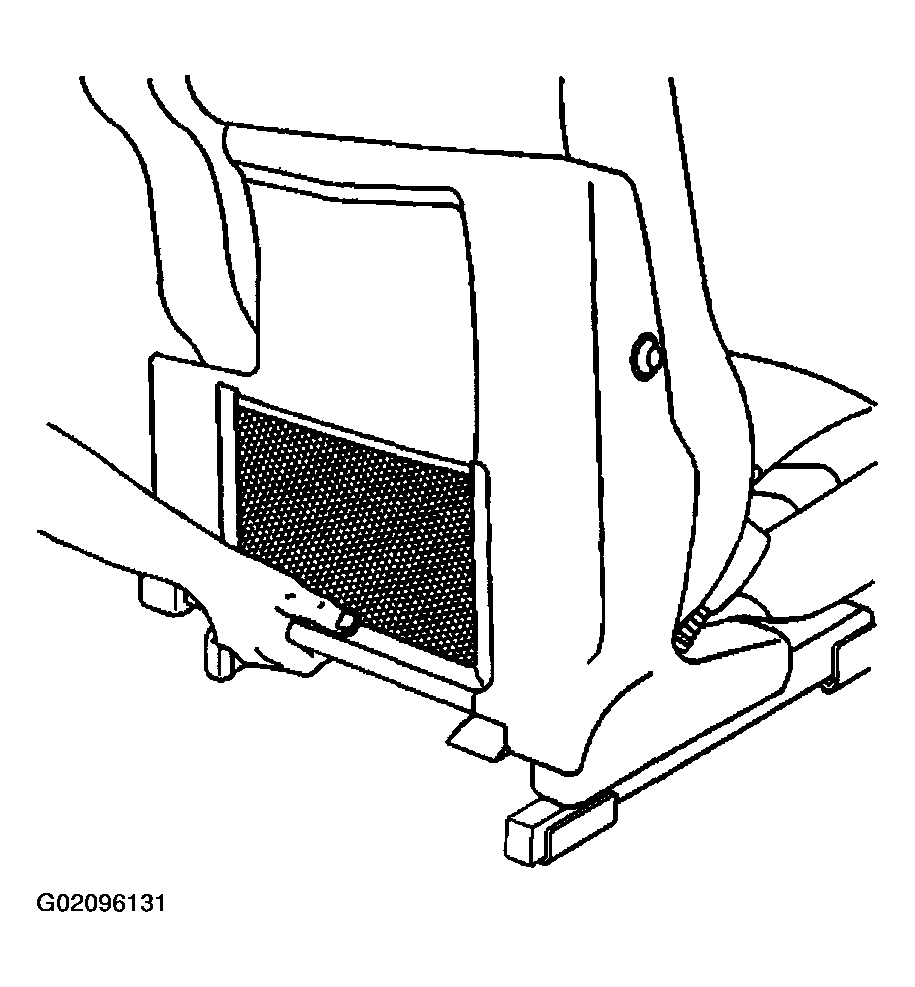

    Fig 1: Removing Seat Back Trim From Seat Assembly
    G02096131Courtesy of GENERAL MOTORS CORP.
