Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the lower hooks on the seat back trim panel to the seat assembly.
  2. Firmly push inwards on the top of the trim cover to secure the push-in fasteners.

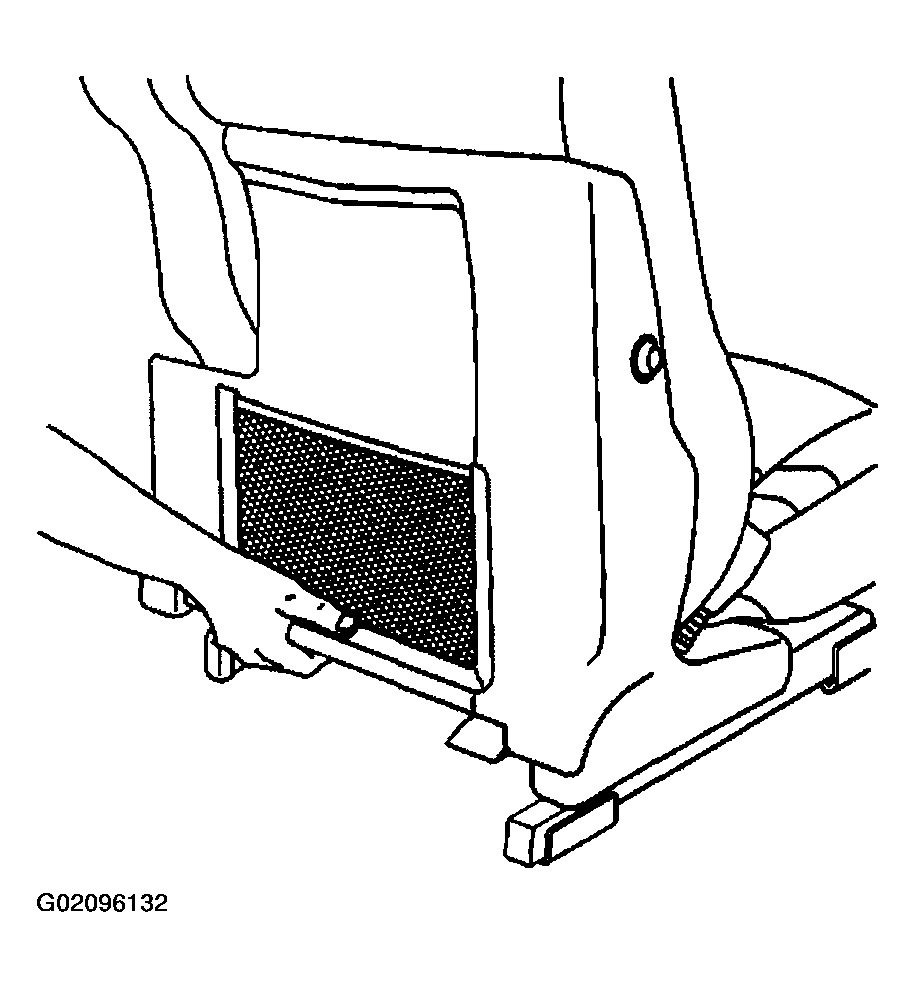

    Fig 1: Installing Seat Back Trim Panel To Seat Assembly
    G02096132Courtesy of GENERAL MOTORS CORP.
