Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the latch assembly into position. Rivet the latch into place.

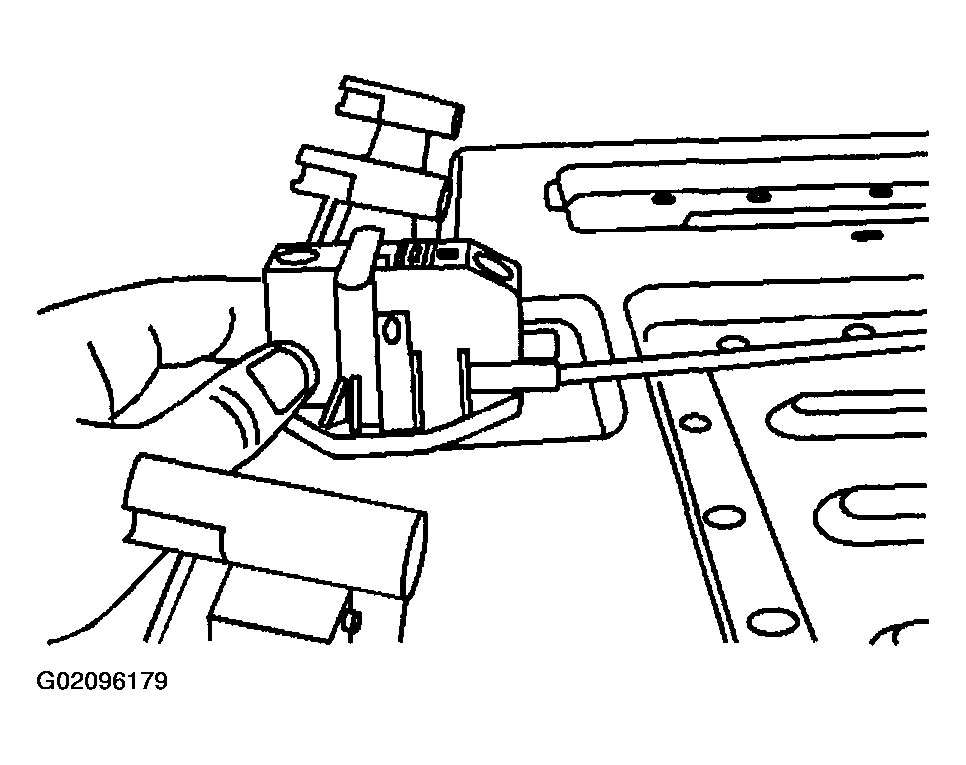

    Fig 1: Installing Latch Assembly Into Position
    G02096179Courtesy of GENERAL MOTORS CORP.
  2. Install the latch release cable into the retaining slot.
  3. Install the rear seat cover and pad. SEAT BACK COVER AND PAD - REAR SPLIT FOLDING  .

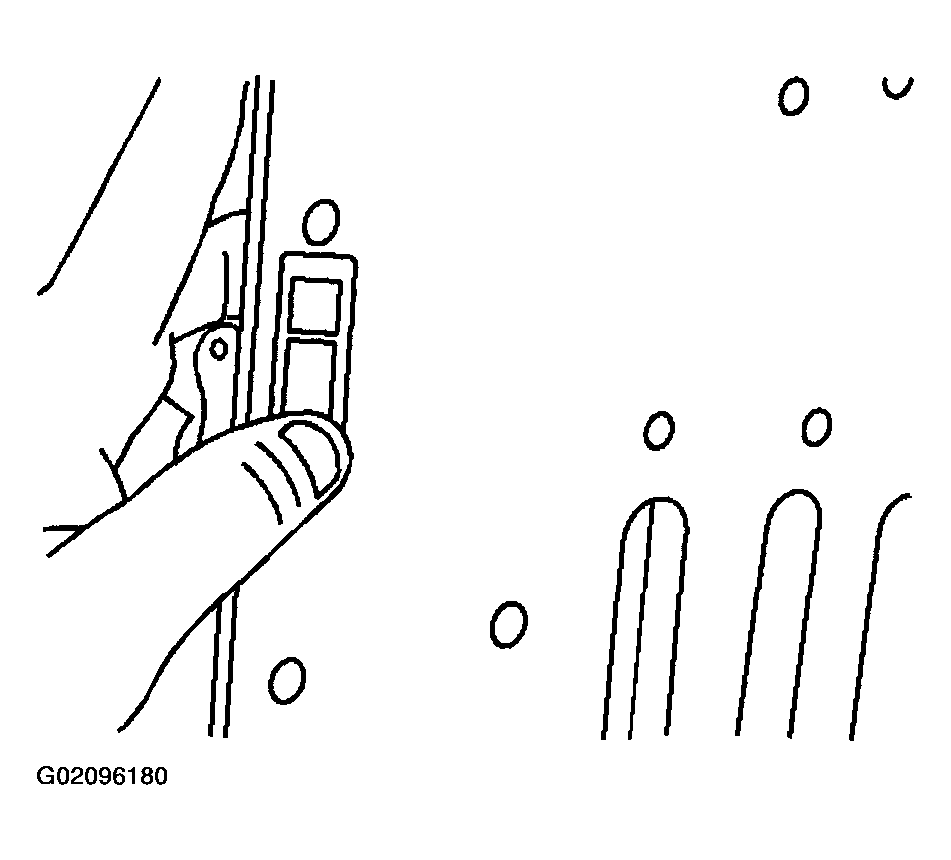

    Fig 2: Installing Latch Release Cable Into Retaining Slot
    G02096180Courtesy of GENERAL MOTORS CORP.
