Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Slide the recliner motor on to the shaft
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the recliner motor nuts (1).

    Tighten

    Tighten the nuts to 10 N.m (88 lb in).

  3. Install the electrical connector.
  4. Install the recliner position sensor. Refer to POWER RECLINER SENSOR REPLACEMENT - FRONT  .
  5. Install the seat into the vehicle. Refer to SEAT REPLACEMENT - BUCKET  .

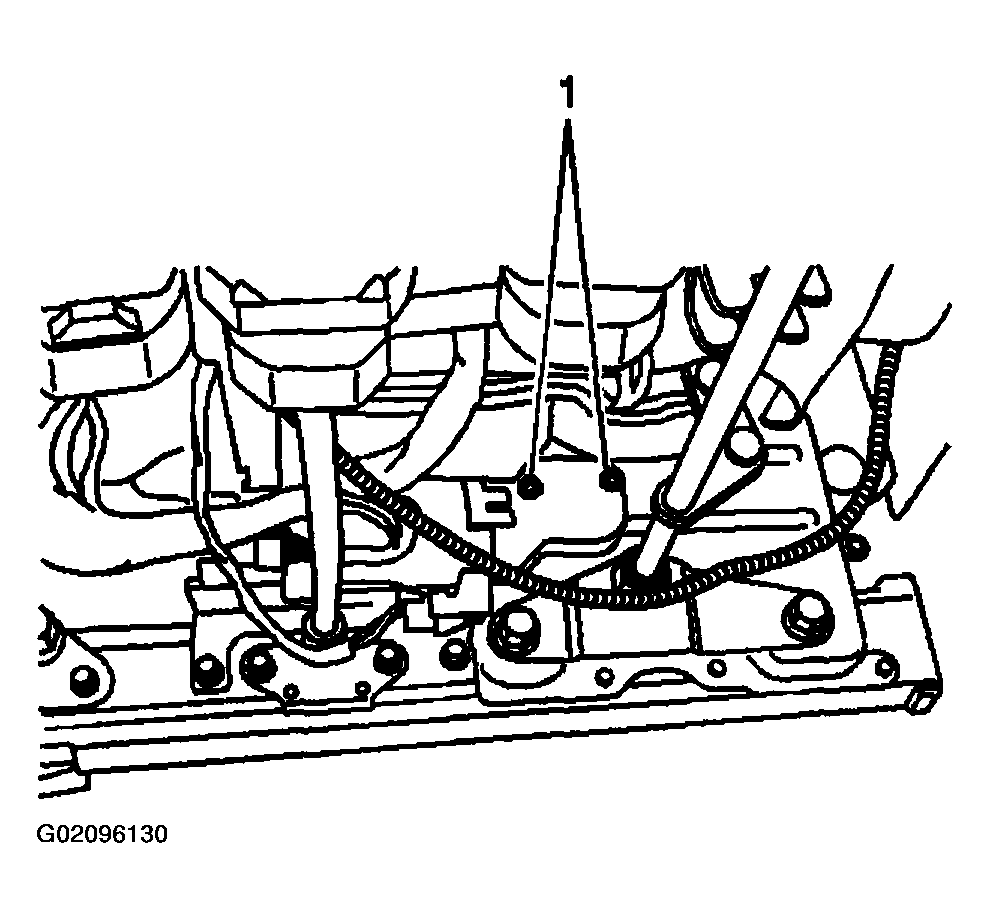

    Fig 1: Installing Recliner Motor Nuts
    G02096130Courtesy of GENERAL MOTORS CORP.
