Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat cover J channel (2) to the seat back frame.
  2. Install the seat back trim. Refer to SEAT BACK TRIM REPLACEMENT - FRONT  .
  3. Insert the head restraint retainer through the seat cover and into the frame.
  4. Install the head restraint. Refer to HEAD RESTRAINT REPLACEMENT - FRONT SEAT  .

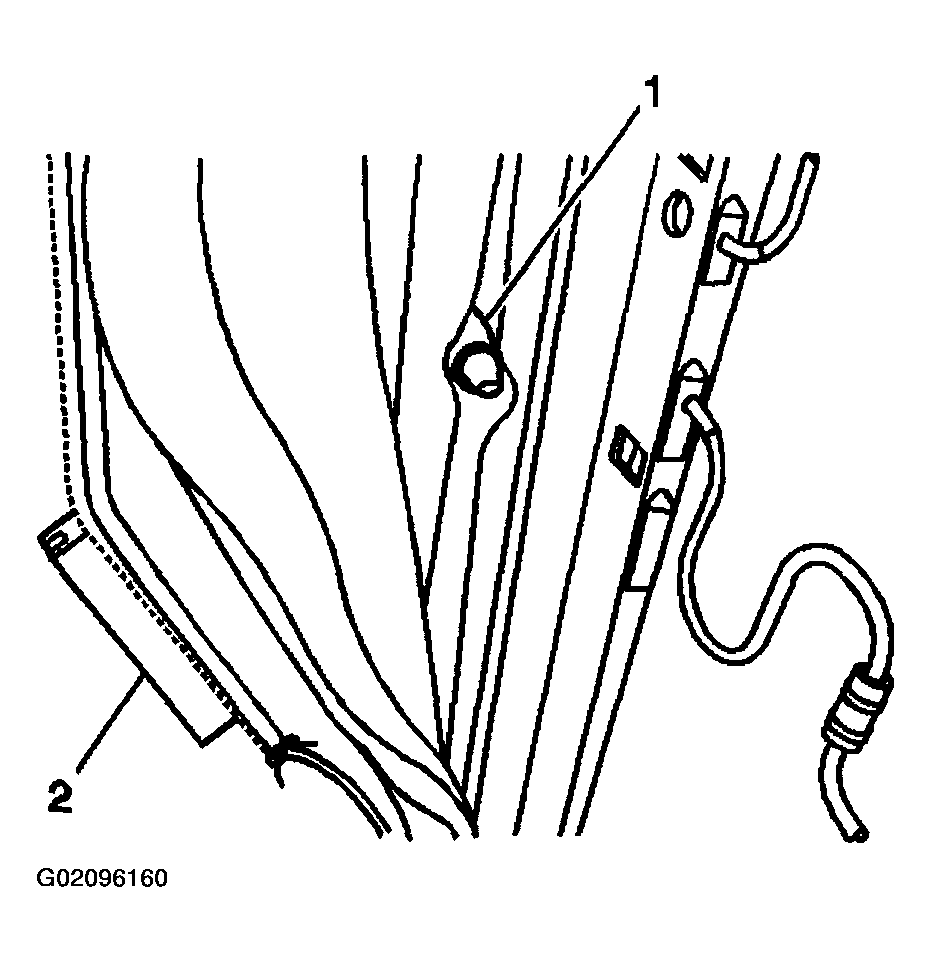

    Fig 1: Installing Seat Cover J Channel To Seat Back Frame
    G02096160Courtesy of GENERAL MOTORS CORP.
