Scan Tool Data List

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

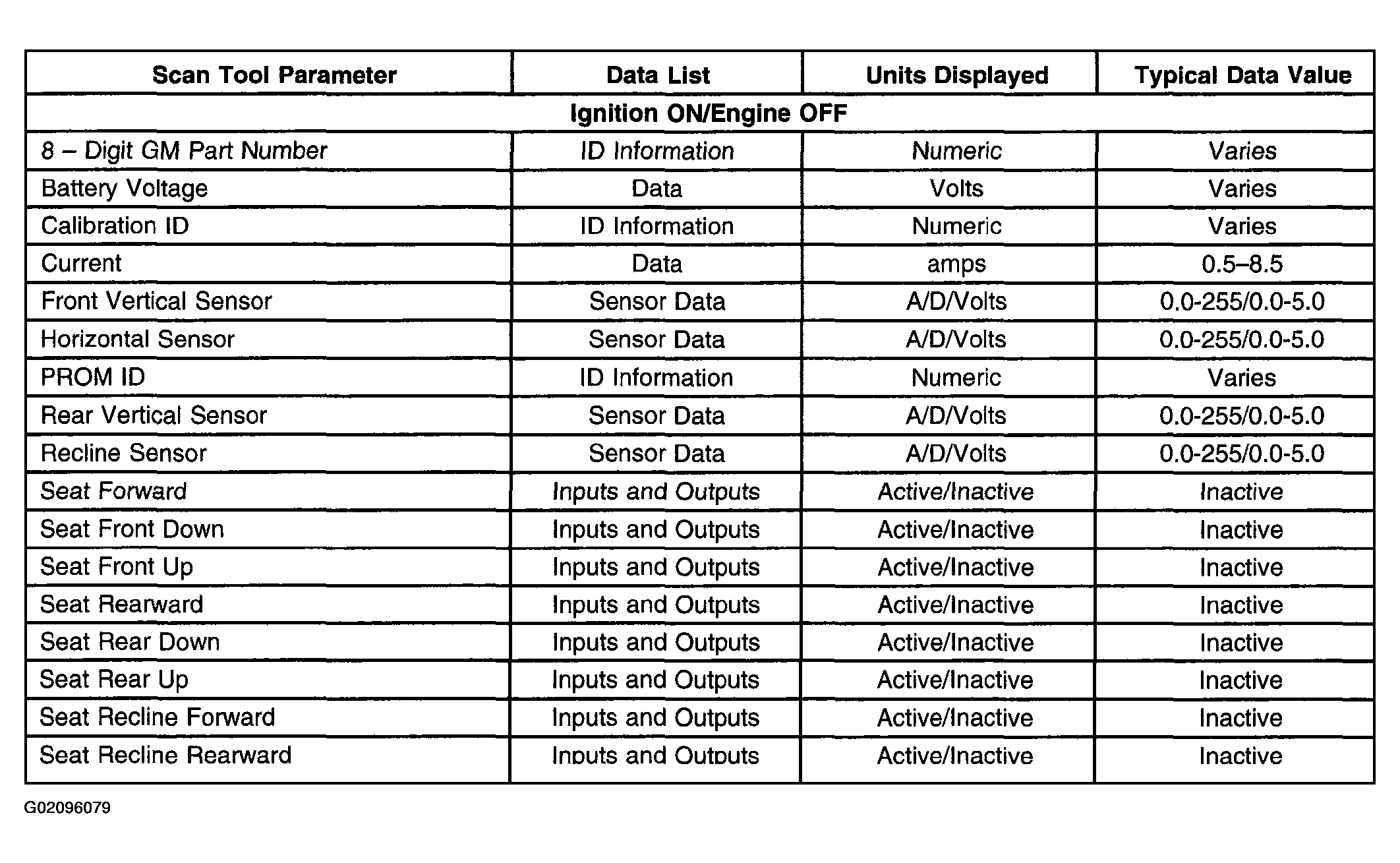

Fig 1: Scan Tool Data List (MSM)

Courtesy of GENERAL MOTORS CORP.

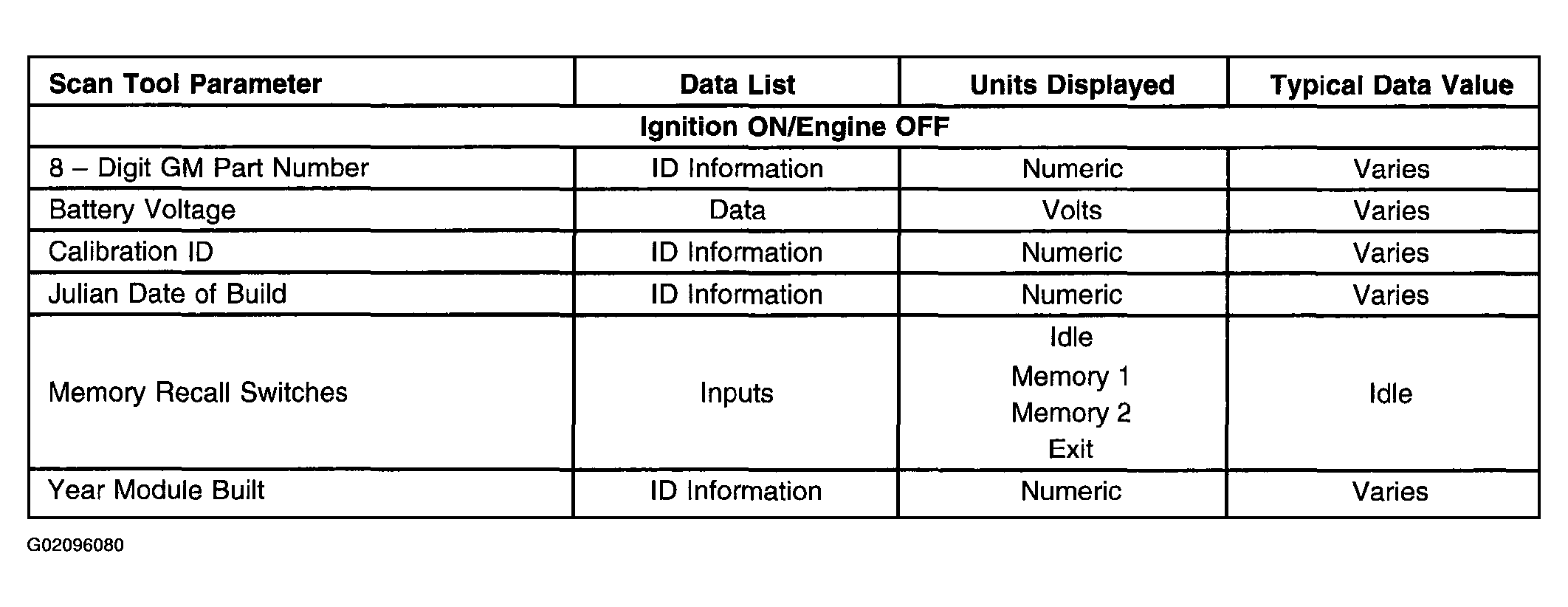

Fig 2: Scan Tool Data List (DDSA)

Courtesy of GENERAL MOTORS CORP.

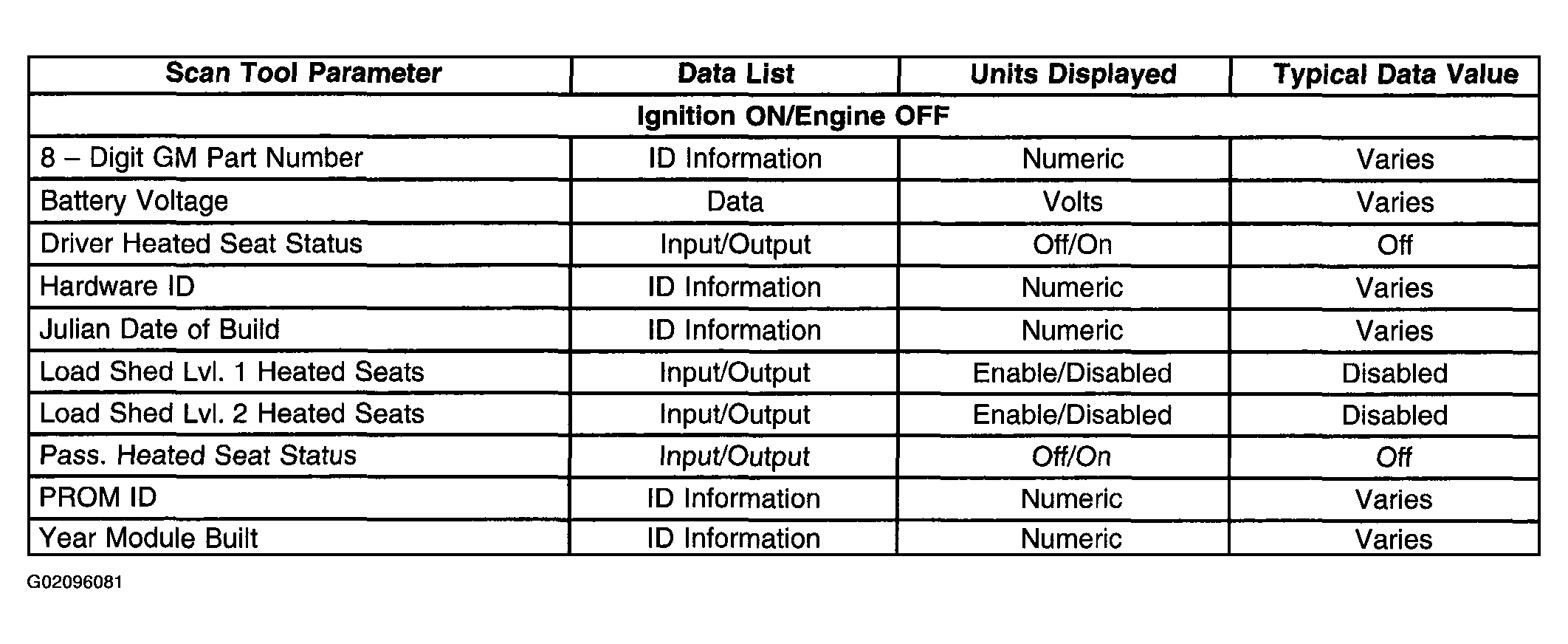

Fig 3: Scan Tool Data List (RIM)

Courtesy of GENERAL MOTORS CORP.

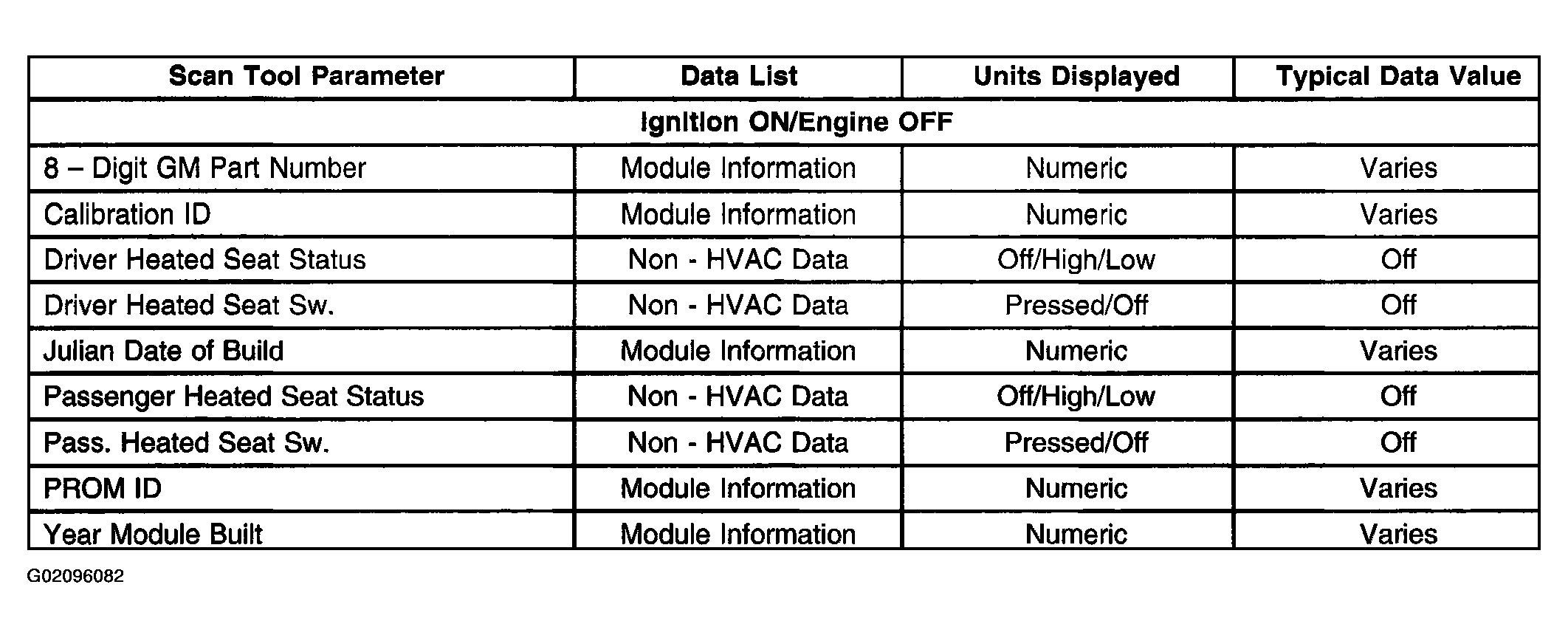

Fig 4: Scan Tool Data List (CCP)

Courtesy of GENERAL MOTORS CORP.
