Test Description

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 3. This step verifies that the personalization option is active.
  2. 4. Turning ON the headlamps in this step eliminates the possibility of the memory function switch finding an alternative path to ground through the illumination circuit.
  3. 7. This step tests the integrity of the memory 1 switch signal circuit of the driver door switch assembly. If the fuse in the jumper wire opens when you perform this test, a short to battery voltage may have occurred.
  4. 9. This step tests the integrity of the memory 2 switch signal circuit of the driver door switch assembly. If the fuse in the jumper wire opens when you perform this test, a short to battery voltage may have occurred.

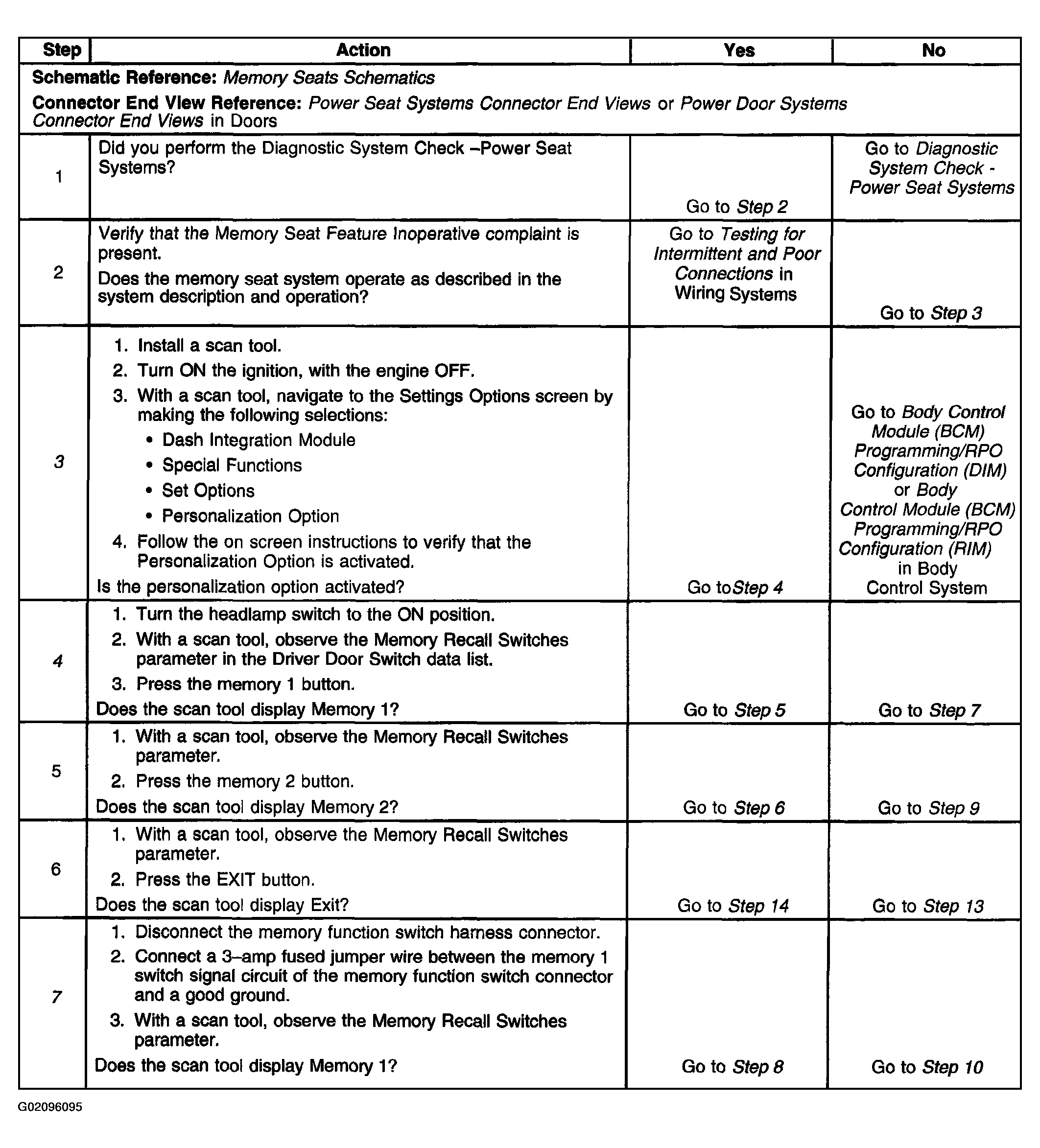

    Fig 1: Diagnostic System Check - Memory Seat Feature Inoperative (1 Of 2)
    G02096095Courtesy of GENERAL MOTORS CORP.

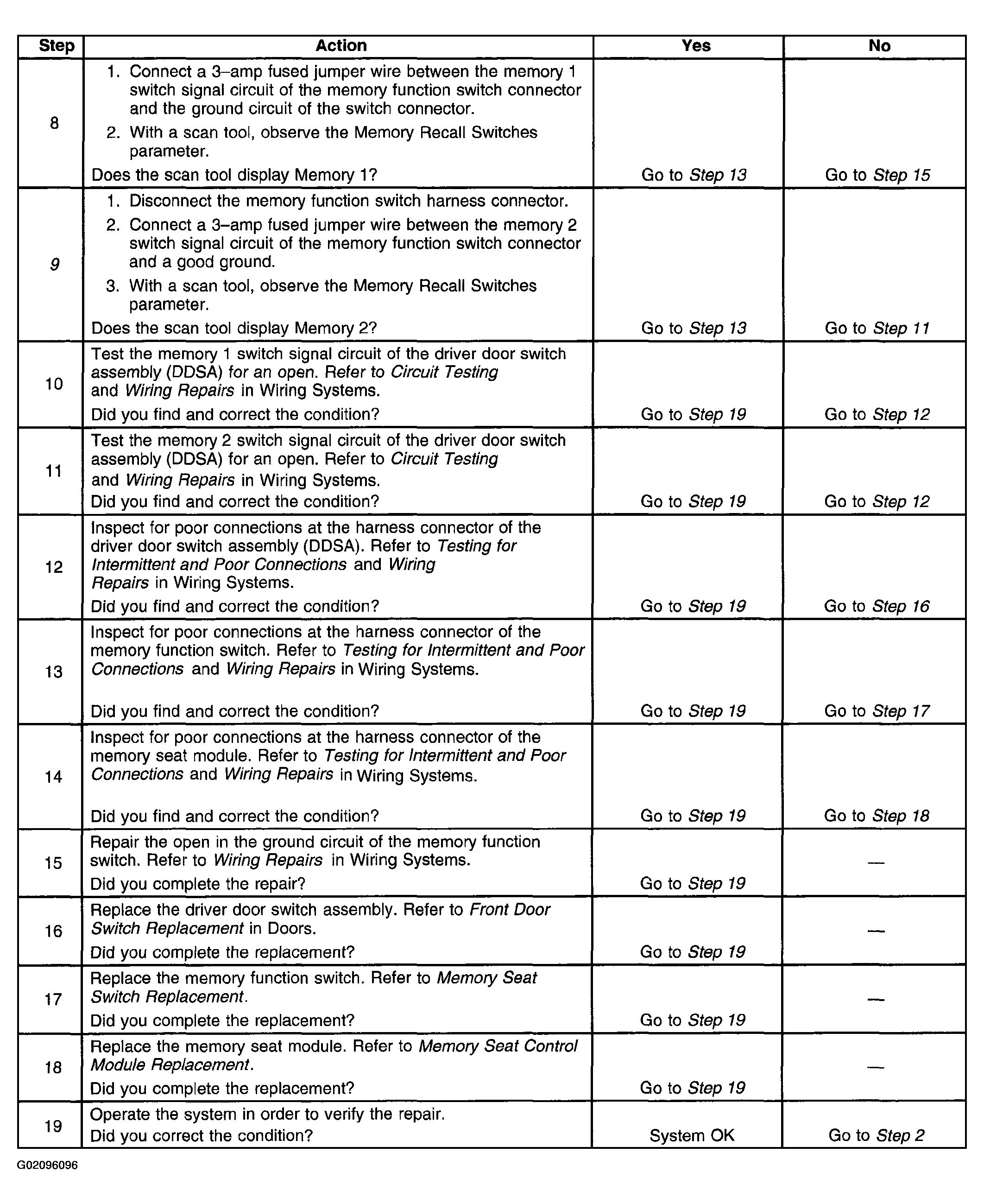

    Fig 2: Diagnostic System Check - Memory Seat Feature Inoperative (2 Of 2)
    G02096096Courtesy of GENERAL MOTORS CORP.
