Removal Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the bolts (1) that secure the hood latch to the vehicle.

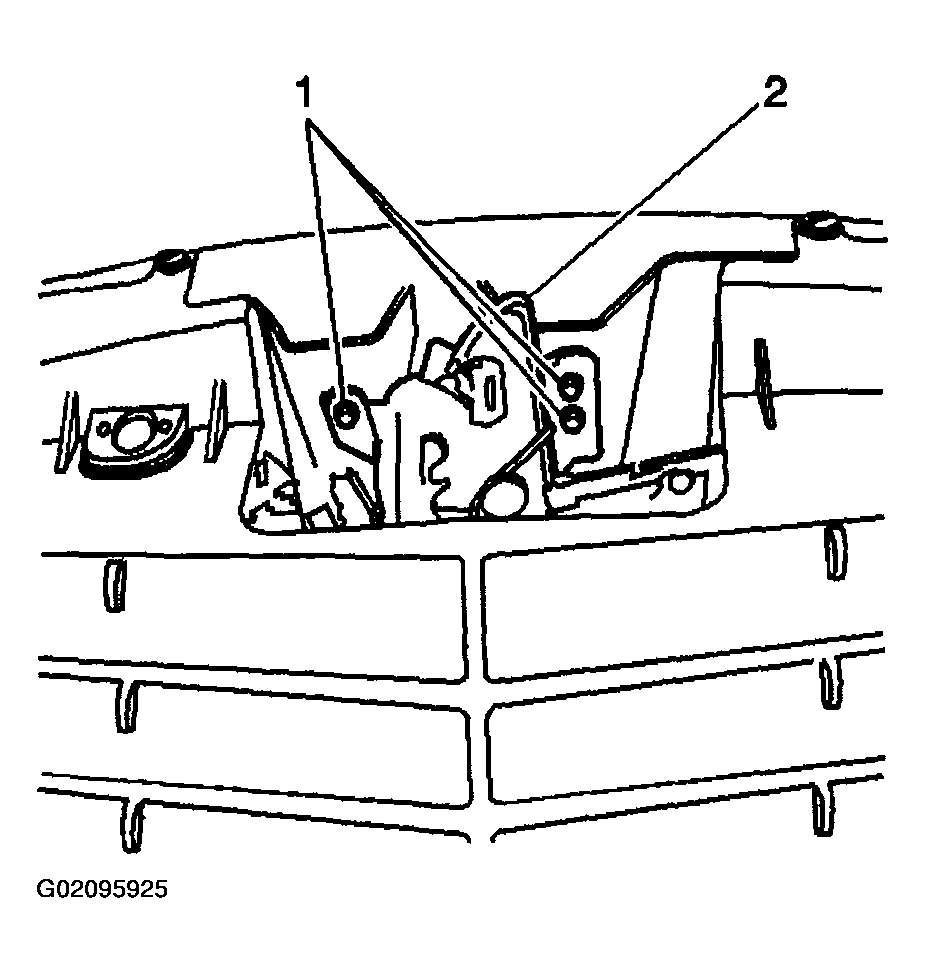

    Fig 1: Removing Hood Latch
    G02095925Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the hood release cable (1) from the hood latch (2).
  3. Remove the hood latch (2) from the vehicle.

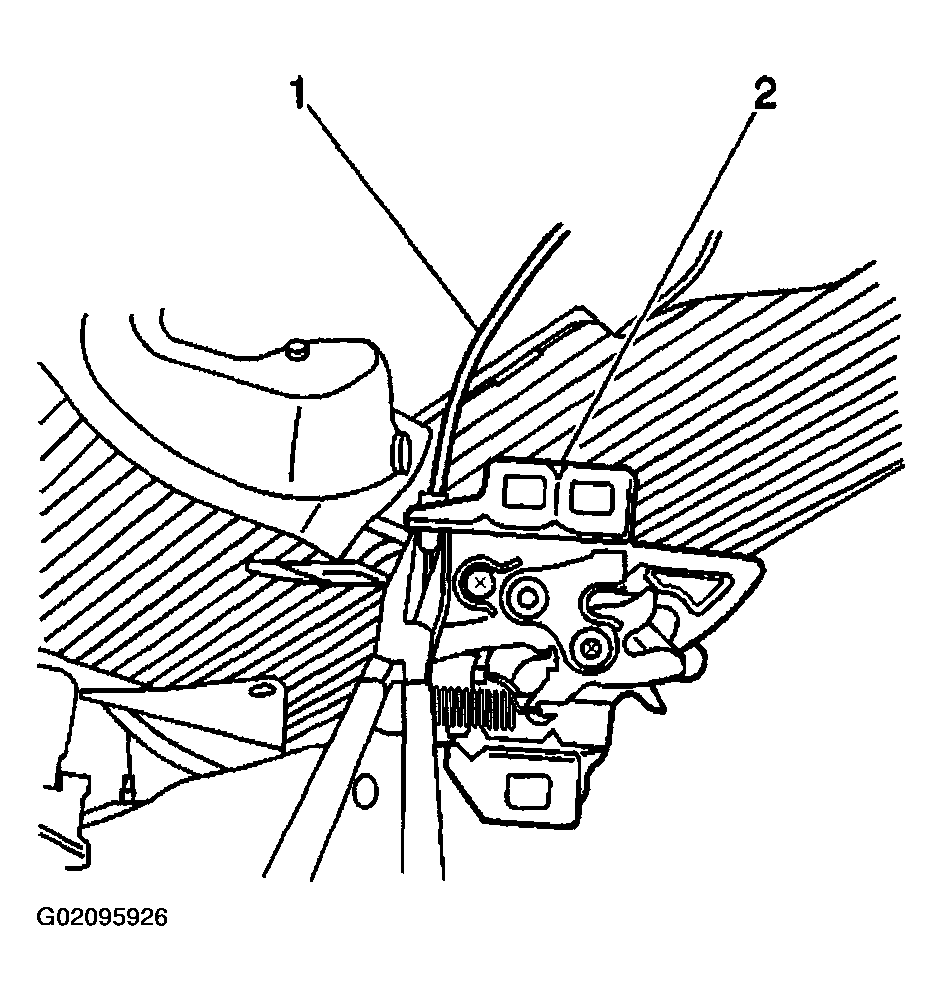

    Fig 2: Disconnecting Hood Release Cable
    G02095926Courtesy of GENERAL MOTORS CORP.
