Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the hood insulator to the hood.
  2. Install the push-in retainers in order to secure the hood insulator to the hood.
  3. Install the Front Hood Seal. Refer to SEAL REPLACEMENT - HOOD FRONT  .
  4. Close the hood.

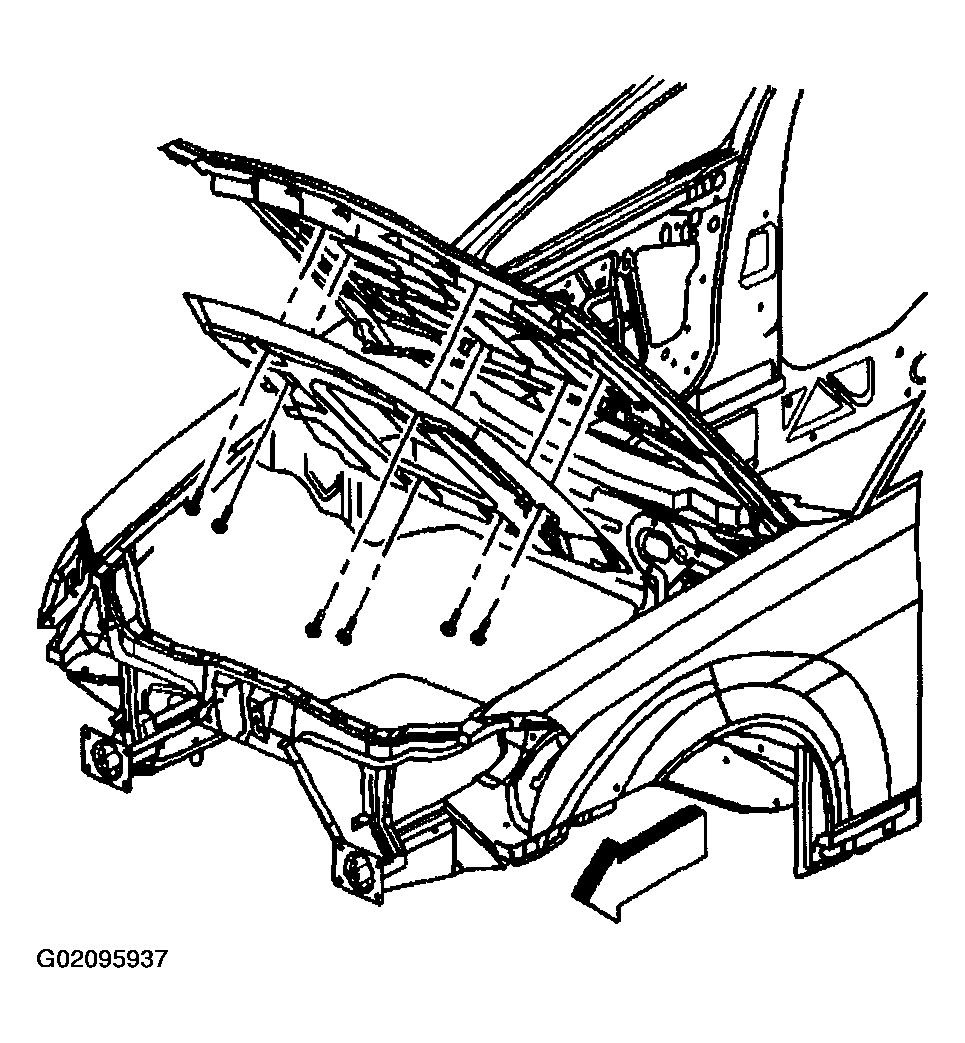

    Fig 1: Installing Hood Insulator To Hood
    G02095937Courtesy of GENERAL MOTORS CORP.
