Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the front fender sound insulator to the vehicle.
  2. Install the push-in fasteners in order to secure the front fender sound insulator to the vehicle
  3. Close the door.

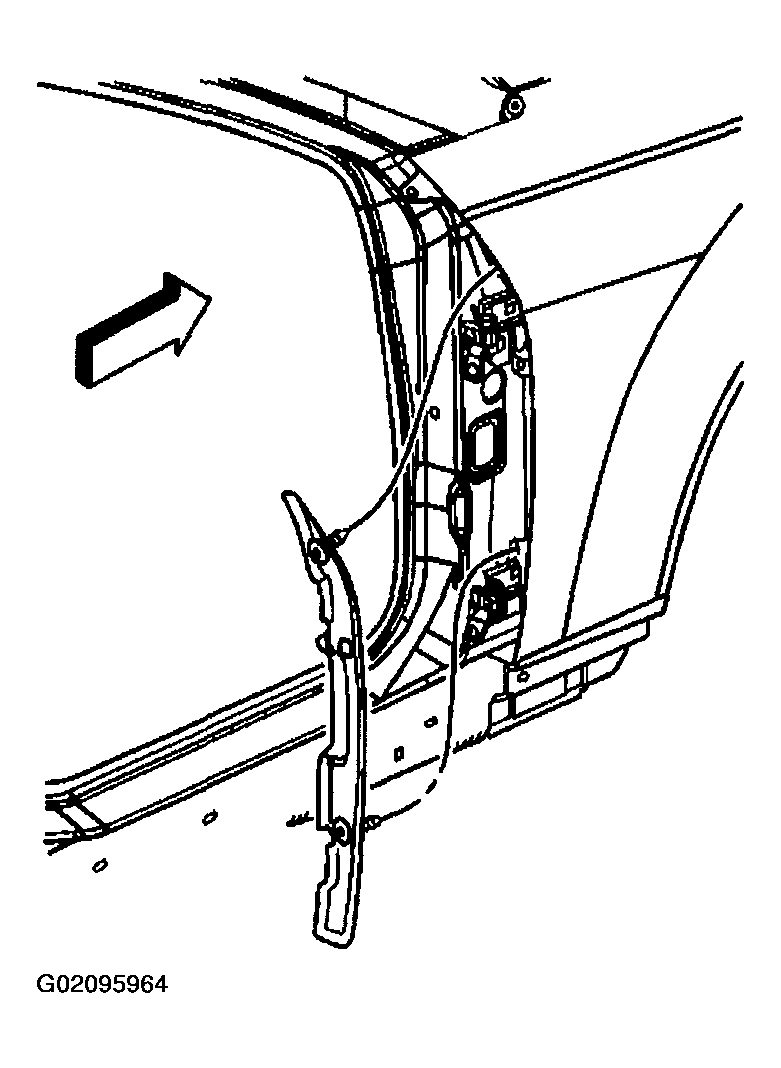

    Fig 1: Installing Front Fender Sound Insulator
    G02095964Courtesy of GENERAL MOTORS CORP.
