Removal Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the headlamp. Refer to HEADLAMP ASSEMBLY OR HEADLAMP BULB AND/OR CORNERING, SIDEMARKER, PARK, TURN SIGNAL BULB REPLACEMENT in Lighting Systems.
  2. Remove the hood. Refer to HOOD REPLACEMENT  .
    Fig 1: Removing Hood, Headlamps, Front Wheelhouse Molding And Rocker Panel Molding
    G02095947Courtesy of GENERAL MOTORS CORP.
  3. Remove the front wheelhouse liner. Refer to WHEELHOUSE LINER REPLACEMENT - FRONT  .
  4. Remove the rocker panel molding. Refer to MOLDING REPLACEMENT -- ROCKER PANEL in Exterior Trim.
  5. Remove the bolts (1) securing the lower front portion of the front fender to the vehicle.
  6. Remove the bolts (1) securing the lower rear portion of the front fender to the vehicle.

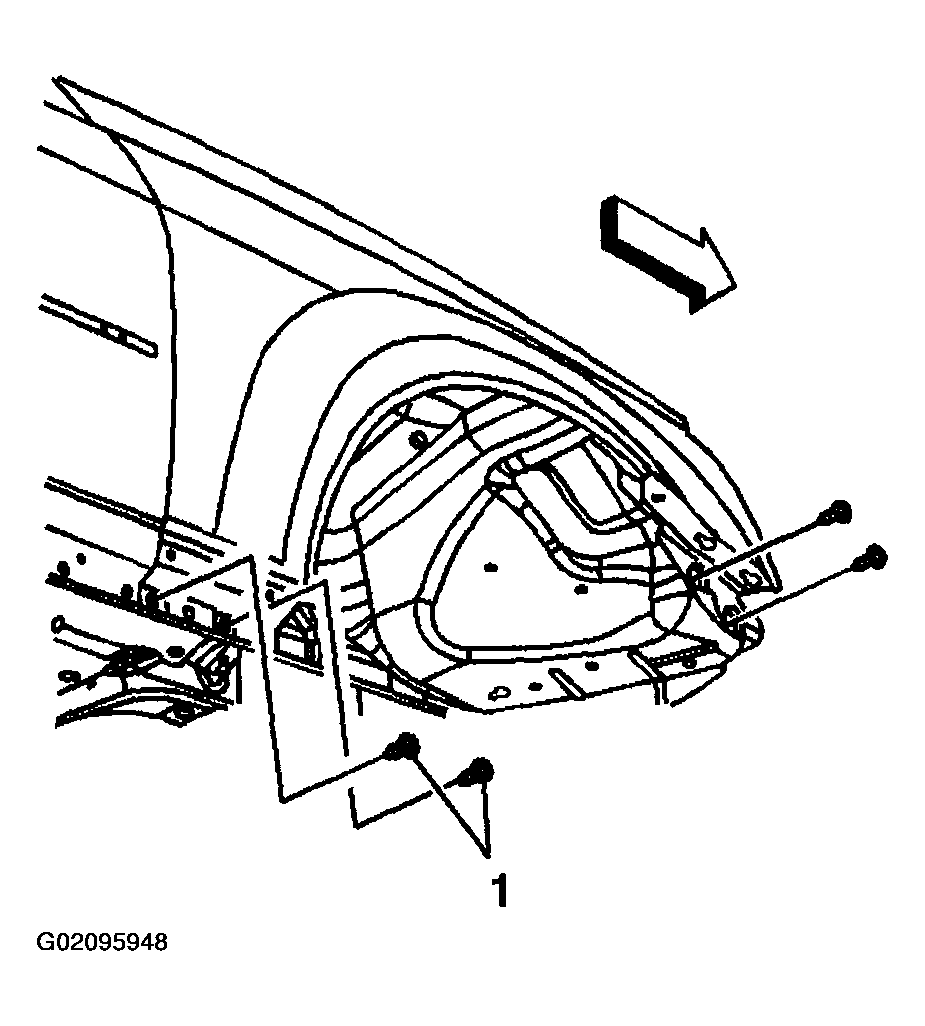

    Fig 2: Removing Lower Front And Rear Portions Of Front Fender
    G02095948Courtesy of GENERAL MOTORS CORP.
  7. Remove the bolt (2) securing the upper rear portion of the front fender to the vehicle.
    Fig 3: Removing Upper Rear Portion Of Front Fender
    G02095949Courtesy of GENERAL MOTORS CORP.
  8. Loosen the bolt on the inside of fender to door pillar.

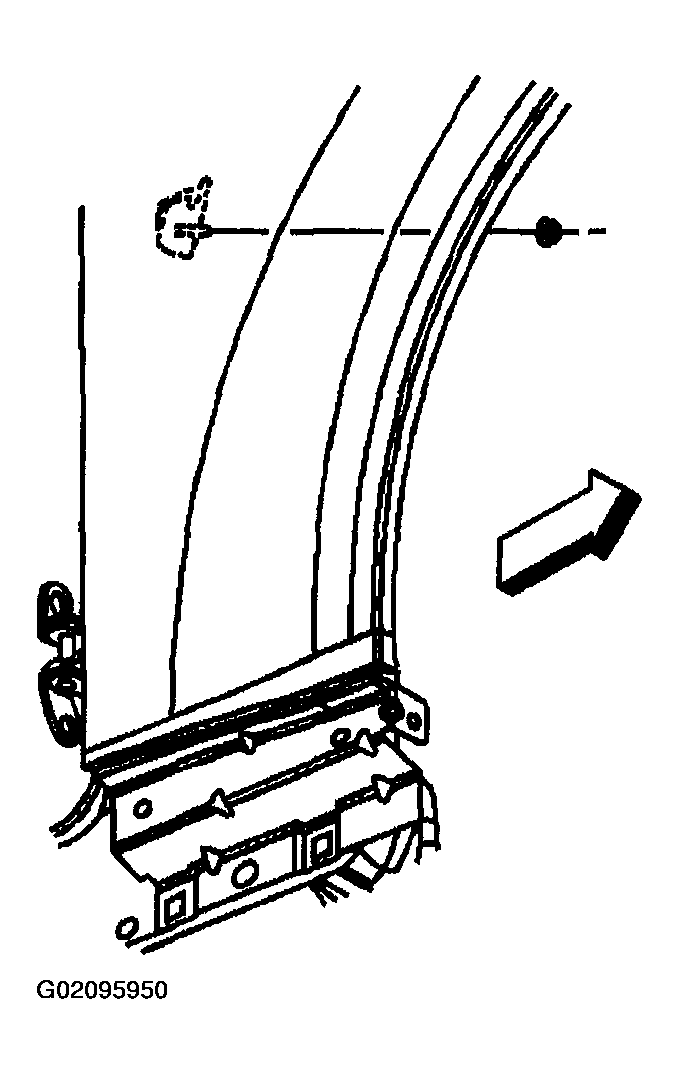

    Fig 4: Loosening Bolt On Inside Of Fender To Door Pillar
    G02095950Courtesy of GENERAL MOTORS CORP.
  9. Remove shield from upper portion of fender by depressing tabs (battery side only).

    Remove the bolts (1) securing the upper portion of the front fender to the vehicle.

  10. Remove the front fender from the vehicle.

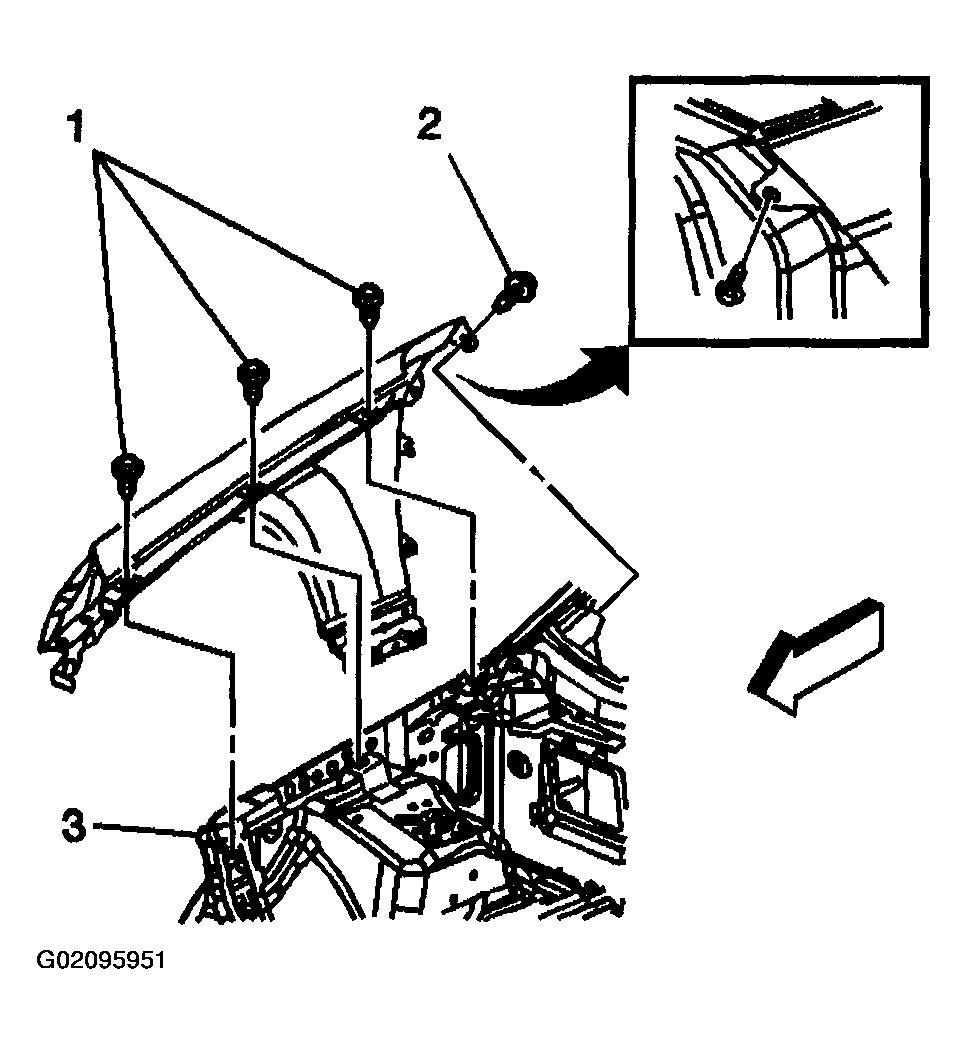

    Fig 5: Removing Front Fender From Vehicle
    G02095951Courtesy of GENERAL MOTORS CORP.
