Removal Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.
  1. Open and support the hood.
  2. Using a small flat bladed tool, release the clip retaining the hood assist rod to the lower assist rod ball stud (3).
  3. Using a small flat bladed tool, release the clip retaining the hood assist rod to the upper assist rod ball stud (1).
  4. Remove the hood assist rod (2) from the vehicle.

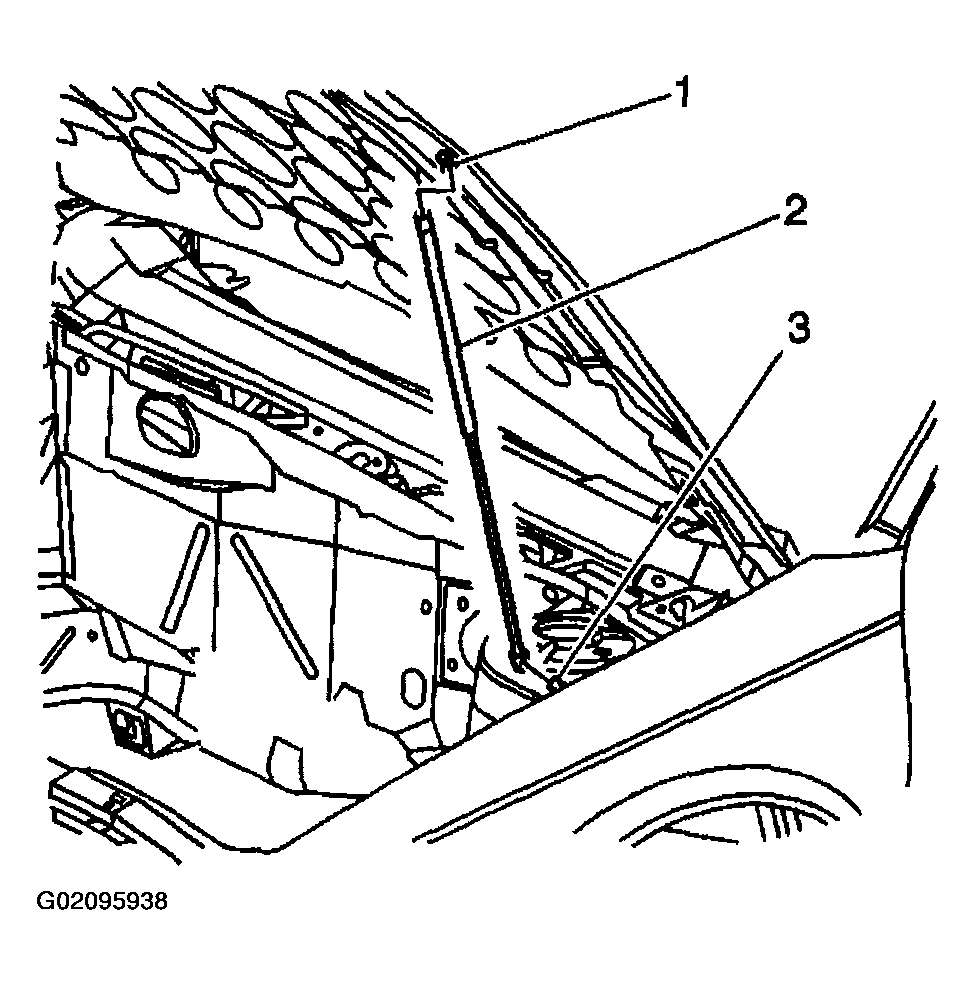

    Fig 1: Removing Hood Assist Rod
    G02095938Courtesy of GENERAL MOTORS CORP.
